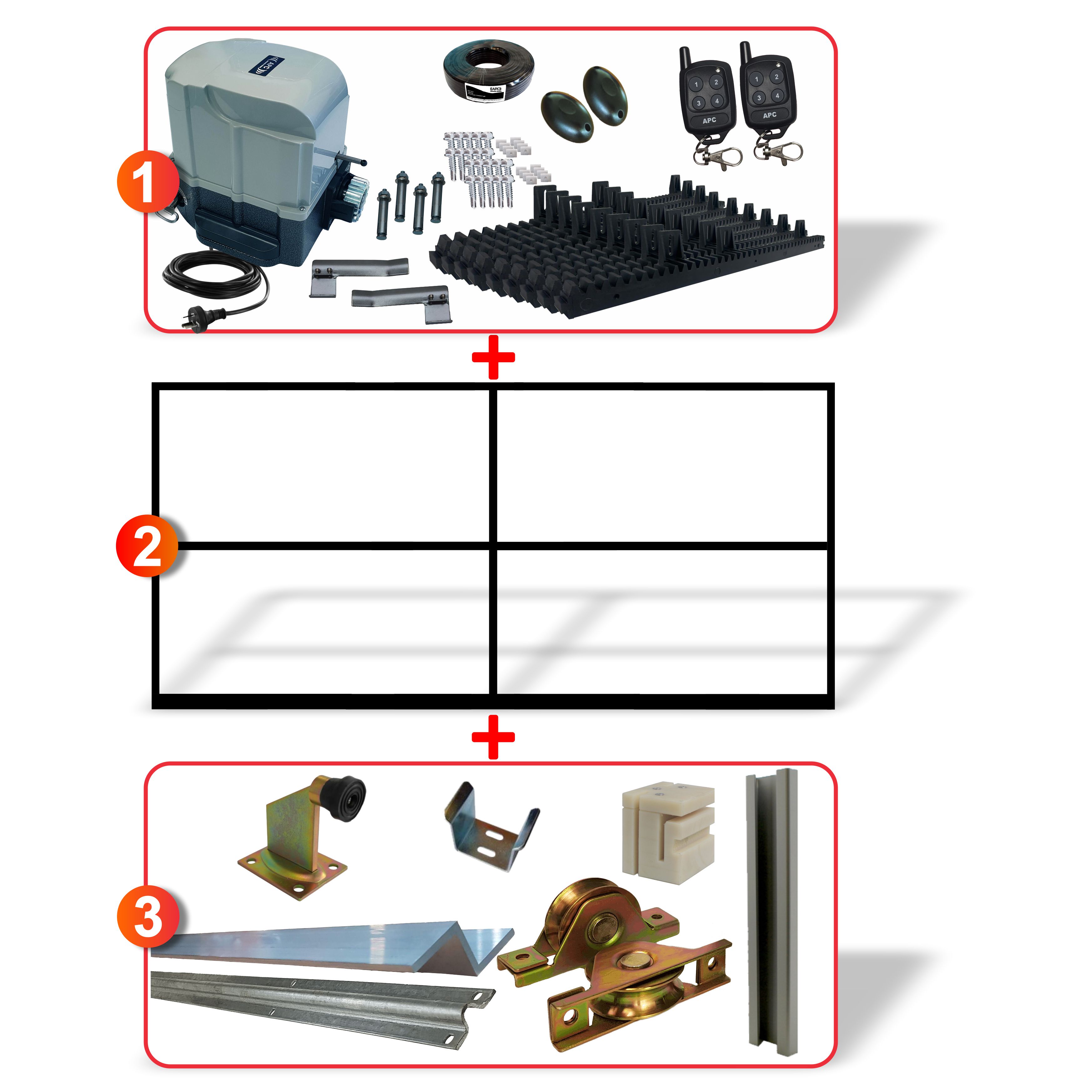

3m Gate Frame including Hardware + Heavy Duty 800kg Sliding Gate Automation System, Gate and Gate Opener Combo
Product SKU: GFR30-802-AC
In Stock
Freight Delivery
This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Add-On Items (Discounted when purchased along with this Kit)
Product Information
Gate Frame with Vertical and Horizontal Support Rails For Cladding
Suitable for Colorbond, Pickets, Paneling, Pailings, Decking Material and many more materials
Key Features
1500mm Height
Robust Satin Black Powdercoating
40x40mm Steel for Top & Sides
40x40mm Vertical & Horizontal Support Rails
80x40mm Bottom Rail
Completely Welded Throughout
Suitability
Sliding Gate Applications
Swing Gate Applications
Residential Use
Commercial Use
Typhoon 800 AC Sliding Gate Automation System with Soft Start & Soft Stop Feature
Strong & Durable
With its Soft Start/Soft Stop feature the APC Typhoon 800 brings the gate up to operating speed and down to a stop gently significantly increasing the motors operating life whilst decreasing the jolting movement incurred when the feature is not available.This feature can also simply be turned off if not required.
The 450W Internal motor allows for an 800kg capacity making it the ideal candidate for the majority of gate installations.
Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of remotes. Perfect for a simpler of no wiring needed installation.
All In One Motor Design
Ultra compact, sleek design and with some clever re-arrangement the APC Typhoon 800 is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in a ultra durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway
With separate open and close inputs as well as an shared open/close input the APC Typhoon 800 will support just about any wired accessory and can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.
Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.
Manual Override System
Rest easy knowing that even if the power is out the gate can still be operated by using the secure key override, once overridden the gate can be easily opened and closed by hand, once re-engaged the gate is locked in and 100% secure.
Metal Pinion & Cast Casing
Only the best parts are used to ensure an incredibly strong build quality from the robust cast alloy casing all the way to the one piece solid steel pinion gear no corners have been cut.
Motor and Base Plate Dimensions Including Pinion Height
Suitability
Sliding gate not exceeding 800kg maximum (Telescopic Gates Supported up to 200KG PER gate)
Sliding gate not exceeding 6m width maximum (Telescopic Gates Supported up to 2m PER gate)
A power point is required at the gate (or can be hardwired by an electrician)
Level ground installations or minor gradients
Specifications
Rated Power
450W
Power supply
220V-240V
Maximum Weight of Gate
800kg (Telescopic Gates 200KG PER Gate)
Maximum Width of Gate
6m (Telescopic Gates 2m PER Gate)
The working temperature of the motor
-5° ~ +65° C
Open (Close) speed
12m/min
Maximum Pull
22Nm
Voltage output
18V DC, Only devices with a parameter of 12-24V DC operating range can be connected to the system
Light output
240V Light, 30 Watts or Less
Accessories input
Open Only
Close Only
Open/Halt/Close
FAQ
Can I operate this sliding gate motor manually?
YES
The motor is fitted with a manual override and supplied with a key to manually disengage the motor
Can I use this system to operate a large gate?
YES
This system can handle a sliding gate up to 6m wide and 800kg in weight.
Are the motor & control panel all in one?
YES
Both the motor and the control panel are housed under one casing making the motor easy to install and very neat & compact
Can I use push buttons to operate this system?
YES
Both wireless & wired push-button switches can be used to open/close the gate motor
Can I use keypads to operate this system?
YES
Both wireless & wired keypads can be used to open/close the gate motor
Can I connect a safety sensor to this system?
YES
Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate
Can I connect an intercom system to this gate system?
YES
A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone
Can I operate this gate system from a remote location?
YES
A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location.
Does this gate system automatically close?
YES
When the automatic close timer is enabled and photoelectric safety sensors are installed, the gate will automatically close
Can I connect a light to the system?
YES
The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing.
How to Choose the Best Sliding Gate Opener (Australia)? | APC Gate Automation (Melbourne/Australia)
The best-sliding gate motors in Australia are often determined by factors such as reliability, durability, speed, access control, and customization options. Some top APC Sliding Gate Opener models to consider include:
APC Typhoon sliding gate motor with 240V power is strong, durable, and high-quality, suitable for residential and commercial sliding gates.
One of the best-sliding gate motors, the APC Typhoon 450W Internal motor, allows for an 800kg capacity, making it the ideal candidate for the majority of gate installations for domestic/industrial driveway gates.
If you are looking for the best sliding gate motors in Australia, several models should be considered. Some popular options include the Italian-made APC Proteous Sliding Gate Motor 24V DC series and APC Typhoon Sliding Gate Motor 240V AC series. These motors are known for their reliability, smooth operation, and advanced access control, safety features such as safety sensors, WiFi smartphone APP integration and much more. When choosing the best sliding gate motor, it's important to consider factors such as gate size, weight, power options (Grid Power 240V, External Transformer Low Voltage 24V and Solar Off-Grid)and intensive use.
You can get a free consultation from our help-desk professional to ensure the motor is the best compatible with your specific gate setup and requirements. Please call our highly experienced technicians for help finding the best-sliding gate opener to suit your requirements.
APC-PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
Up to 15 Metres Infared beam operating distance
Only powers on when the command is given to close the gates
Alignment led to assist in the installation process
