4 METER BOOM GATE
-
SALE
4 Meter Boom Gate Barrier with Remote Controls, Induction Loop Detectors and Retro Reflective Safety Sensor. Ultra High-Speed 24V DC APC V2 NUUR4, Universal Boom Barrier. Car Parking Secure Access Control System, Made in Italy
Product SKU: BG-NUUR4-DC-UM2
-
In Stock
-
Freight Delivery
This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Free Shipping
Kit Price:
$2,345.00
$2,852.00
Customise your Kit
Upgrades are available for following items
Add-On Items (Discounted when purchased along with this Kit)
APC V2 NUUR4 ULTRA FAST 24V Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control
Ultra-low power consumption. Suitable for solar-powered systems.
24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate
24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 4m width
Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR4, Universal Boom Gate Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy
- Accurate and safe operation with encoder
- Obstacle detection
- Self-learning of opening and closing times
- Slow-down in the limit switch area
- Balancing spring included
- White painted aluminium bar (accessory)
- Digital control unit programmable using three program buttons and display
- Plug-in adaptor for modular receiver
- ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
- Input for photocells with self-test function
- Input for mechanical safety edges
- Courtesy light output
- Holding magnet output
- Energy Saving function to minimise consumption in standby mode
- Programmable acceleration and deceleration
- Operation in case of absence of power using the backup battery
- Operation with solar power using the ECO-LOGIC system

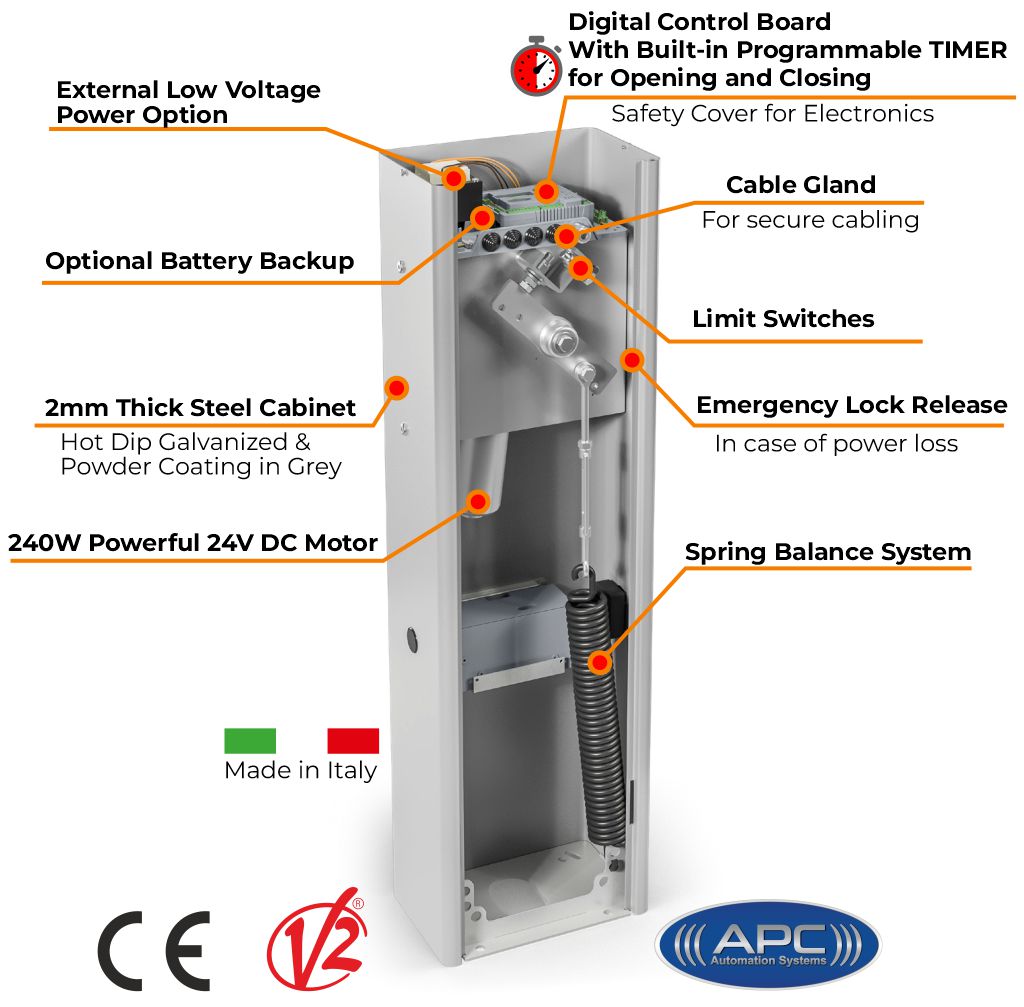

Motor Overview / Balancing Spring System
Technical Features
- Power supply (Vac - Hz): 230 V~ 50 Hz
- Motor power supply (Vac - Hz): 24 Vdc
- Maximum electric power (W): 300W
- Opening time (s): 3 Seconds for 4 Meter Boom Arm
- Working temperature (°C): Between -20° to +55°
- Duty cycle % - (max. cycles/hour): 80% - (300)
Control Panel
- Digital control unit programmable using three program buttons and display
- Plug-in adaptor for receiver
- ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP

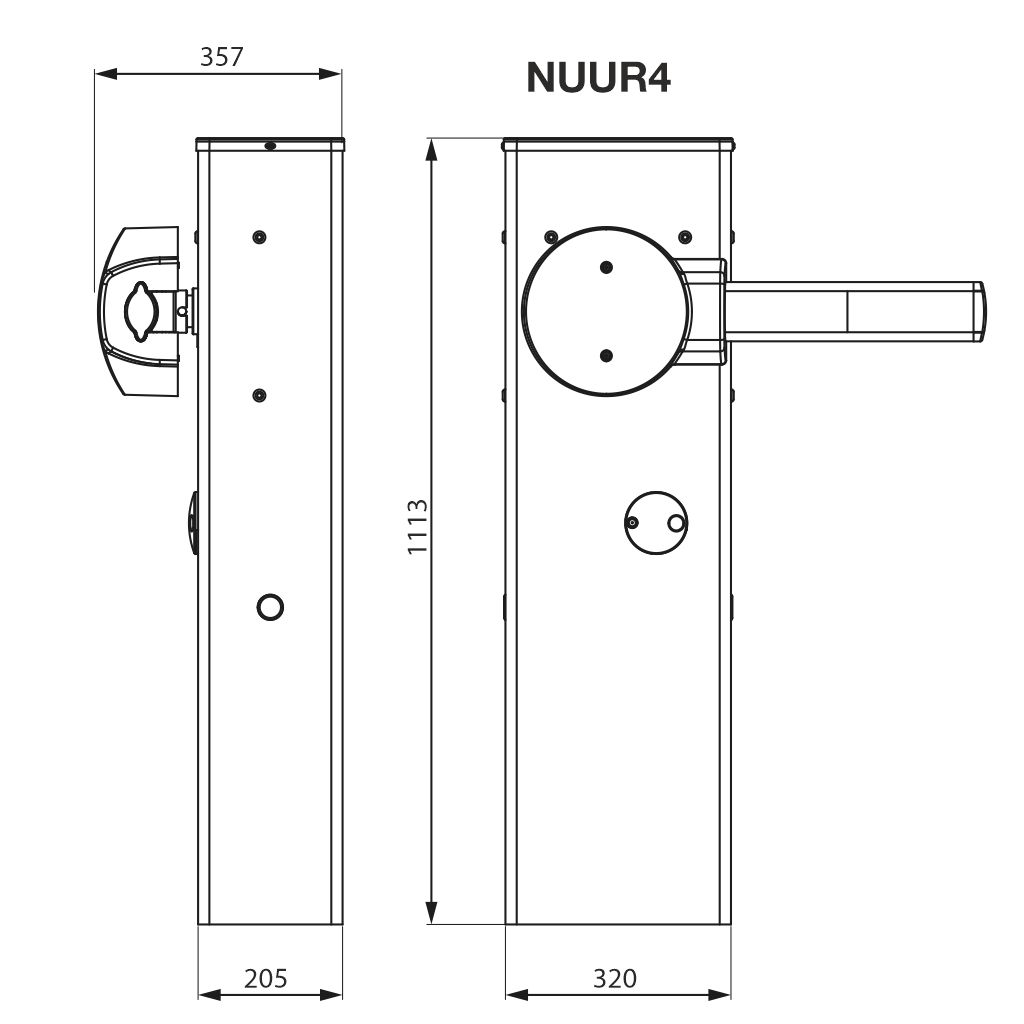

Dimensions
Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy
APC V2 NUUR4 Boom Gate System is Suitable to Use On Either Side.
Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR4, Universal Boom Gate Ultra High-Speed 24V DC, 4 Meter Barrier Made in Italy
Easy to Swap Right Side and Left Side Raise Arm Barrier Operator
APC Automation Systems FOUR Button Keyring Remote Control
Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.
Single Channel Loop Detector
The loop detector sensor module that is used wherever vehicles need to be detected to automatically trigger the system to operate. The loop detector module is installed within the system and is powered by the system itself.
From the loop detector module the supplied induction loop cable is fed and layered into a cutout in the driveway as per the illustration below. The system is supplied with a 40m roll of teflon insulated cable which can be upgraded to a larger roll if necessary based on the loop size and distance from the module.
Installation Example
Loop Dimensions
| Approximate Loop Sizes | |
|
Driveway Width
|
Loop Size
|
| 3m - 4.5m | 1.8m x 1.2m |
| 4.8m - 5.4m | 2.4m x 1.2m |
| 5.8m - 6.7m | 3m x 1.2m |
| 7m - 7.9m | 4.3 x 1.2m |
APC-RR-11 Retro Reflective Sensor
The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.
- Up to 11 Metres Infrared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment & Misalignment led to assist in the installation process
- Resin filled for the ultimate weatherproofing
Your Customised Kit Includes:
No Changes.
Have Questions?Talk to the Experts1800 694 283
Dispatched in: Within One
Business Day
