APC-KP1C Wired keypad with built in card reader
The APC-KP1C keypad is a waterproof low voltage keypad which is wired back to the control board using the supplied cable roll. It is of alloy construction and extremly robust. It can be seen day or night thanks to its backlit keys. Two EM swipe cards are also supplied suitable for any temporary or permanent user that need to gain access into the property without a pin code.
Key Features:
- Built in EM card reader.
- Robust cast alloy construction
- Resin filled for ultimate weatherproofing
- Blue Backlit keys
- Anti-tamper feature
- IP66 Waterproof rated and suited for outdoor and indoor environments.
- Up to 1000 users for pin code and EM card.
Wired Push Button with Isolation Key
The wired push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop use of the push button itself.
The push button is wired to the control board using the supplied cable roll. If required the button can be upgraded to a wired keypad for higher access security using pin number .
ML-280 Weatherproof Magnetic Lock
- 280KG Holding Force
- 12V and 24V Compatible
- Automatically will release on power loss (Fail Safe)
- Resin Filled and Weatherproof
- Dimensions: 220Lx42Wx25.5H(mm)

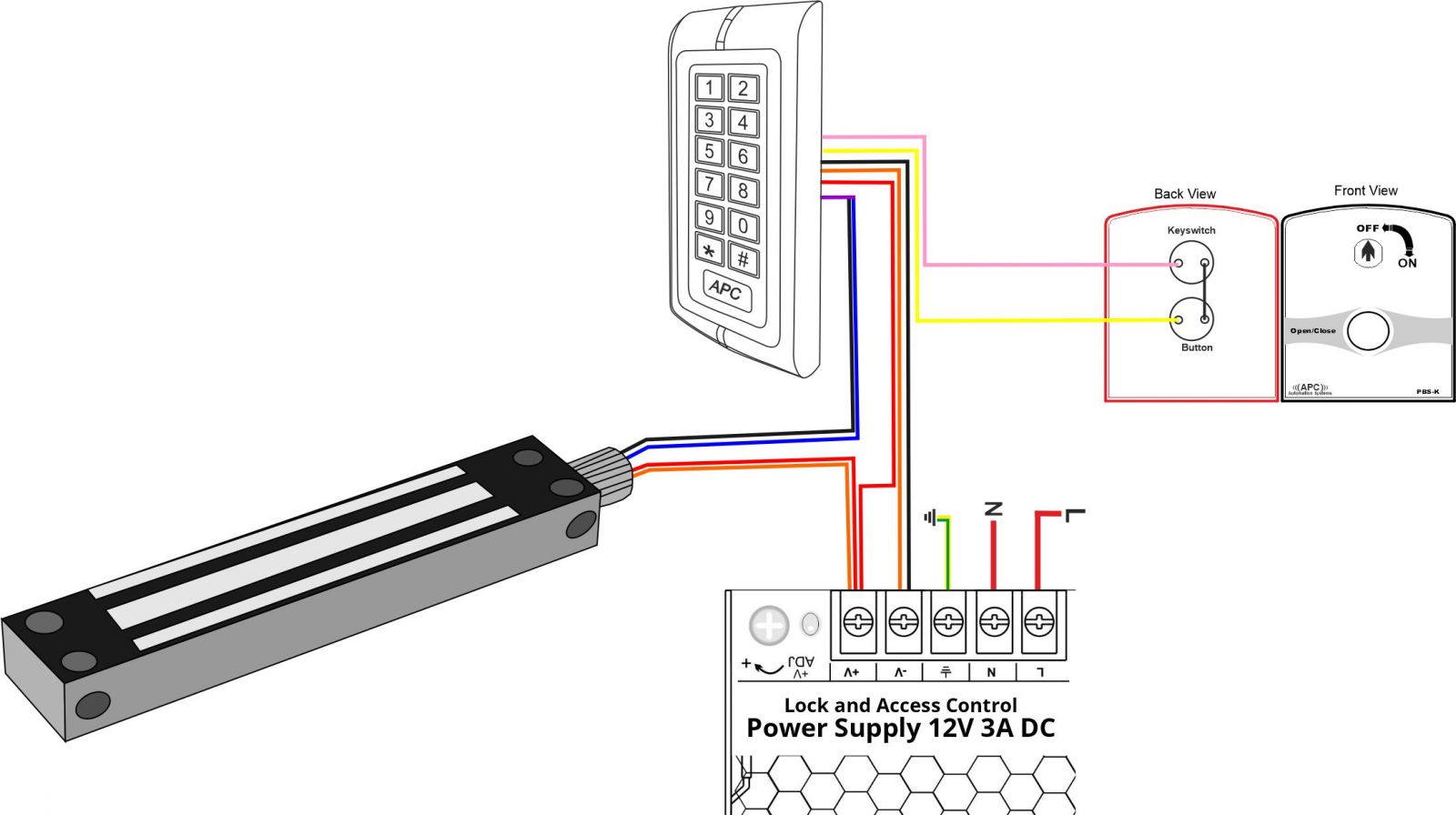

Wiring Diagram
12V DC Power Supply
Lock and Access Control Power Supply 12V 3A DC
LRS-35-12 Single Output Switching Power Supply 12V/3A Output
A 35W single-output enclosed type power supply with a 30mm low-profile design.
The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.
Brand: MEAN WELL
Weight: 350 Gr
SPECIFICATIONS
|
Input Type |
Single Phase |
Input Voltage |
85 ~ 264VAC |
Input Current |
0.42A / 230VAC |
Output Voltage |
12V |
Output Current |
3A |
Rated Output Power |
36W |
Output Type |
Single |
Output Voltage Adjustment |
10.2 ~ 13.8V |
Prescribed Electrical Item |
No |
SELV |
Yes |
Efficiency |
86.00% |
Operating Temperature Range |
'-30 ~ +70ºC (Refer to "Derating Curve" in Data Sheet) |
Warranty |
1 Year |
Approvals |
CE, CB, RCM |
IP Rating / Environmental Protection |
Less than IP65 |
Dimensions |
99*82*30mm (L*W*H) |
Recommended for New Designs |
Yes |
