Discreet Underground Wi-Fi System with Stainless Steel Top Plate, Wider Opening Angle, All Metal Gears and Suits Most Gate to Ground Clearance Heights

Product SKU: APC-UG2400C-LV-WF-e

  • Out Of Stock

Get More Info.. Get More Info..
Free Shipping Free Shipping

Kit Price:

$1,723.00

  • Or in 4 payment of $430.75 with afterpay info
  • High Speed, 24V System, 3m/200KG Each, Adjustable Bearing and Channel System

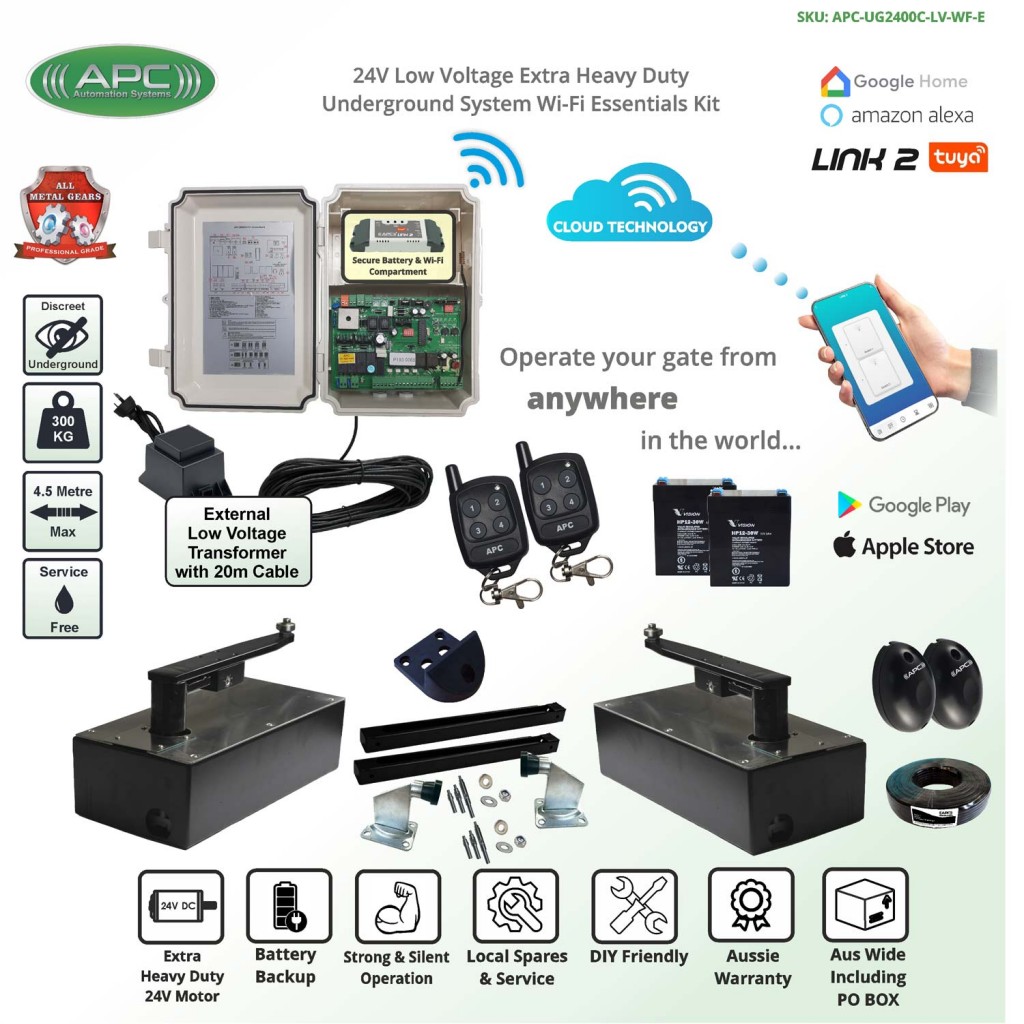

  • Kit Includes

    01 UG1400C Underground gate motor including bearings and channels(QTY: 2)
    02 APC Weatherproof Control Box with Built in Battery Compartment(QTY: 1)
    03 APC Four Button Keyring Remote(QTY: 2)
    04 5aH Battery Backup(QTY: 2)
    05 APC Link 2 WiFi Switch - DUAL Relay Wifi Remote Smart Switch Gate Garage Door Openers IOS and Android APP Control(QTY: 1)
    06 65mm High Centre Driveway Rubber Gate Stop with Steel Base(QTY: 1)
    07 115mm High Bolt Down Galvanized Gate Stop(QTY: 2)
    08 Weatherproof External 24V Transformer with 20m Low Voltage Cable(QTY: 1)
    09 Gate Sensor | APC Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector(QTY: 1)
    10 10m 4 Core Non Shielded Cable(QTY: 1)
    11 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order.(QTY: 2)
  • Out Of Stock

Customise your Kit

Upgrades are available for following items

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Extra Heavy Duty Discreet Underground System

Reliability & Durability


The discreet extra heavy duty 24V DC motor is a powerful unit built from all metal components including its powdercoated foundation box and stainless steel top plate, internally the motor is constructed of all metal gears with a thick and strong motor output drive.

Designed in Australia, the extra heavy duty motor is for underground installations to cater for installs where there is no space above ground for mounting a motor or for installs where the user does not want the motor above ground. Furthermore it is highly flexible in its installation methods allowing for multiple diffrent orientations and positions.

Thanks to its all metal gears this Tough and Robust system can handle large gates up to 3m width or 200kg in weight each gate.



Drainage and Conduit Holes






With a drainage hole on either side of the foundation box it can be easily plumbed to to a pit or storm water to ensure the box is never filled with water. There is also a higher position hole for the cabling from the control box to the motor.



Powder Coated Arms and the Manual Override System




The powdercoated steel linking arm which connects the motor output shaft to the drive channel and allows operation of the gate by the pivot motion.
This is achieved with the supplied bearing gliding through the powdercoated drive channel, furthermore to ensure compatibility regardless of the gate to ground clearance height three different choices of bearing height adjuster are supplied.

The easy to use manual override can be used from either side since the gate motor is a universal left/right side fitting. Simply unlock with the manual release allen key and the gate will be free and can be opened and closed manually in the case of an emergency



Powder Coated Channel




The powder coated steel drive channel bolts onto the gate (can also be welded), and allows for the bearing from the linking arm to slide through and create the pivot motion of the gate through its operation.

The internal slide stops that are supplied will fit within the channel at either end and are tightened from underneath for a clamping effect to prevent over travel of the gate system.



Motor Dimensions and Installation





Pulling to open (opening inwards) can be set to open each gate up to 120° (maximum recommended) however 130° to 160° is achievable as with underground systems there is no concern regarding the motor clashing with the gate.





Adjustable in drive channel stops are supplied with the kit if a completely discreet stop is preferred but can only be used up to a maximum of 100° open angle. External gate stop is also provided in this kit and are required for the open angle greater than 100°







Installation Method 1







Recommended option and the easiest on the operator will allow for 120°+ operation





Center pivot of gate motor (output shaft) inline with the center of the gate pivot point (hinge), arm is at a 45° angle to the drive channel/gate









Installation Method 2





Maximum 100°, if option 1 cannot be used. Preferred over option 3





Center pivot of gate motor (output shaft) offset from the center of the gate pivot point (hinge) by up to 200mm, arm is at a 45° angle to the drive channel/gate









Installation Method 3





Maximum 90°, Hardest on the operator and should only be used in special circumstances as required.


Center pivot of gate motor (output shaft) offset from the center of the gate pivot point (hinge) by up to 200mm, arm is at a 20° angle to the drive channel/gate.









Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:



Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security



System Features

Low Voltage Transformer with a 20m Cable (extendable up to 80m)

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button
Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.




Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output





Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.



Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric & Magnetic Lock Output



Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)



External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.





Battery Back Up





Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.

Remote Features

Specifications



Power Input 24V AC (240V to 24V Transformer Pre wired with 20m Cable)
Transformer 24V AC
Rectification On Board Bridge Rectifier
Motor Output Voltage 24v DC
Battery Backup 24V
Working temperature -10° - 50°
RF APC Rolling code 433.92mhz
Lock Output (Primary) 12-30V DC (Depending on Configuration)
Lock Output (Secondary) 12V DC
Auxiliary Inputs 0V Momentary Pulse
Accessories Voltage 24V DC
Over current 1A to 5A

65mm Rubber Gate Stop







The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.



65mm Rubber Gate Stop Dimensions





Galvanized Gate Stop






  • Galvanized steel construction for long life outdoor use

  • 115mm Height

  • 40mm Rubber bumper

  • Solid 100x80mm base

  • Pre-punched 10mm fixing holes



Two Channel WiFi Control Switch









  • 7-32V AC & DC Compatible
  • Operate Full gate and Pedestrian Function through the APP
  • Operatable ANYWHERE in the world using Apple devices (iOS) and Android Devices using Tuya APP
  • One Master User (Administrator) and unlimited regular users
  • Allows for manual operation and/or scheduled operation of both system features
  • Ultra Low power consumption of 20mA
  • Requires good WiFi connection at its installed location



APC-PE2000 Photoelectric Safety Sensor Set



The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.

  • Up to 15 Metres Infared beam operating distance

  • Only powers on when the command is given to close the gates

  • Alignment led to assist in the installation process

  • Weather sealed with the supplied cover seals

  • Easy screw down wiring termination


  •
