Singular 68mm Flat Mount Wheels

Product SKU: GWFM-68-1

  • In Stock

Price :

$18.00

Get More Info.. Get More Info..

Product Information

68mm 2 Flat Mounted Wheels68mm Flat Mount Sliding Gate Wheel | Sliding Gate Hardware

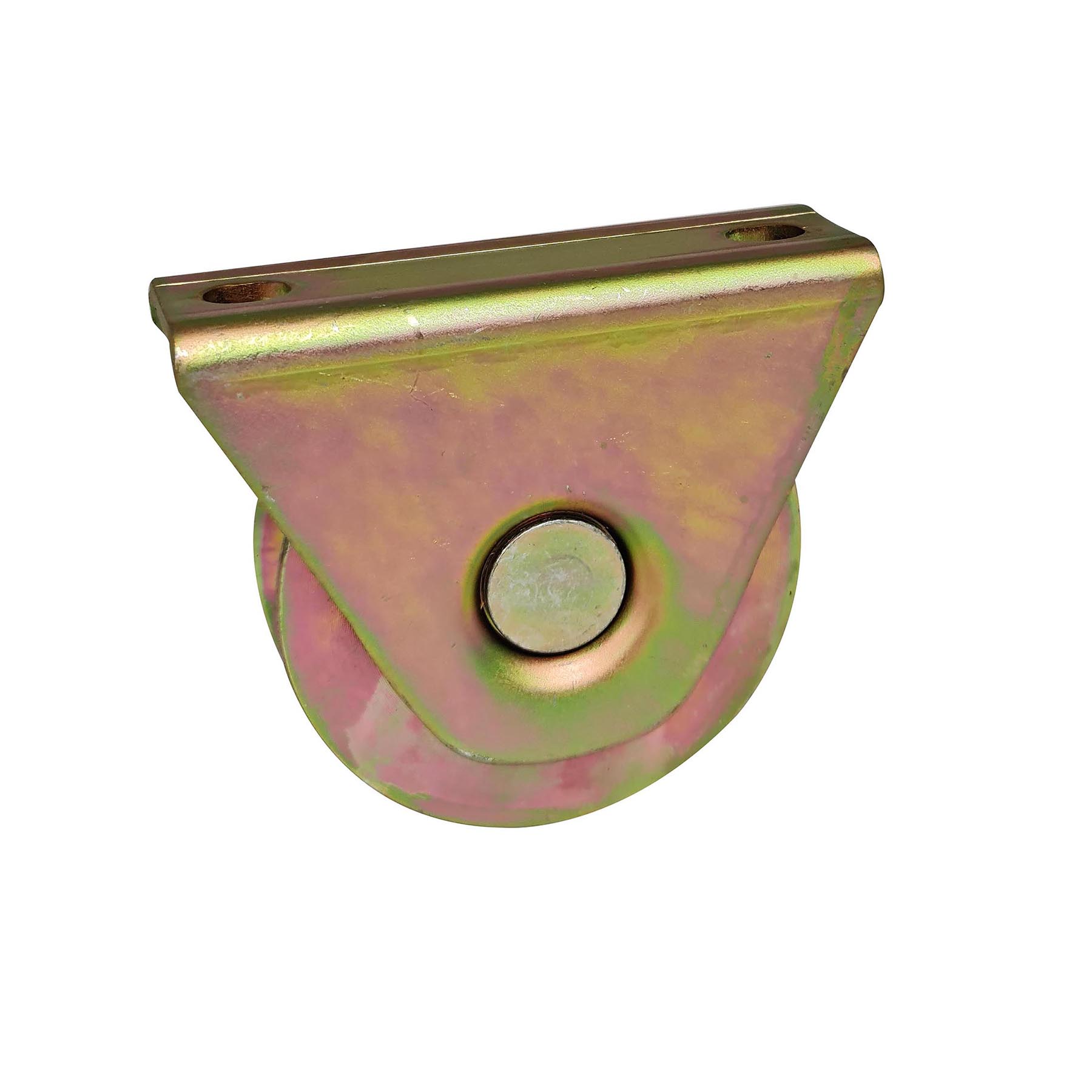

68mm Flat Mount Wheel

U Grove wheels, suitable for 20mm dome shape tracks

Heavy-duty wheel with dual bearings

This is a flat mounting wheel. The wheel is fixed onto the underside of the bottom gate frame, and the wheel will raise the gate by approximately 80mm from the sliding gate track.

68mm 2 Flat Mounted Wheels



Package: 68mm Flat Mount Wheel

Usage: Sliding Gates

Suitability: The wheels are suitable for sliding gate tracks with dome-shape rise measuring 20mm in width (see the dimensions)

Weight Capacity:
250Kg per wheel



68mm 2 Flat Mounted Wheels

68mm Flat Mount Wheels



  • R10 profile to suit the entire range of APC Galvanized profile tracks
  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)
  • Fits straight to the bottom, no cut out required
  • Raises the gate by 87mm when installed with the floor track
  • Easy installation with pre-punched fixings, screws to the tubing from each side
