Ultra-Secure Keypad and RFID Reader for Interior Installation. Access Control Keypad and Approximate Reader Designed and Made in Australia.

CACMS Keypad/Reader

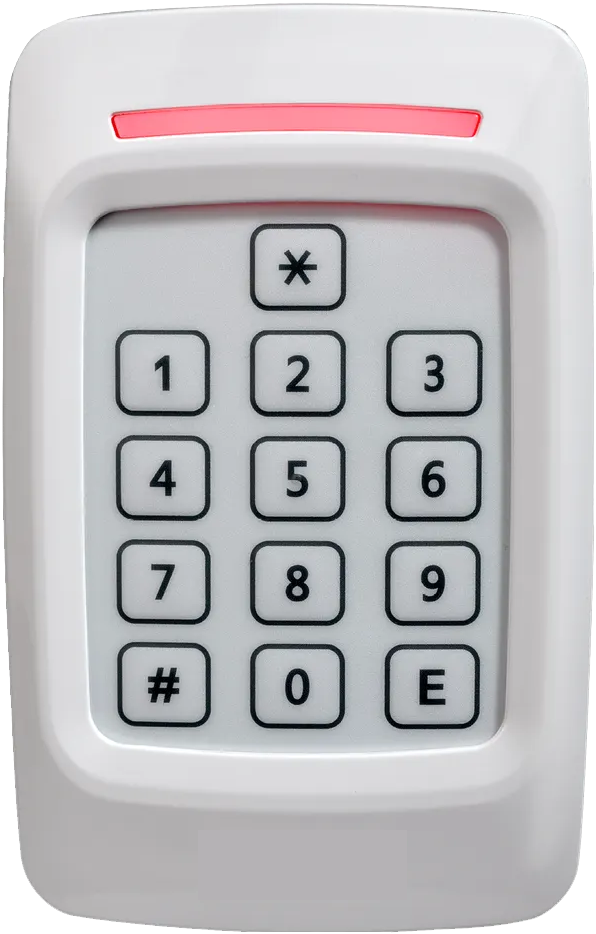

The CACMS Keypad/Reader is an RFID reader and keypad. It is designed for ultra-secure interior installation and use and is compatible with EM and HID 125kHz proximity cards and fobs.

• Up to 20cm read range

• Automatically senses required output type.

• Configured for enhanced Wiegand compatibility, suitable to replace and upgrade legacy Wiegand-only readers

• The reader can be connected through low-cost unshielded cable up to a kilometre away from the controller

• Audio and visual feedback for all inputs

• Suitable for domestic and commercial use

• 19 million possible combinations

• Locator pip for visually impaired

• Compatible with Access Controllers

• Each unit factory tested with warranty included

• Australian design, manufacture and support

Technical Specifications

Operating voltage: 9 - 14 Volts D.C.

Operating current: 150 mA. max

Operating temperature: 0°C to 50°C

Read range: Up to 20cm (8”)

Frequency: 125 ± 5 kHz

Wiegand output:
Pulse width: 50μs
Pulse separation: 2ms

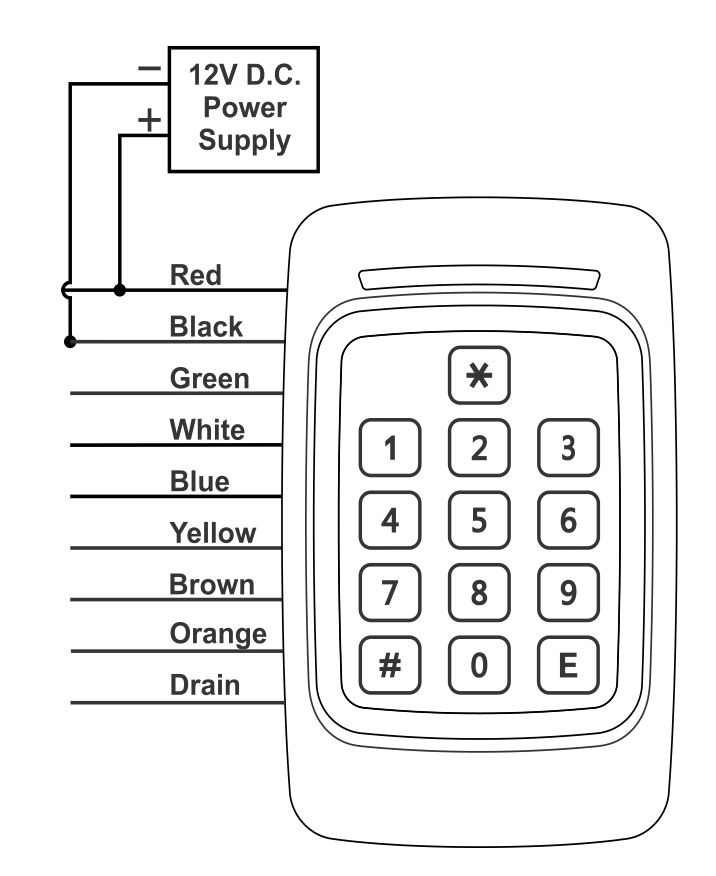

WIRES for Ultra-Secure Keypad and RFID Reader

The Ultra-Secure Keypad and RFID Reader have eight wires, but not all will be needed for each installation. The unused wires should always be terminated and left unconnected.
