Ultra-Secure Keypad and RFID Reader for External Installation (IP67). Access Control Keypad and Approximate Reader Designed and Made in Australia.

CACMS Keypad/Reader

The CACMS External Keypad/Reader is an RFID reader and keypad designed for ultra-secure external installation and use. It is weather-resistant and tested with IP67, making it suitable for indoor or outdoor use.

• Illuminated membrane keypad

• Configurable Tricolour LED light pipes provide visual feedback

• Tough polycarbonate shell and chassis for demanding outdoor environments

• 11 million code combinations

• Rugged and modern design

• Dual frequency reader

• Locator pip to aid the visually impaired

• Automatically senses required output type.

• Compatible with Wiegand-based access controllers

• Includes slide and lock mounting plate

• IP and RFID features are achieved without the need for potting

• Advanced accelerometer anti-tamper protection

• Each unit factory tested with warranty included

• Australian design, manufacture and support

Technical Specifications

Protection Rating: IP67

Operating voltage: 9 - 28 Volts D.C.

Operating current: 200mA. max

Operating temperature: -20°C to 70°C

Read range: Tag 4cm / Card 9cm

Frequency: Dual frequency
125 kHz (HID, EM, other formats on request)
13.56 mHz (UID/CSN Only)

Wiegand output:
Pulse width: 50μs
Pulse separation: 2ms

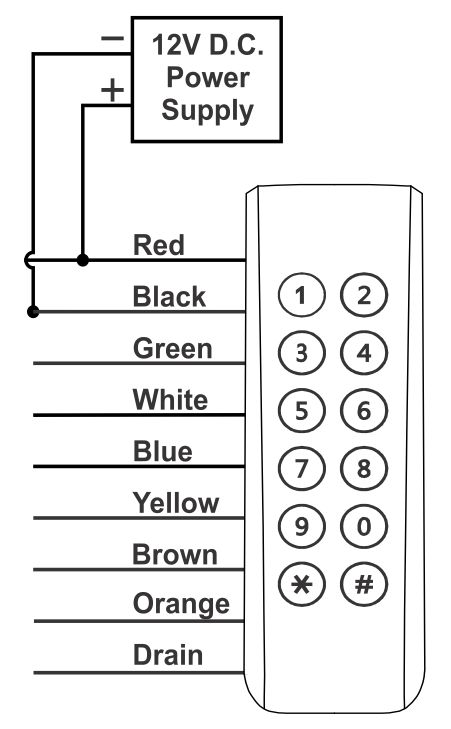

WIRES for Ultra-Secure External Keypad and RFID Reader

The Ultra-Secure External Keypad and RFID Reader have eight wires, but not all will be needed for each installation. The unused wires should always be terminated and left unconnected.
