Ultra-Secure RFID Reader for Interior Installation. Access Control Approximate Reader Designed and Made in Australia.

CACMS Reader

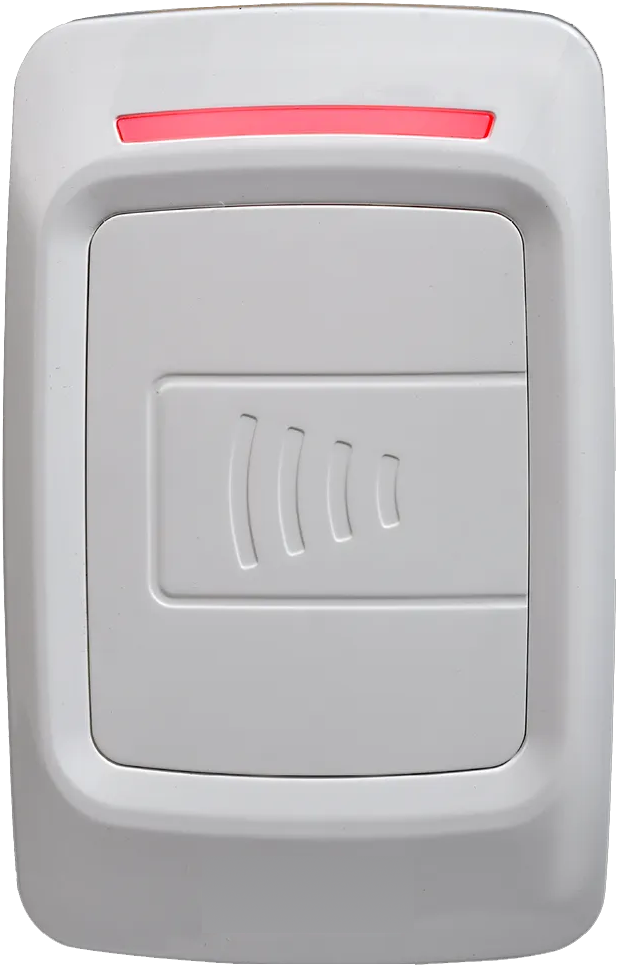

The CACMS Reader is an Ultra-Secure Access Control RFID reader for ultra-secure interior installation and use. It is compatible with compatible with most Wiegand input control panels.

• Up to 20cm read range

• Automatically senses required output type.

• Configured for enhanced Wiegand compatibility, suitable to replace and upgrade legacy Wiegand-only readers

• The reader can be connected through low-cost unshielded cable up to a kilometre away from the controller.

• Audio and visual feedback for all inputs

• Suitable for domestic and commercial use

• HID 125kHz compatible

• Compatible with most Wiegand input access control panels

• Each unit factory tested with warranty included

• Australian design, manufacture and support

Technical Specifications

Operating voltage: 9 - 14 Volts D.C.

Operating current: 150 mA. max

Operating temperature: 0°C to 50°C

Read range: Up to 20cm (8”)

Frequency: 125 ± 5 kHz

Wiegand output:
Pulse width: 50μs
Pulse separation: 2ms

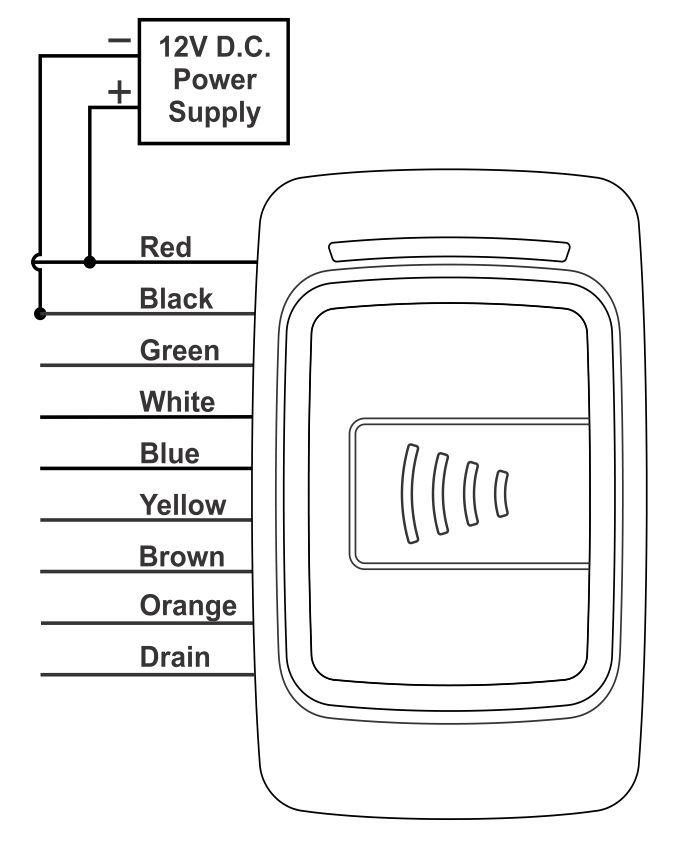

WIRES for Ultra-Secure RFID Reader

The Ultra-Secure RFID Reader has eight wires, but not all will be needed for each installation. The unused cables should permanently be terminated and left unconnected.
