Value Pack: APC-L24 Multi-Channel Receiver and Three APC Remote Controls | Add-On Combo Pack For Logico24 Control Board Units

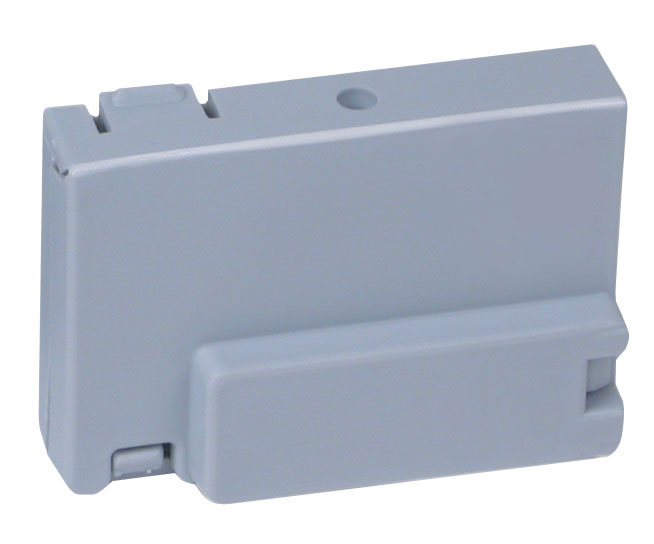

APC-L24-RX2 Two-Channel Receiver



The APC-L24-RX2 two-channel plug-in receiving module can be used on the Logico24 control board to allow for the entire APC wireless family of equipment, such as remotes, wireless keypads, wireless push buttons, etc, to operate the Logico24 controlled devices.

Compatible devices

• APC-RC4S Four Button Keyring remote
• APC-RC4-SV Four Button Sun Visor Remote (six colour choices)
• APC-RC450S Long Distance Remote
• APC-KP2W Two Channel Wireless Keypad APC-KP2W
• APC-PBS-KW Single Wireless Button with Isolation Key
• APC-PBD-KW Double Wireless Button with Isolation Key
• ANT-1 External Boosted Antenna

Specifications

• 433.92Mhz High-Security Rolling Code compatible with APC devices
• Dual Mode Receiver with momentary and latching modes
• Normally Open and Normally Closed circuits
• Plug-in module for the Logico24 control board
• Sensibility: ≥ -103 dBm
• S/N: > 17dB @ 100dBm m=100%
• Working temperature: -20 ÷ +60°C

APC Automation Systems FOUR Button Keyring Remote Control



• Featuring High-Security rolling codes transmitting a unique code chosen at random
• Slim design
• Keyring Clip-on System
• Compatible with APC RX2 Two Channel Receiver
• Completely Backwards Compatible with all legacy APC control boards
