Product SKU: BG-NUUR6-DC-SYNCRO

12m Double Boom Barrier System / Dual Boom Gates / Parking Barriers, Traffic Access Control APC V2 NUUR 6. Universal Boom Gate Ultra High-Speed 24V DC, 2x6 Meter Boom Gate Barrier Made in Italy, Two Key Chain Remote Control and APC Syncro Module Set

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

12M BOOM GATE SYSTEM

  • SALE

12m Double Boom Barrier System / Dual Boom Gates / Parking Barriers, Traffic Access Control APC V2 NUUR 6. Universal Boom Gate Ultra High-Speed 24V DC, 2x6 Meter Boom Gate Barrier Made in Italy, Two Key Chain Remote Control and APC Syncro Module Set

Product SKU: BG-NUUR6-DC-SYNCRO

  •  In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$4,999.00 $7,393.00 APC Automotion Plus Sale

  • Double Boom Gate Operator (up to 12m arm) Italian-Made Ultra High-Speed 24V DC Barrier/Boom Gate Systems

  • Kit Includes

    01 APC V2 NUUR 6 Universal Boom Gate Operator Box (Pre-Configured Right Side) Ultra High-Speed 24V DC, Car Parking Access Control / Boom Barrier / Boom Gate / Parking Barrier | Made in Italy (QTY: 2)
    02 6m Boom Gate Arm Consisting of 2 X 3m and a Joiner for APC V2 NUUR 6, Universal Boom Gate (QTY: 4)
    03 Joint for Boom Gate Arms | Italian Made APC V2 NUUR 6, Universal Boom Gate (QTY: 2)
    04 Boom Gate Cover for APC V2 NUUR Universal Barrier/Boom Gate Operator (QTY: 2)
    05 Concrete In Fixing Anchor Plate with Stay Bolts and Screws for APC V2 NUUR Universal Boom Gate Operator (QTY: 2)
    06 APC Four Button Keyring Remote (QTY: 2)
    07 APC Syncro Module Set for Proteous 450, 500, 1000 Sliding Gate System and NUUR 4, 6 Boom Gate Systems (QTY: 1)
    08 FREE APC Retro Reflective Safety Sensor - for Gate Opening System Safety Retro Reflective Gate Sensor (QTY: 1)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

ULTRA FAST 24V DC Powered Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6

Ultra-low power consumption. Suitable for solar-powered systems.

24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate

24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 6 m width

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy



  • Accurate and safe operation with encoder
  • Obstacle detection
  • Self-learning of opening and closing times
  • Slow-down in the limit switch area
  • Balancing spring included
  • White painted aluminium bar (accessory)
  • Digital control unit programmable using three program buttons and display
  • Plug-in adaptor for modular receiver
  • ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
  • Input for photocells with self-test function
  • Input for mechanical safety edges
  • Courtesy light output
  • Holding magnet output
  • Energy Saving function to minimise consumption in standby mode
  • Programmable acceleration and deceleration
  • Operation in case of absence of power using the backup battery
  • Operation with solar power using the ECO-LOGIC system



Motor Overview / Balancing Spring System







Technical Features

  • Power supply (Vac - Hz): 230 V~ 50 Hz
  • Motor power supply (Vac - Hz):  24 Vdc
  • Maximum electric power (W): 240W
  • Opening time (s): 5 Seconds for 6 Meter Boom Arm
  • Working temperature (°C): Between -20° to +55°
  • Duty cycle % - (max. cycles/hour): 80% - (200)



Control Panel





  • Digital control unit programmable using three program buttons and display
  • Plug-in adaptor for receiver
  • ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP



Dimensions



Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy



APC V2 NUUR6 Boom Gate System is Suitable to Use On Either Side.

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy





Easy to Swap Right Side and Left Side Raise Arm Barrier Operator

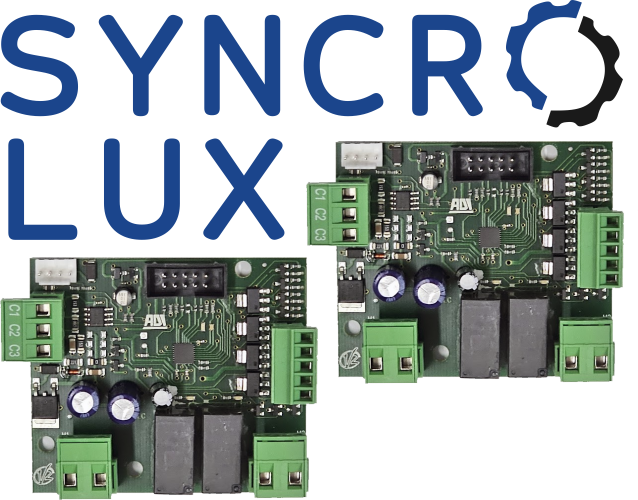

APC-Syncro-LUX Dual Motor Synchronisation Module

The Syncro modules are connected as a pair, one into each sliding motor of a bi-parting installation. They are interconnected using twisted pairs. This enables the synchronised simultaneous operation of the gate operators, which use only one set of accessories connected to either of the two units.

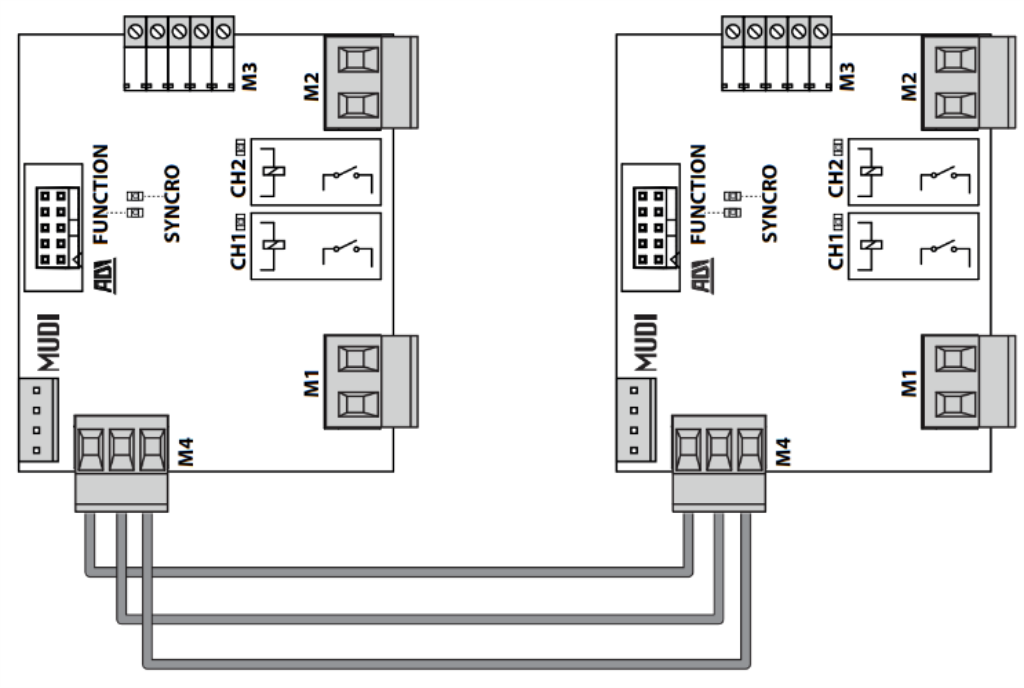

The Syncro-LUX device can be used to synchronise the operation of two motors, with the control unit including this function in the programming menu. Install a Syncro-LUX module in each motor control board and connect the two M4 terminal boards, respecting the position of the terminals.

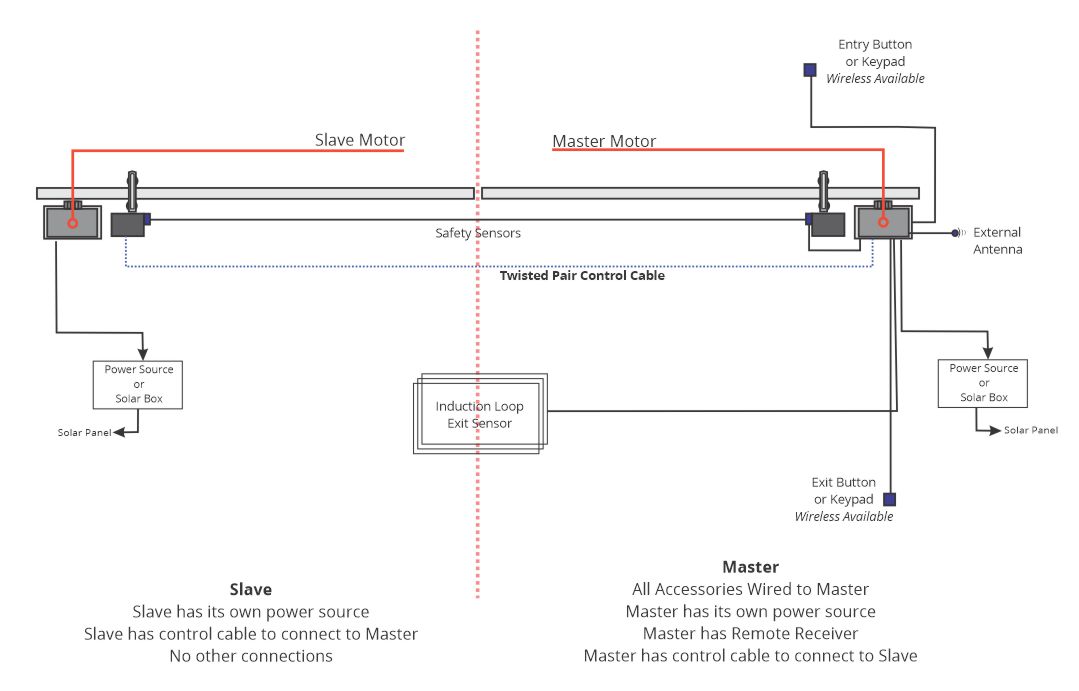

Installation Layout when using Syncro-LUX



APC Automation Systems FOUR Button Keyring Remote Control





Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.
