Product SKU: GH-FAC-VC4312-90
Price :
$695.00
info

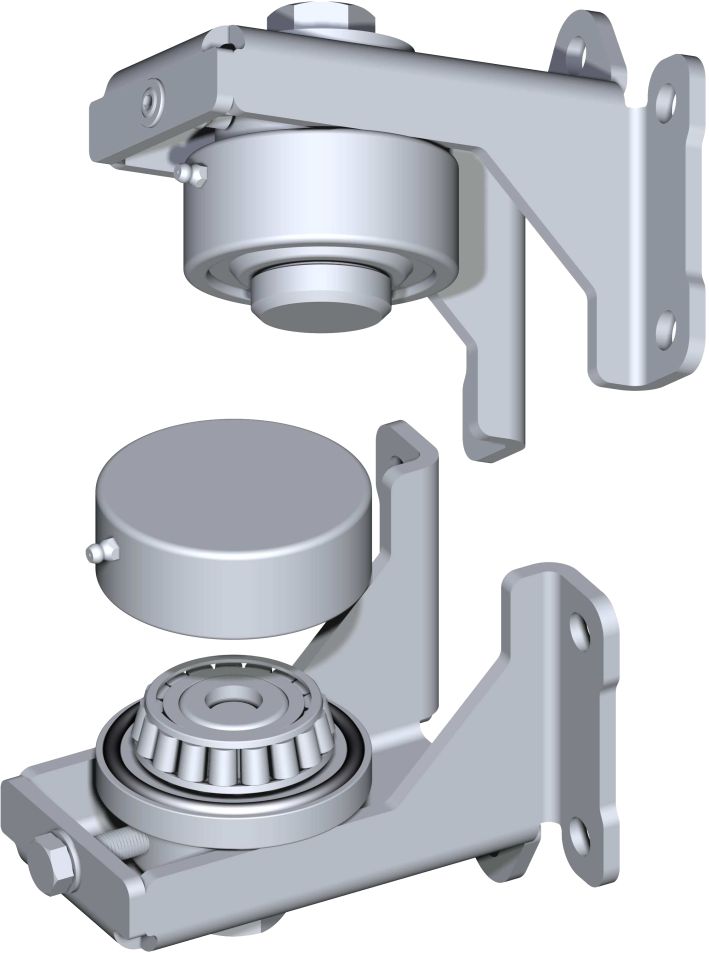

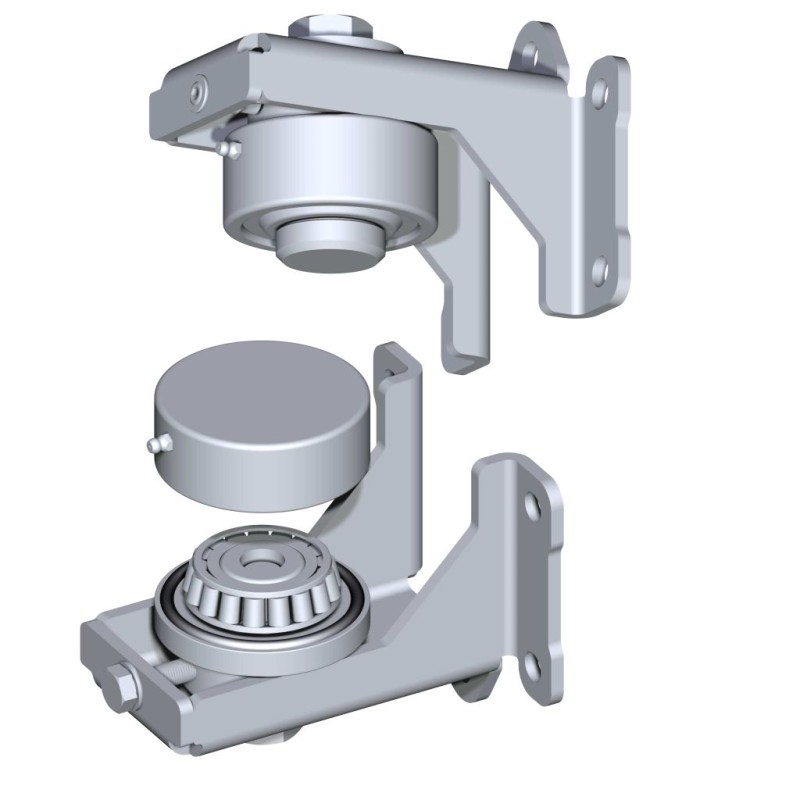

Lower and Upper Heavy-Duty Pivot Hinges with Tapered Roller Bearing and 5-hole Bracket. Single Swing Gate Hinge Set
Pair of galvanised hinges with tapered roller bearing and 5-hole bracket. They are fixed by welding to the frame. Fixing to the column through screws or bolts.

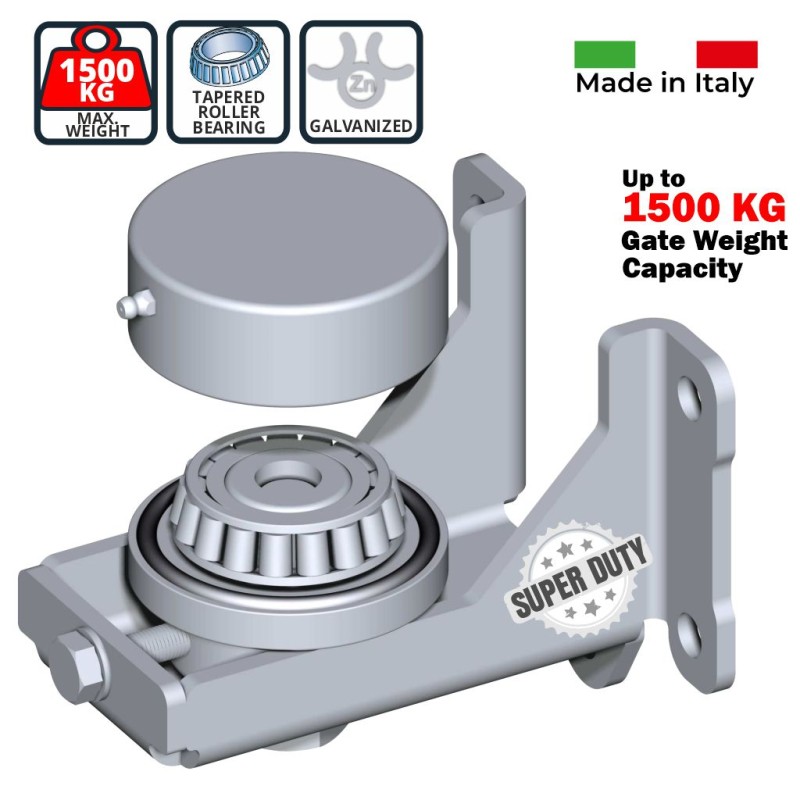

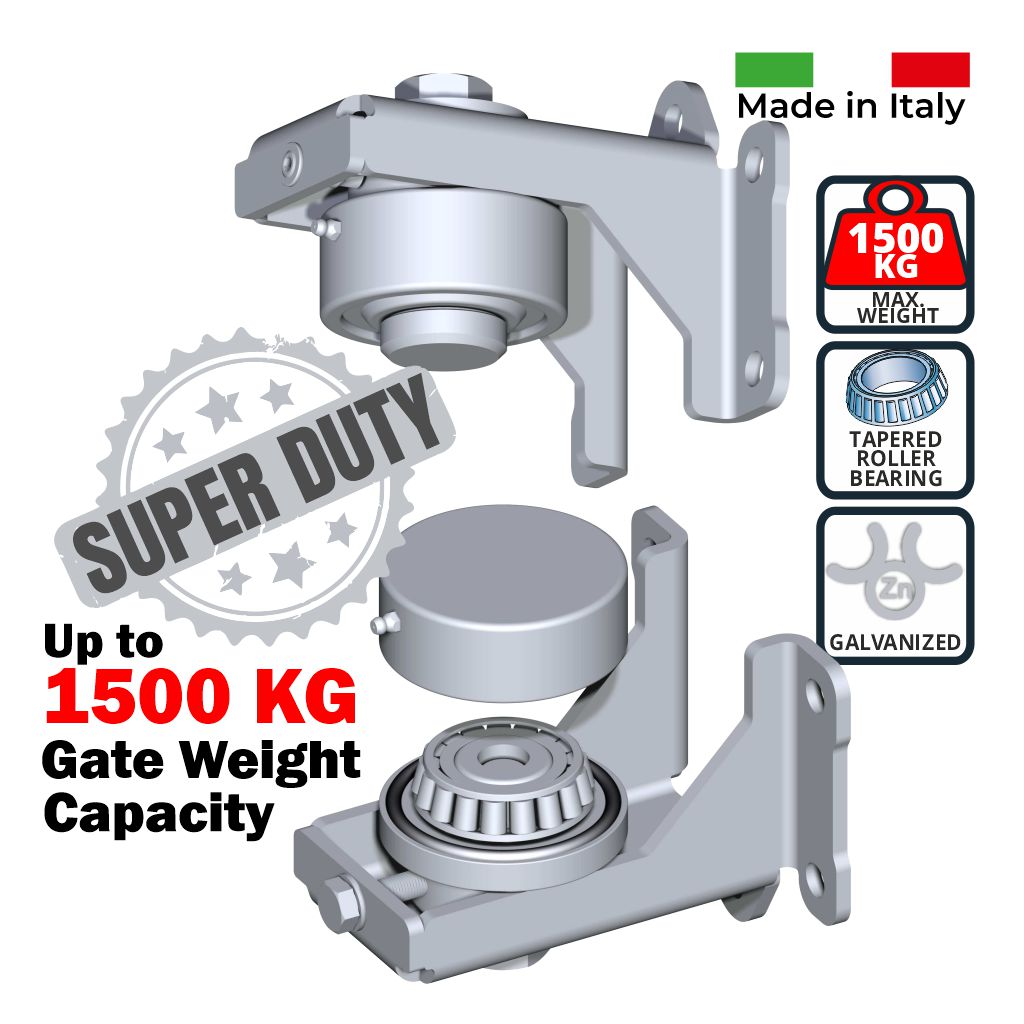

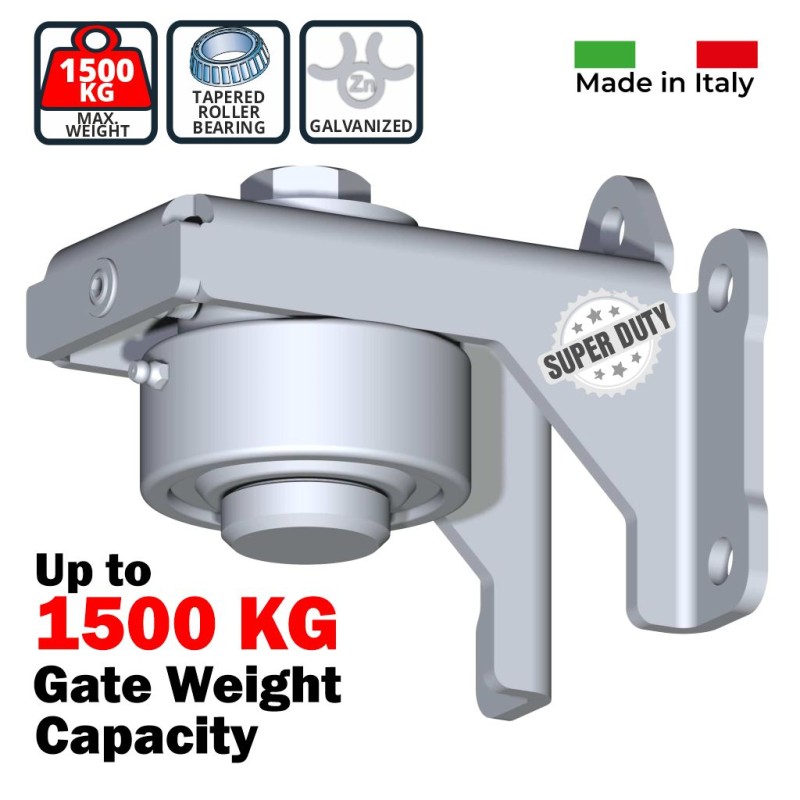

The 1500 kg Heavy Duty Rebate Bearing Adjustable Hinges have a minimalist look with tight post-to-gate gaps. They are perfect for automatically opening and closing driveway swing gates. The swing gate hardware bottom hinge has a sealed tapered roller thrust bearing, and the top hinge uses a sealed ball bearing.
Heavy Duty Adjustable Bearing Hinges Suitable for 90mm Dimension Steel Swing Gate Post.

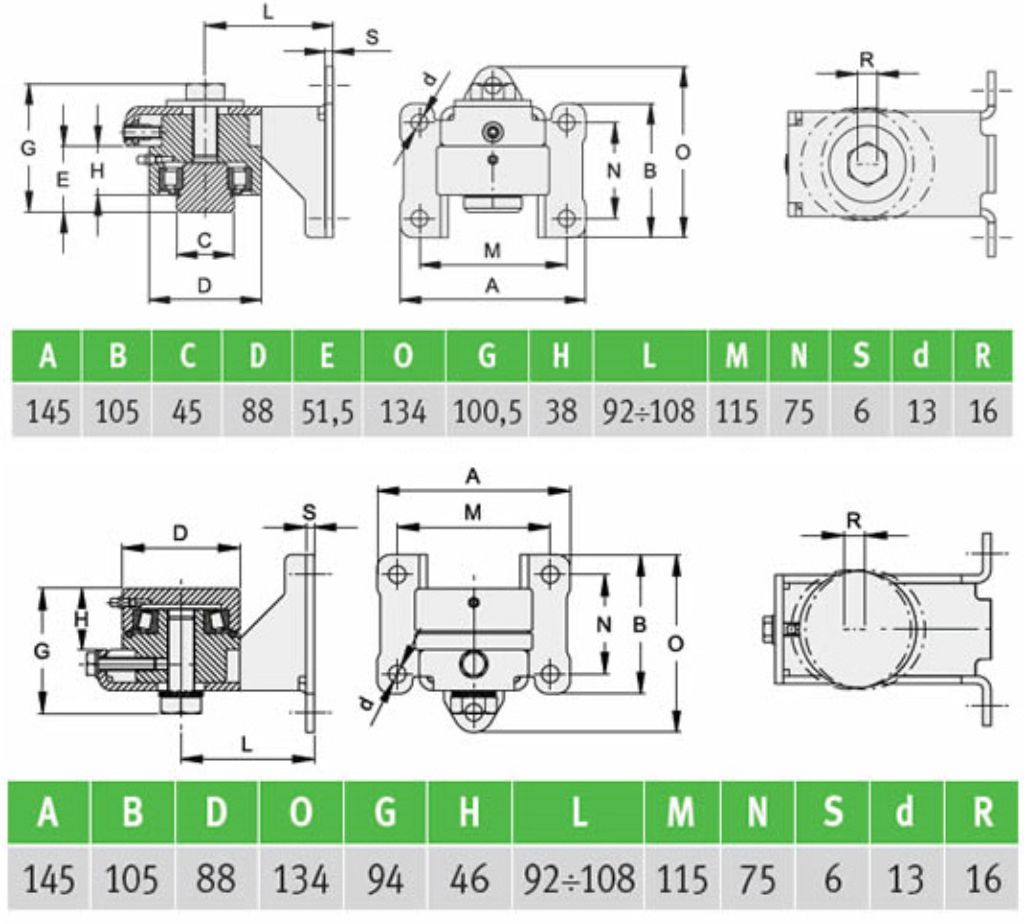

Italian-made heavy-duty bolt or weld-on hinge pair designed for 90mm Dimension Heavy Steel Swing Gate. Galvanised finish with adjuster for alignment. Suitable for heavy gates (up to 1500 kg) and as a top hinge for underground motors. Fully sealed bearings. The gap from the post to the gate is adjustable from 92mm to 108mm.
Italian Made FAC range of gate accessories is made from high-quality Steel and is heavily galvanised for longer life and rust resistance.
Product Details:
Hinge Type Pivot Tapered Roller Bearing
Hinge Brand FAC VC4312-090
Material Galvanised Steel
Suitable For Swing Gate

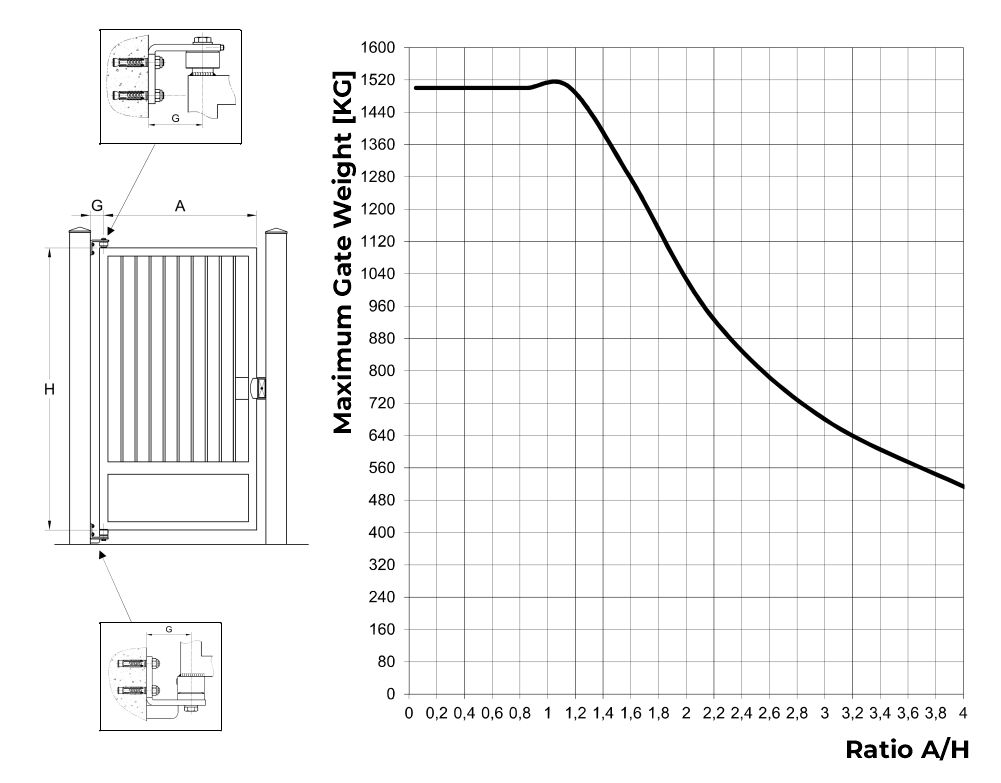

Capacity 1500kg/Per Leaf
Galvanised bolt or weld-on tapered bearing hinges with L-shaped 5-hole brackets suitable for heavy swing gates provide a smooth, trouble-free swing. The bearings are also fully sealed.
Features:
