450 kg Universal Left/Right Bearing Hinges. Italian Made Heavy-duty Adjustable Bearing Hinges With a Knock-In 50x50mm Square Hollow Section (SHS) Caps Are Suitable for Steel Swing Gates.

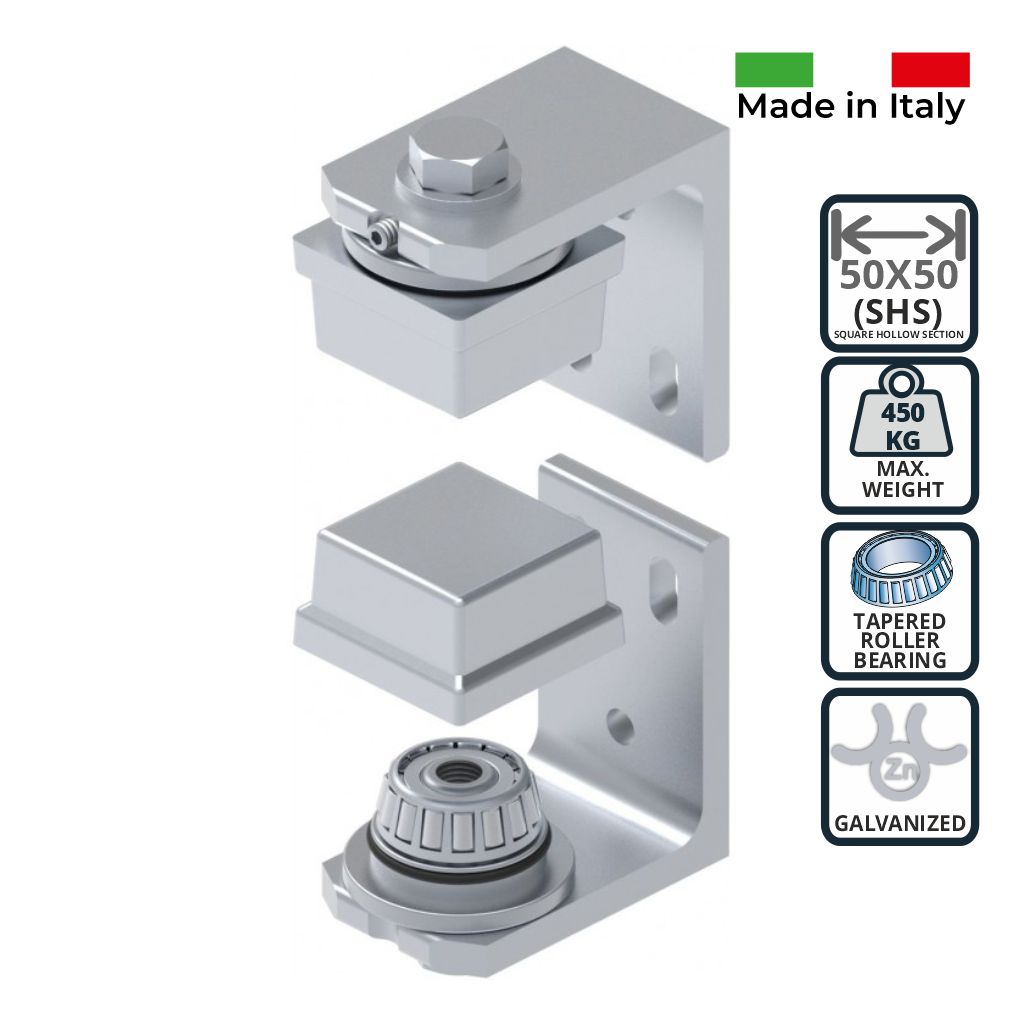

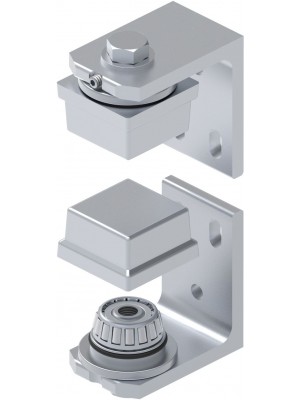

FAC VC4352 Hinges with tapered roller bearing for square section and bracket

Pair of galvanised hinges with tapered roller bearing and mounting plate suitable for tubular frames. They are fixed by welding to the frame. Fixing to the column through screws or bolts.

The Rebate Bearing Hinges fit inside the gate frame for a clean, minimalist look with tight post-to-gate gaps. They are perfect for the automatic opening and closing of driveway swing gates. The swing gate hardware bottom hinge has a sealed tapered roller thrust bearing, and the top hinge uses a sealed ball bearing.

At a Glance
The Steel Tube Knock Hinges are galvanised silver in colour.

• Tapered Roller Bearing
• Supports gates up to 450kg
• Galvanised Steel 8mm Brackets
• Uses bolt fixings
• Brackets can be bolted or welded to the gate post.

Universal Left/Right Rebate Bearing Hinges.

Heavy Duty Adjustable Bearing Knock-In Square Hollow Section (SHS) Hinges Suitable for 50x50mm Swing Gate Post.

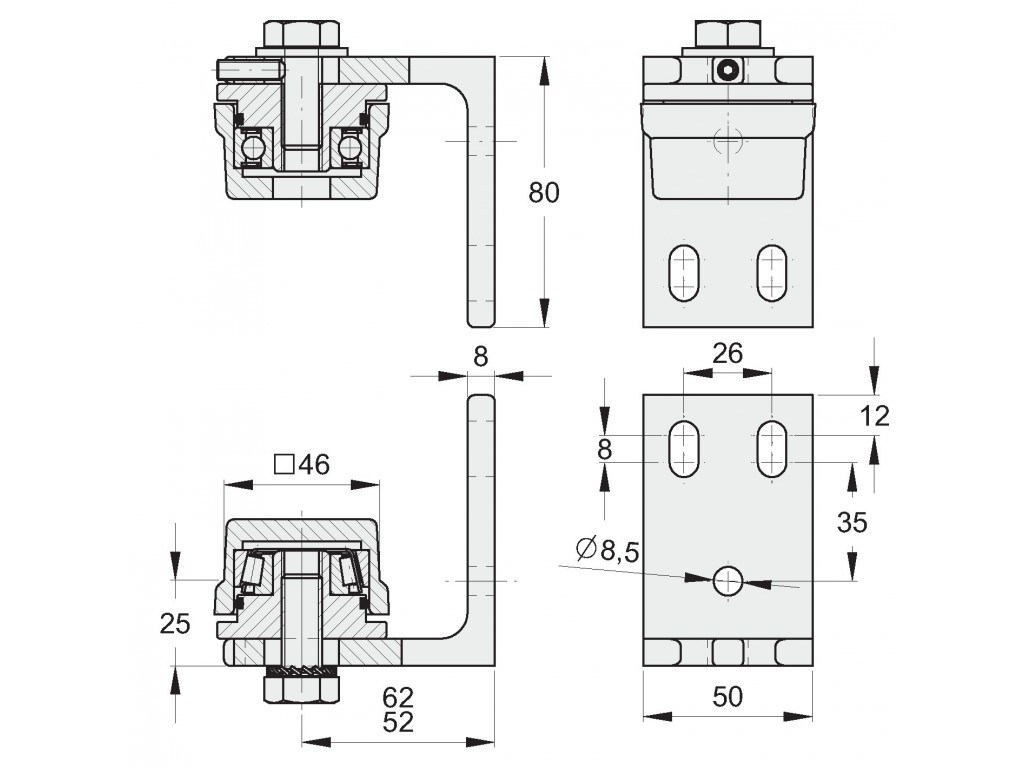

Italian-made heavy-duty bolt or weld-on hinge pair designed for 40x40mm SHS (Square Hollow Section). Galvanised finish with adjuster for alignment. Suitable for heavy gates and as a top hinge for underground motors. Fully sealed bearings. The gap from the post to the gate is adjustable from 52mm to 62mm.

Adjustable 50×50 Steel SHS (Square Hollow Section) Rebate Insert Hinge

• Knock-in Tube 50x50 Rebate Steel Gate Insert Hinge
• Heavy-Duty Tapered Roller Bearing Hinges

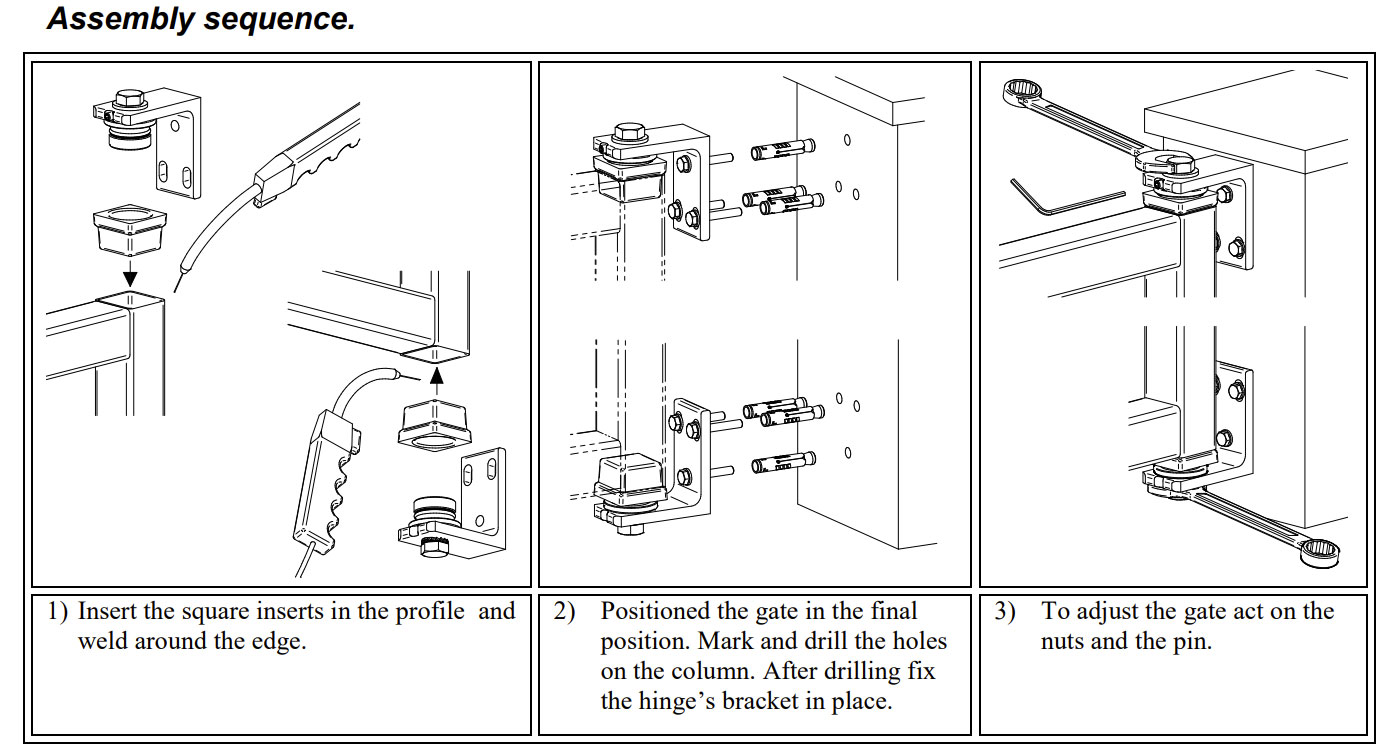

• Insert directly into the SHS (Square Hollow Section) post from the top and the bottom.

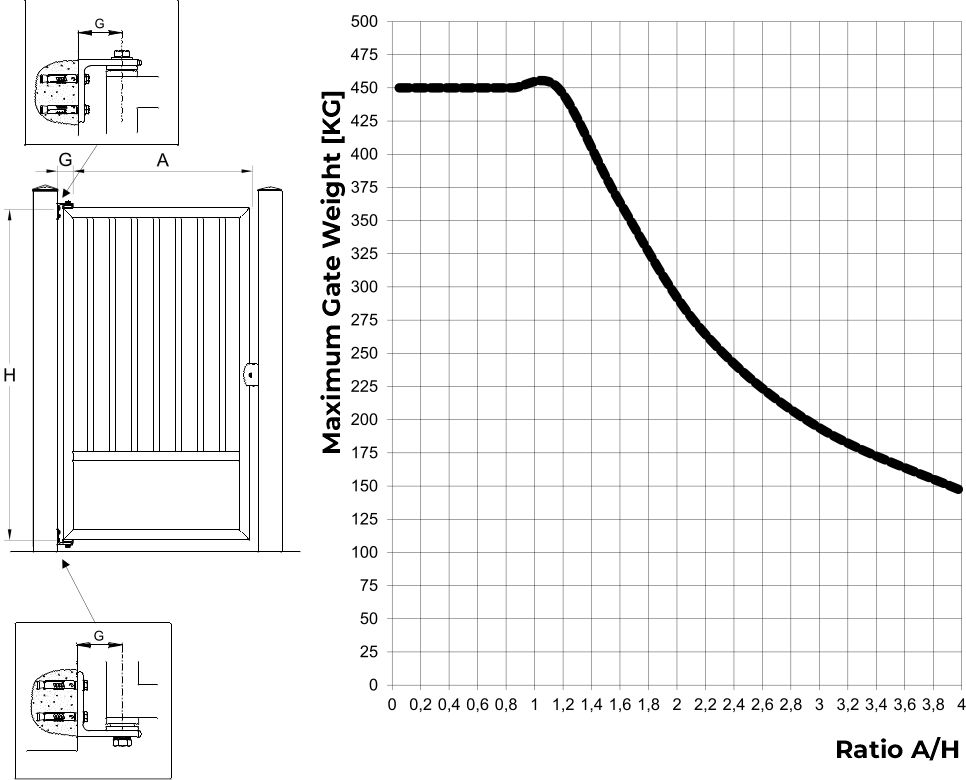

• Supports gates weighing up to 450 kg per pair of hinges
• Adjustable distance from the post to the centre of the gate (G: from 52mm to 62mm)
• Heavy-duty 8mm steel brackets can be bolted or welded to the gate posts

FAC VC4352, Up and Bottom Hinges with Roller Bearing for Square Section and Bracket, Support, Swing Gate Hinges

Italian Made FAC range of gate accessories is made from high-quality Steel and is heavily galvanised for longer life and rust resistance.

Product Details:

Hinge Type Tapered Roller Bearing

Hinge Brand FAC VC4352-050

Material Galvanised Steel

Suitable For Swing Gate

Capacity 450kg/Per Leaf

Galvanised bolt or weld-on bearing hinges with L-shaped brackets suitable for heavy swing gates provide a smooth, trouble-free swing. The bearings are also fully sealed. They are available in two different sizes.

Features:

• 270g/m2 Hot Dipped Galvanised
• Made in Italy
• Steel
• Easy Assembly
• Suitable For All Standard Swing Gates
