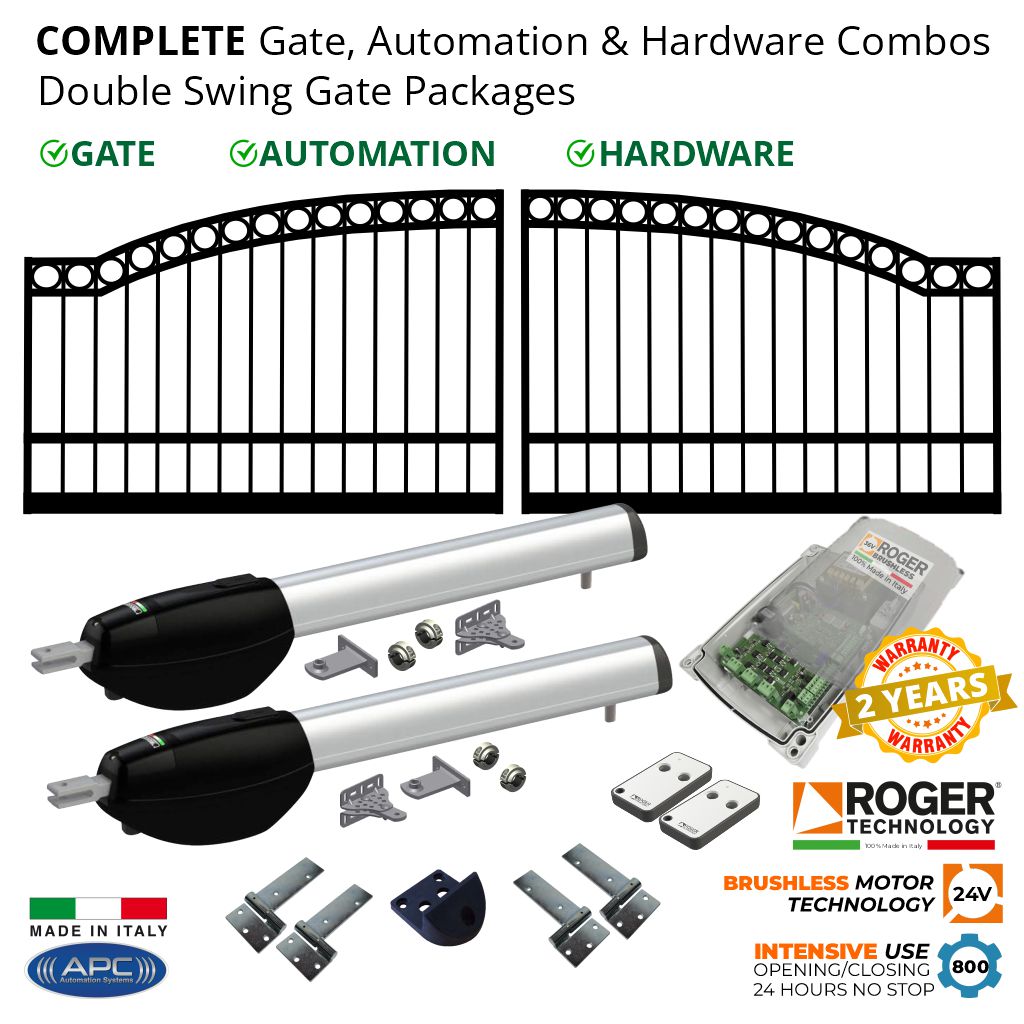

4.5m Arched Gates (2x2.25m), Gate Automation & Hardware Combos with Super Intensive Use Brushless Gate Opener System, 100% Italian Made by Roger Technology. Complete Double Swing Solar Electric Gate Packages

Timeless Arch Top Design Gate with 19mm Pickets and an additional Horizontal Support Rail

Key Features

• Timeless Arch Top Design
• 1500mm Height Arching to 1650mm
• 19mm Pickets
• Robust Satin Black Powdercoating
• 40x40mm Steel for Top & Sides
• 40x40mm Vertical & Horizontal Support Rails
• 80x40mm Bottom Rail
• Completely Welded Throughout

Suitability

• Double Swing Gate Applications
• Residential Use
• Commercial Use

24V DC Brushless Gate Motor | 100% Italian Made by Roger Technology BE20 Series Super Intensive Use Gate Opener.

Brushless Swing Gate Opener Motor
100% Italian Made by Roger Technology BE20 Series 24V (Brushless Gate Motor) for Swing Gate Automation System.

Italian-Made Roger Technology Brushless Swing Gate Motor
| Max. 3M or 300KG Each Leaf | Super Intensive Use |

100% Duty Cycle Brushless Gate Motor with Mechanical Stoppers Opening and Closing

Electromechanical actuator BRUSHLESS, low voltage, super intensive use, with native encoder onboard, ideal for swing gates with leaf up to 3m or 300kg.

Actuator Overview | Brushless Gate Motor for Swing Gate Automation System

Dimensions and System Capacity | BE20/200 Brushless Gate Motor for Swing Gate Automation System

 All measurements are expressed in mm.

Installation Geometry | Swing Gate Automation Brushless Gate Motor

 All measurements are expressed in mm.

Technical Specifications

Roger Technology 24V Swing Gate Digital Control Board
for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made | B70/2ML/BOX |

The Roger Technology 24V B70/2ML/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |

The 24V B70/2ML control unit controls 1 or 2 ROGER brushless motors in sensorless mode for applications on medium-sized gate leaves.

The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).

Technical Features

Control Board Overview

Accessories Compatibility and Controlling Options

• Constant DC Accessories Output
• Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
• Remote controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (App-Based Control)
• GSM Control Systems (Mobile Call/SMS-based Control)

Remote Control Features

E80/TX52R/2

Fix code transmitter 433,92 Mhz. 2 channels, with radio for copy.

Technical features

65mm Rubber Gate Stop

The supplied 65mm rubber gate stop with a steel base is used for the gate alignment and tension whilst they are in the closed position; it also allows the gates to be mounted up to 50mm off the ground.

Being that the minimum vehicle height from the ground is 100mm, it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum, the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.





65mm Rubber Gate Stop Dimensions
