Product SKU: WLB-MB-W-LD-CPT50

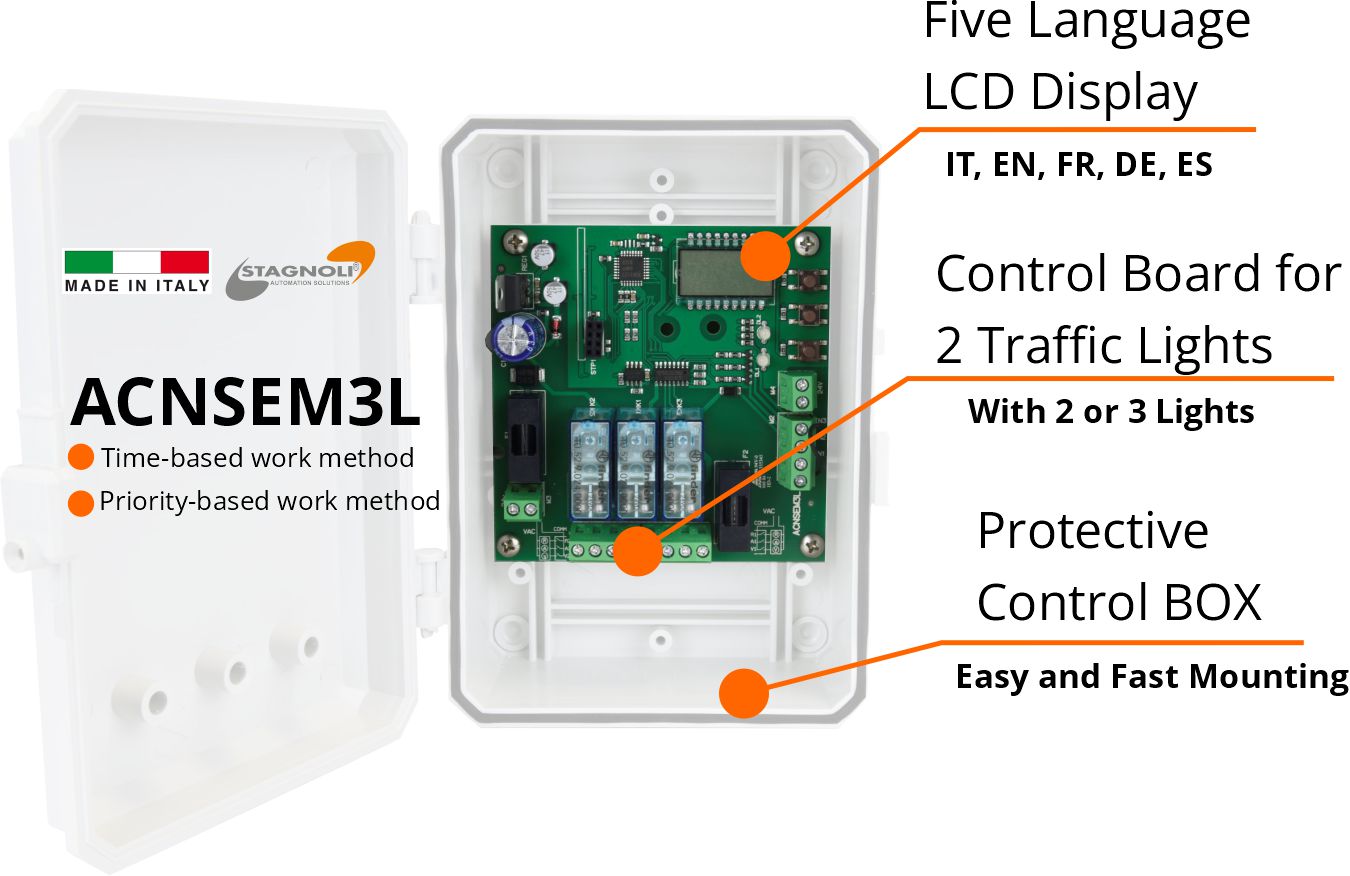

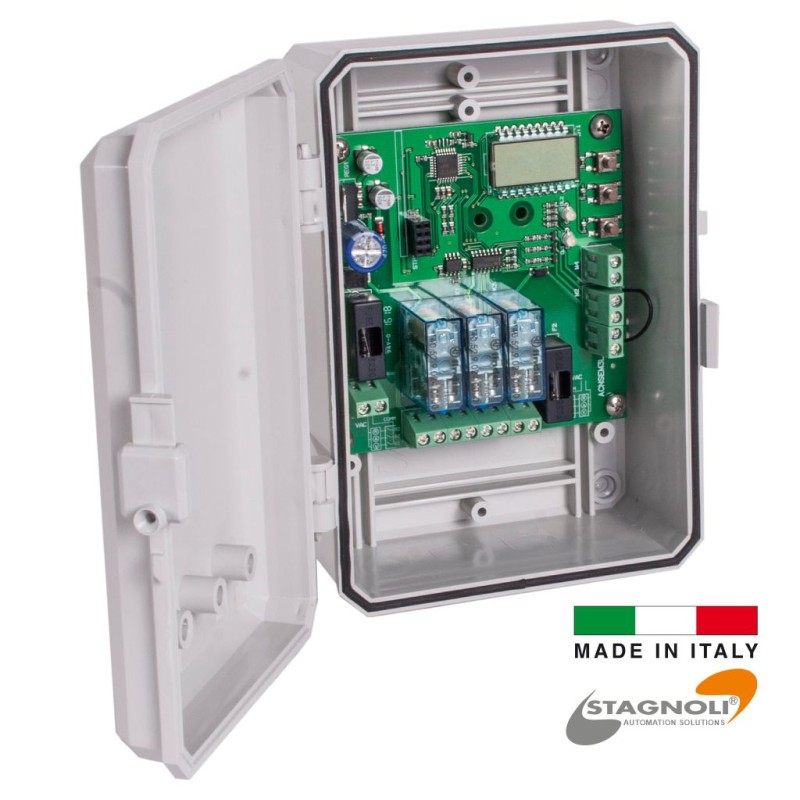

Control board for 2 traffic lights with 2 or 3 lights. Specially designed for alternating one-way roads in apartment buildings (e.g. ramps), company and car park contexts. The ACNSEM3L universal electronic control unit has been a solution for managing two or three traffic lights with two or three lenses in situations where access driveways are narrow and require alternate transit (garage, parking, residence, etc.).
It can be programmed to operate cyclically or logically (e.g. when used with external sensors).
Power: 24Vac/dc
Max Power Current: 0,5 A
Operating Temperature: -20°C to 60°C
Max Lights Power Current: 2A

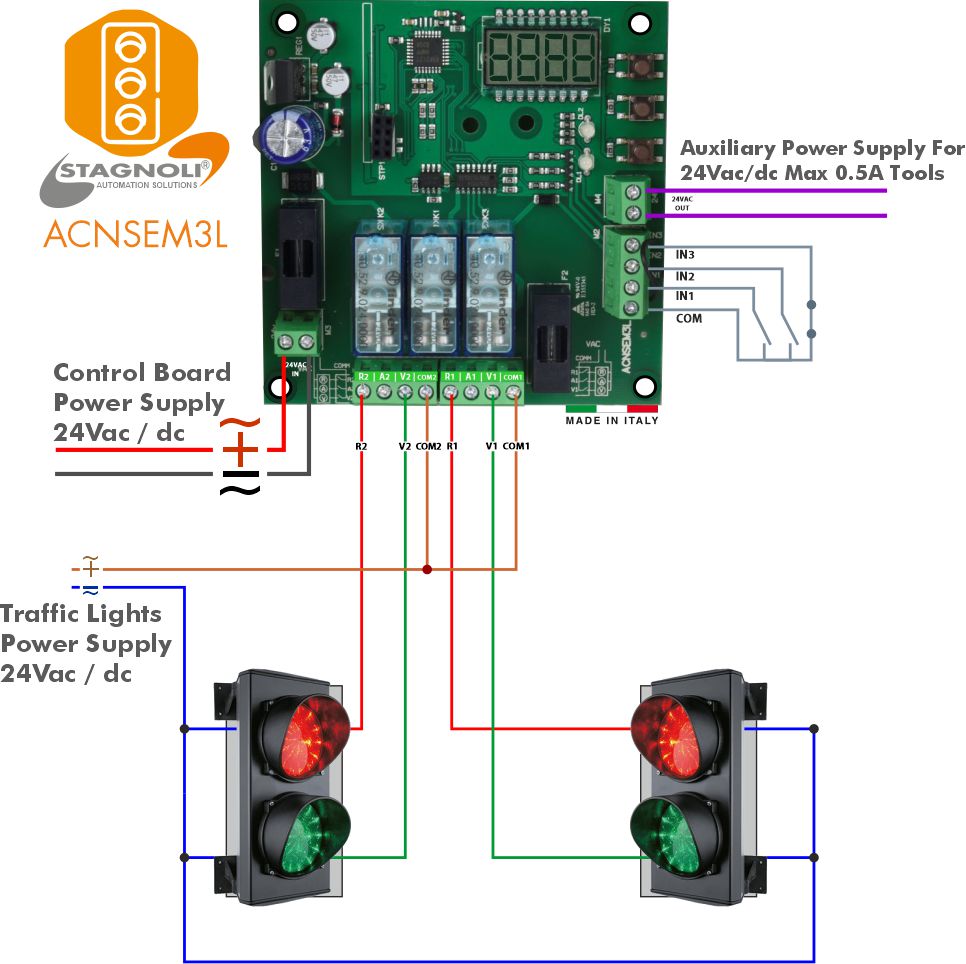

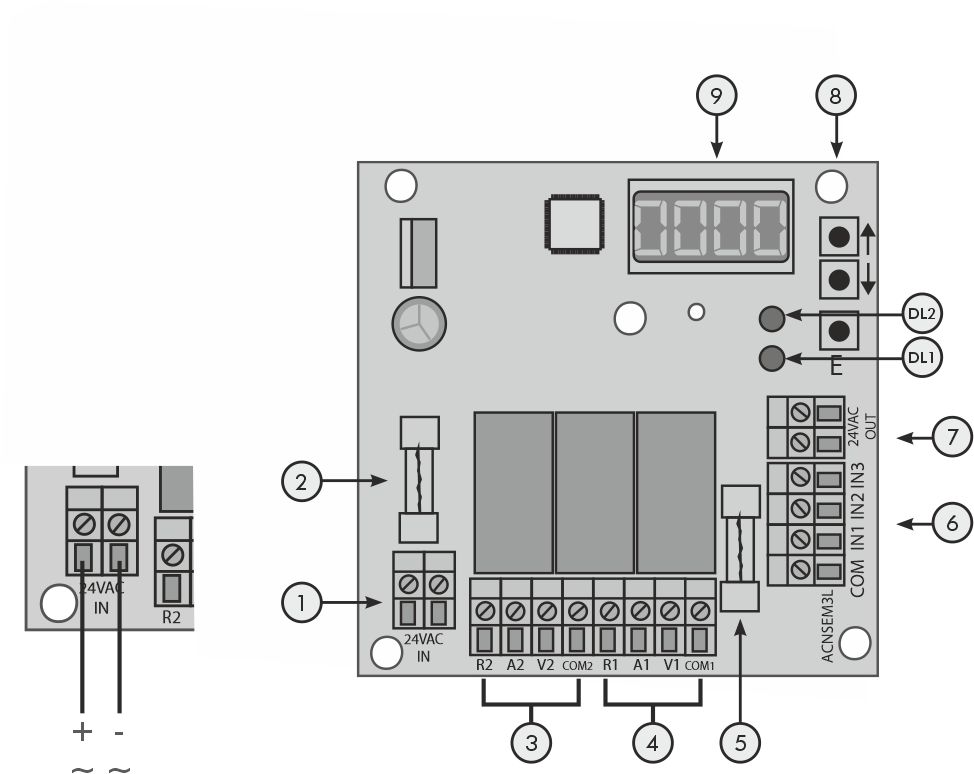

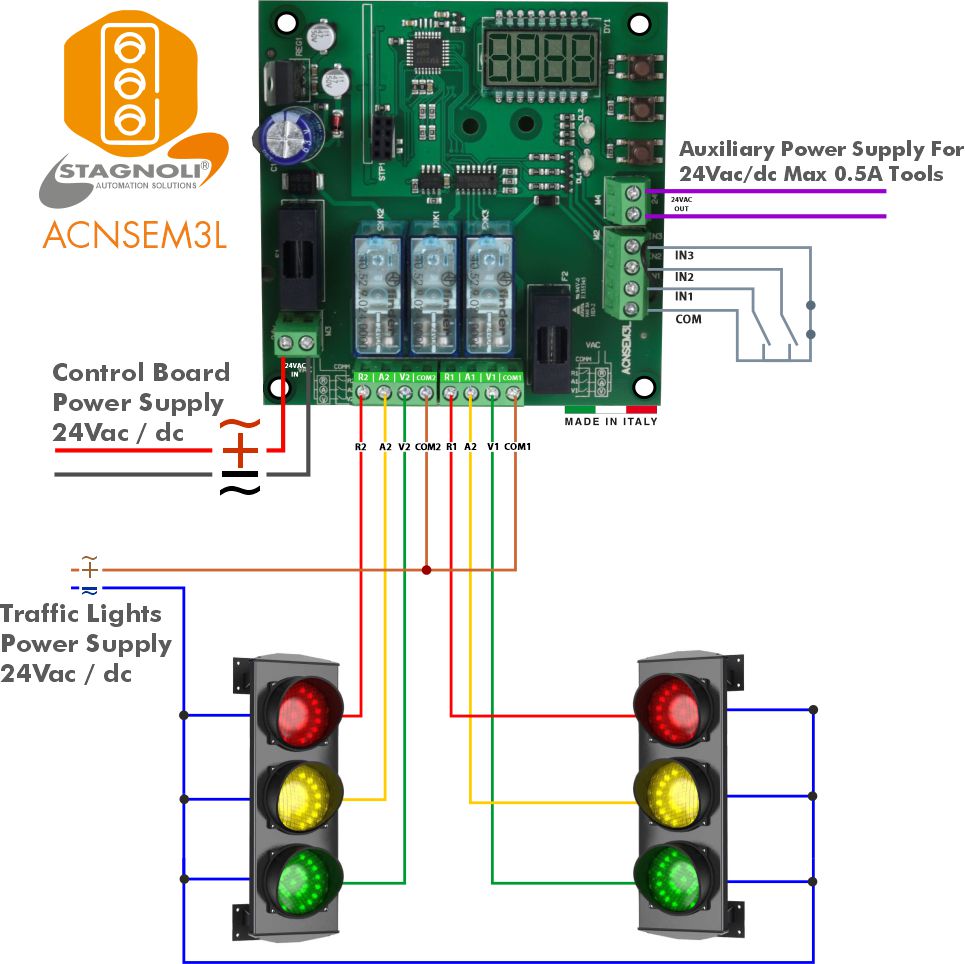

1. Terminal board for power supply 24Vac/dc
2. Power supply and accessories fuse (T0,5A, 5x20)
3. Traffic light 2 terminal board
4. Traffic light 1 terminal board
5. Traffic lights management fuse (F2A 5x20)
6. Priorities input terminal board, with control devices (photocells, detection devices, etc.):
IN1: programmable input for traffic light 1, N.O. by default
IN2: programmable input for traffic light 2, N.O.by default
IN3: emergency programmable input, N.C. by default
7. Auxiliary power supply 24Vac/dc 0,5 A
8. Menu navigation buttons
9. 5-language LCD display (IT, EN, FR, DE, ES)
DL2- Traffic light operation 1
DL1- Traffic light operation 2

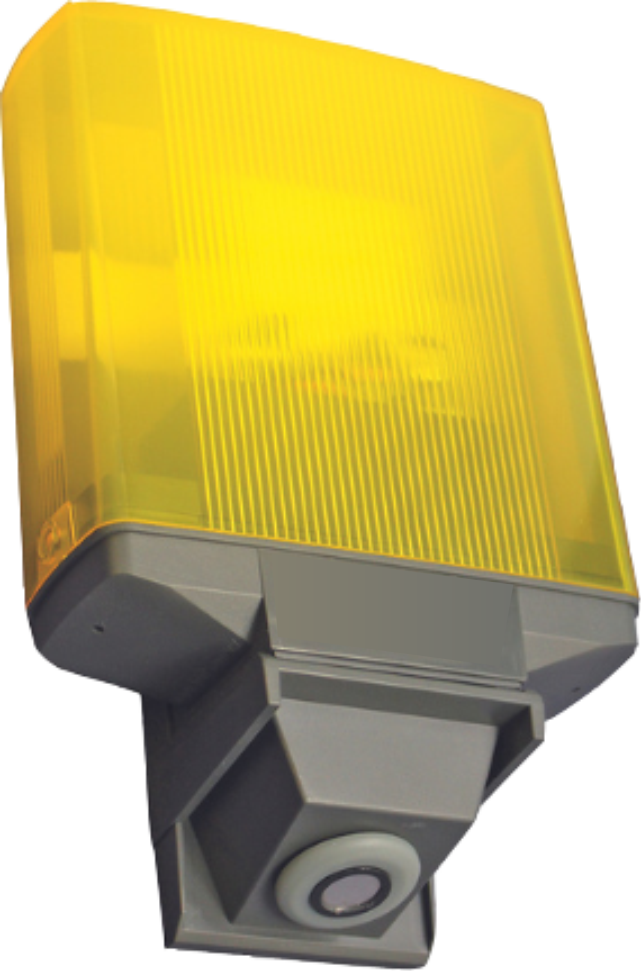

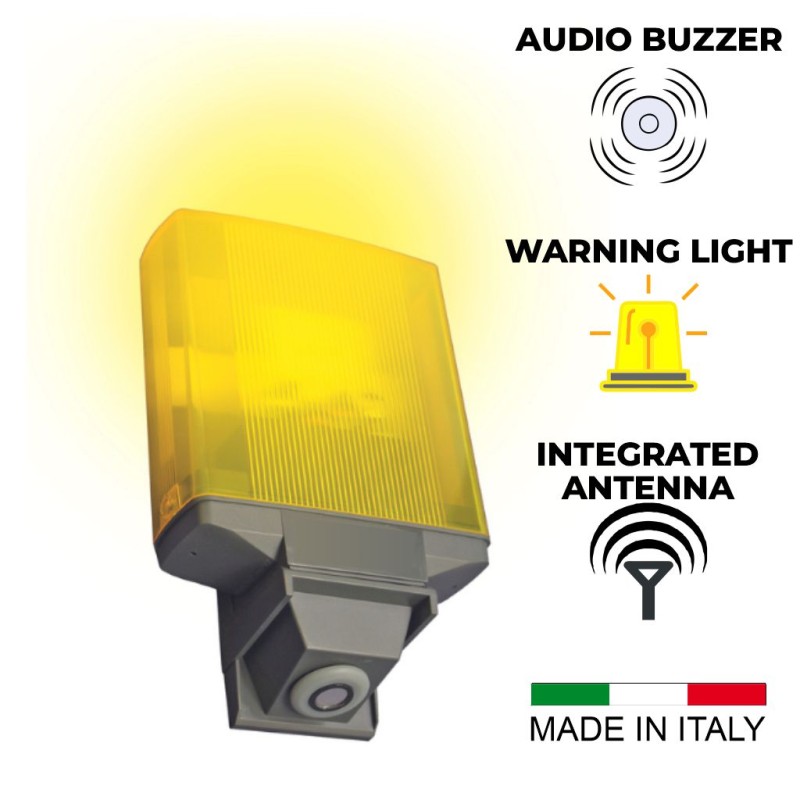

This flashing light with an audio buzzer (beacon light warning alarm/siren) is ideal for increasing the safety of your gate automation system. An integrated buzzer (IP67 protection rating) and an internal LED board with 18 LEDs are laid out to ensure excellent visual and acoustic active warning when the gate automation is moving.

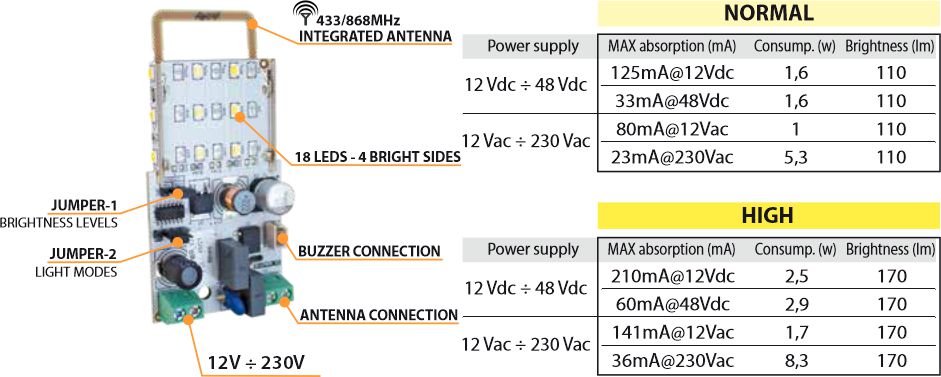

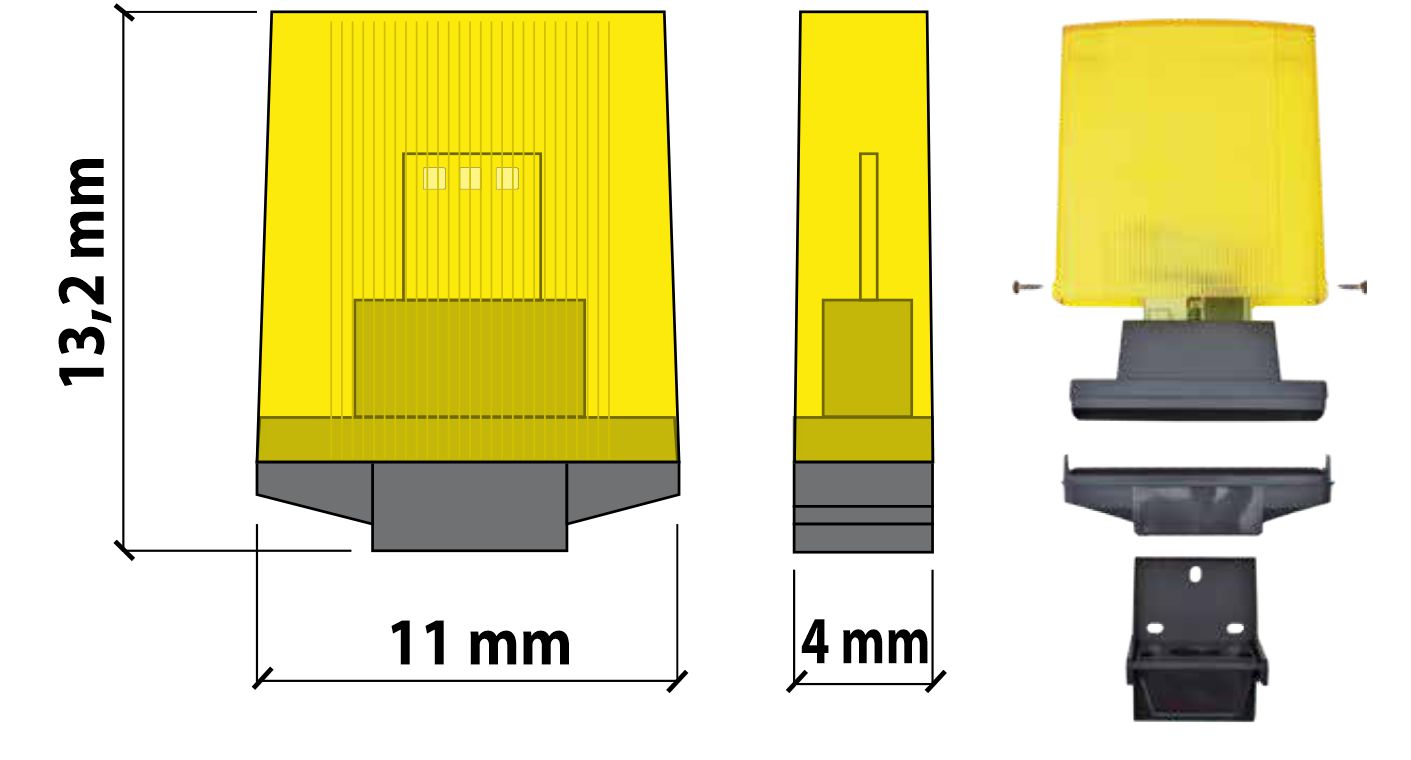

This high-luminous Flashing Warning Light With Buzzer is equipped with a wall-mounting bracket. Allows you to select the type of light (steady or flashing) with a jumper on the board. The advanced internal electronic board provides mega-visibility and high luminous efficacy. The Beacon Signal Warning Light has 18 LEDs: 6 on the front, 6 on the rear, and 3 on each side.
Operating temperature: -20°C, +60°C

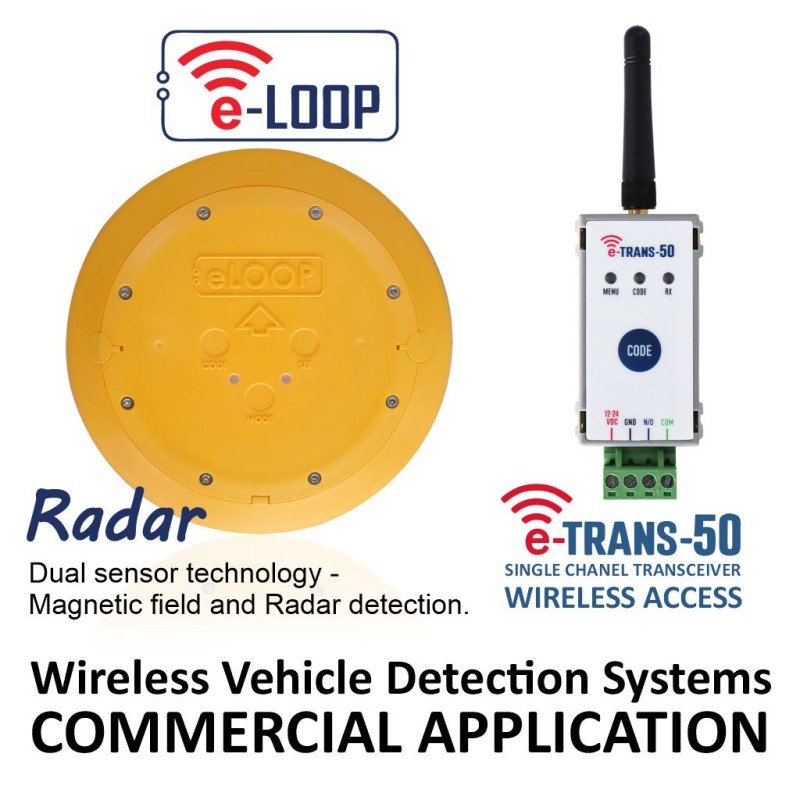

Introducing a new generation wireless vehicle detection with added radar protection. The Commercial e-Loop replaces traditional wired inductive loops, saving you time and money while increasing reliability and safety.

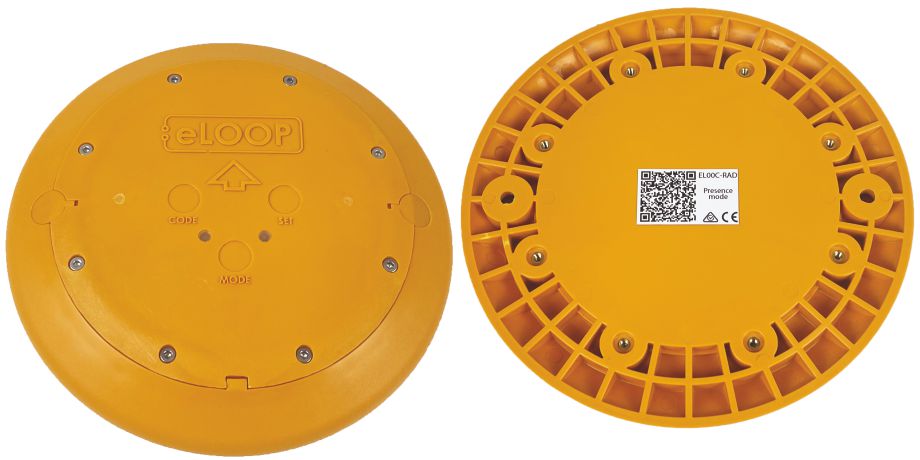

Commercial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles. These detections are transmitted to a nearby Microtech transceiver for gate activation. After the vehicle is detected, the e-loop will switch to radar mode. The sensors are installed on the surface of entry or exit passages using dynabolts, contain four replaceable Lithium batteries, and can withstand almost any vehicle.
Microtech Radar® sensors can detect vehicles that are stopped above the e-loop. The added radar utilises a two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an oncoming vehicle, the transceiver relay will be latched and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop. If the confirmation is missed, multiple attempts will be made to ensure safe operation. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, and confirmation mode.
Functions | Commercial Wireless Vehicle Sensor | Loop Detector
Lower power consumption
3-axis magnetometer for vehicle detection
Fast and simple installation
Up to 4-year battery life
Reliable radio communications with transceiver

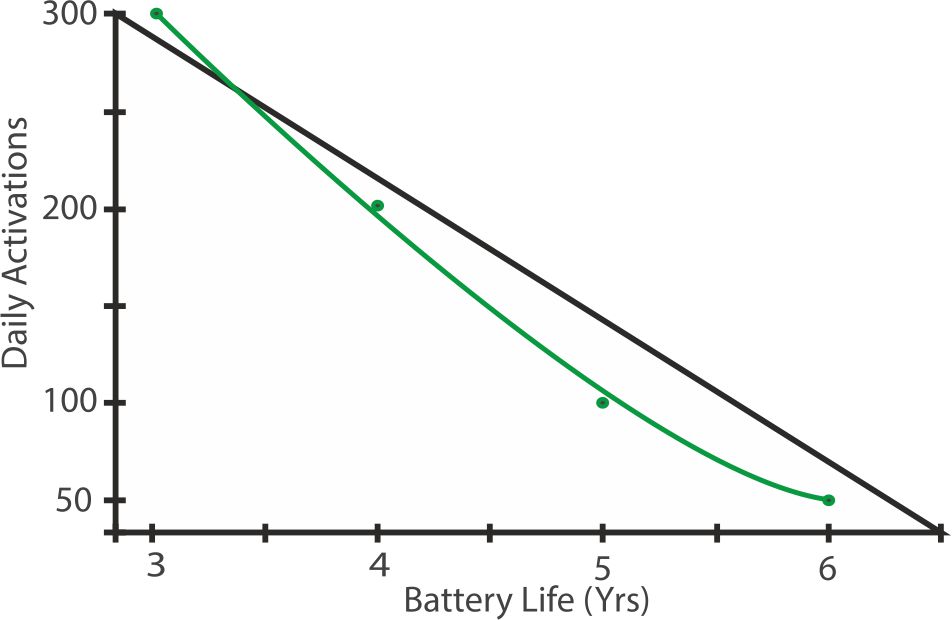

Note: Battery life is dependent on many factors, including daily activations, time used per activation, radar range and external conditions.
The e-Loop commercial is the epitome of perfection when it comes to wireless vehicle detection systems designed specifically for commercial settings.
With its wireless nature, installation becomes a breeze, eliminating the need for complex wiring systems and minimizing disruption to the existing infrastructure. Moreover, the system's efficient energy consumption and low maintenance needs make it a cost-effective solution that ensures long-term reliability.
Additionally, the e-Loop commercial is available with a convenient presence mode, which intelligently keeps gates and barriers open for an extended duration when longer vehicles are in motion over the detection area. This advanced functionality enhances safety and efficiency by minimizing interruptions and reducing the risk of collisions, further solidifying its suitability for commercial environments.
Power: 4 * 3.6 V 2700ma
Dimensions: 220*220*26mm
Weight: 1000g
Environment: designed for above-ground mounting
Protection: IP68 ingress protection
Operating Temp : -20° to 80° C
Standby Power: 14µA
Activation Power: 50mA

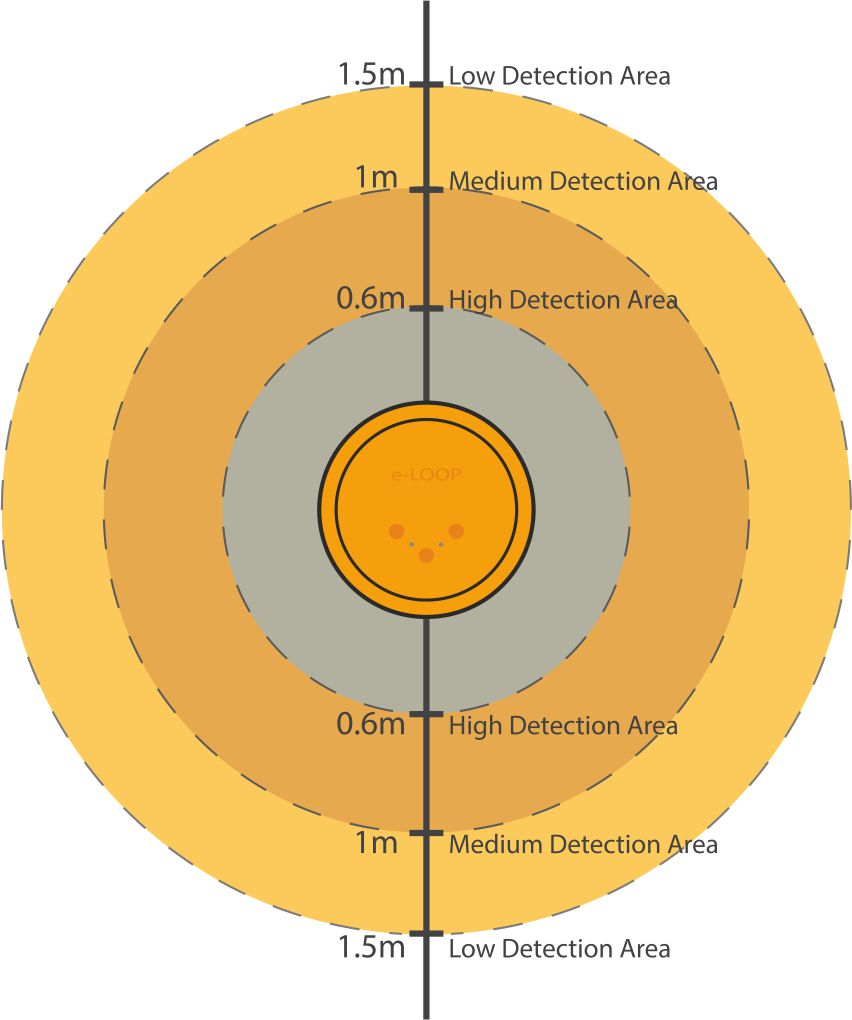

Varying magnetic eld detection zones. The grey area depicts a 0.6m high sensitivity detection area surrounding the e-loop, suitable for the majority of vehicles. The dark colour area depicts a 1m medium sensitivity detection area surrounding the e-loop, suitable for most vehicles. The light colour area depicts a 1.5m low sensitivity detection area surrounding the e-loop, which is only suitable for some vehicles.

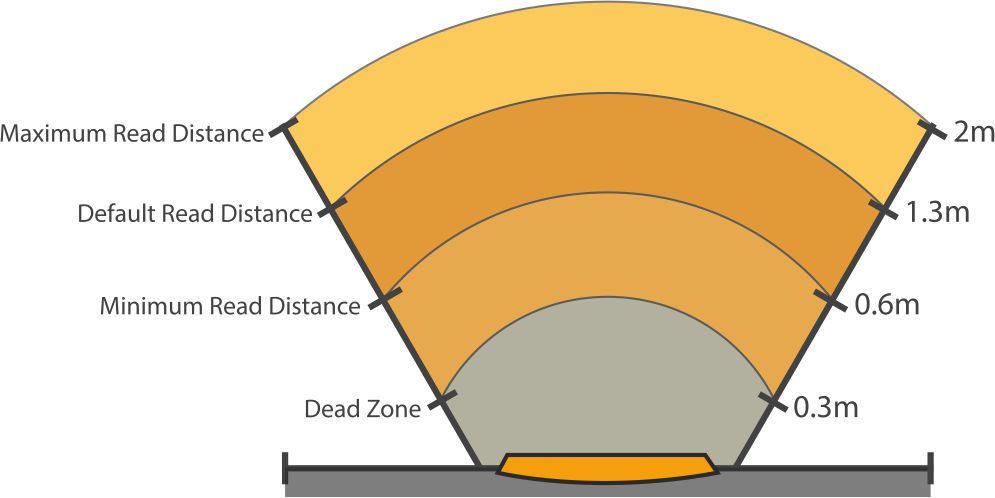

Radar detection range. Spanning from a 60° FOV from the e-loop, these are the range zones. The gray area depicts the dead zone, in which objects cannot be detected. The Minimum read distance is 0.6m. The default read distance is 1.3m, and the Maximum read distance spans up to 2m.
Featuring a compact design with exceptional range, the e-Trans-50 is designed to manage access control for home and commercial systems. A long-range wireless transceiver that can work with both gates or automatic doors. The small design allows it to be easily installed without compromising on the exceptional range. Voltage: 10-36V DC Current draw standby: 4.5 m/a Current draw active: 30 m/a Frequency: 433.39 MHz Remote storage: 50 remotes, 4 x e-Loops, 4 x keypads, 4 x entry buttons Relay: 1-amp contact rating, COM and N/O connections x 1 relay Modes: Pulse, Latch and Hold Compact design with an exceptional range SMA connector standard for external long-range antenna connection Wide Voltage Range: 10-36V DC Exceptionally low Current draw: standby 4.5 m/a, active 30 m/a Frequency: 433.39 MHz Remote storage: 50 remotes, 2 x Keypads, 2 x Entry Buttons Relay: 1-amp contact rating, COM and N/O connections x 1 relay Multiple Modes: Pulse, Latch and Hold E-Trans-50 Single Channel Transceiver
Wireless access control system for gate and door applications.Specifications
FEATURES
12V DC Power Converter
Specifications
Input voltage: AC & DC 16-28V
Output voltage: DC 12V
Output current: 500mA
Operating temperature: -10° C~55° C (-14~131° F)
Operating humidity: 0-90%
Dimension: 73mm × 40mm × 23mm
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable. This is a perfect solution when running mains power to the gate is not viable due to costs, difficulty or simply to DIY.
Type: Remote External Transformer
Input voltage: 240V AC
Output Voltage: Low Voltage 24v AC
Amperage: 10A
Input connection: Plug With 1m 240AC Pre-Connected Cable
Output connection: 20m Pre-Connected Cable (Extendable up to 80 metres)
Suitability: Outdoor use, 10amp Power-Point
