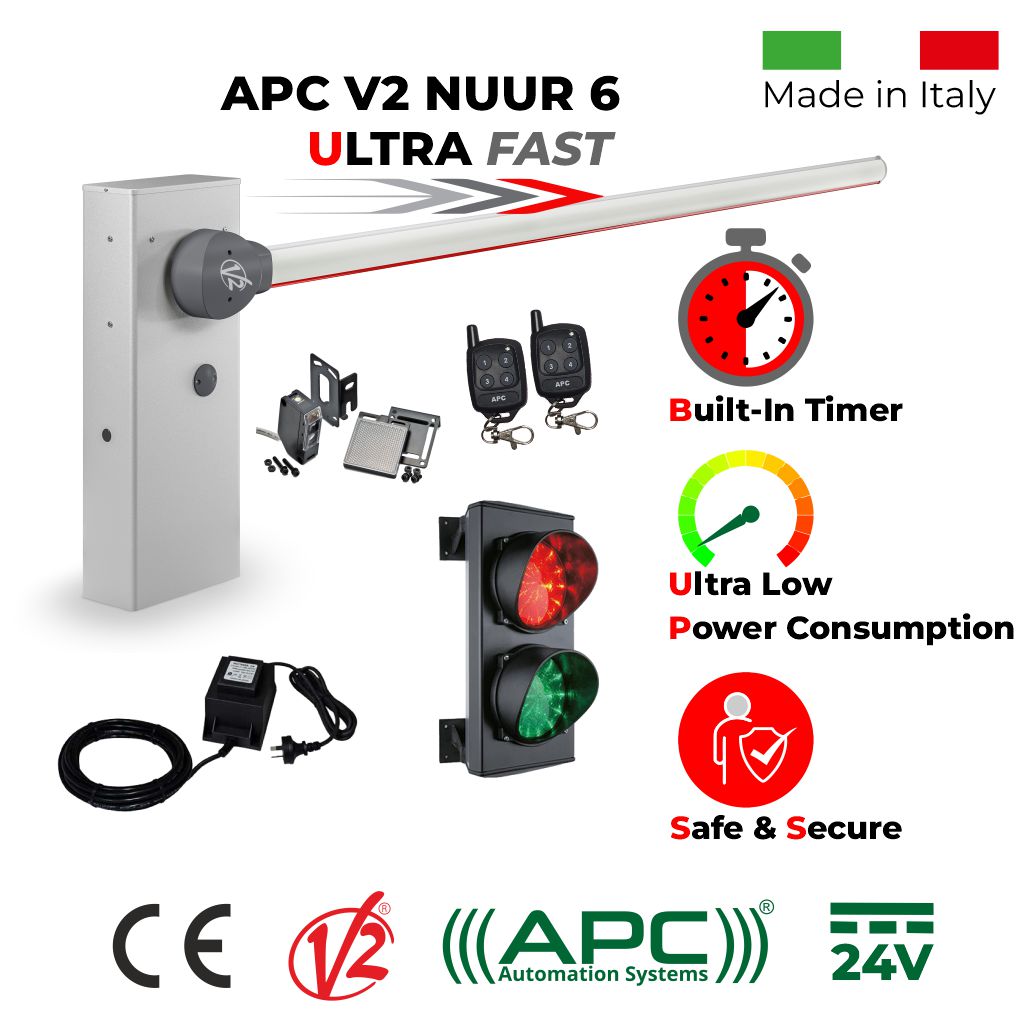

Boom Gate Operator with Traffic Lights Secure Access Control Kit | Italian-Made Boom Gate Barrier Car Parking Access Control System APC V2 NUUR 6. Universal Boom Gate Ultra High-Speed 24V Boom Gate Operator, 6 Meter Boom Barrier Arm, External 24V Transformer with 20m Low Voltage Cable, Two Remote Controls, Safety Sensor and Double (Red/Green) Traffic Signal LED Lights (Made in Italy by Stagnoli)

ULTRA FAST 24V DC Powered Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6

Ultra-low power consumption. Suitable for solar-powered systems.

24V Ultra Fast-Opening Automatic Raise Arm Barrier/Boom Gate

24V rapid opening automatic raise arm barrier for residential and multiple-use installations up to 6 m width

Boom Barrier / Boom Gate / Parking Barrier, Car Parking Access Control APC V2 NUUR 6, Universal Boom Gate Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy

• Accurate and safe operation with encoder
• Obstacle detection
• Self-learning of opening and closing times
• Slow-down in the limit switch area
• Balancing spring included
• White painted aluminium bar (accessory)
• Digital control unit programmable using three program buttons and display
• Plug-in adaptor for modular receiver
• ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP
• Input for photocells with self-test function
• Input for mechanical safety edges
• Courtesy light output
• Holding magnet output
• Energy Saving function to minimise consumption in standby mode
• Programmable acceleration and deceleration
• Operation in case of absence of power using the backup battery
• Operation with solar power using the ECO-LOGIC system

Motor Overview / Balancing Spring System

Technical Features

• Power supply (Vac - Hz): 230 V~ 50 Hz
• Motor power supply (Vac - Hz):  24 Vdc
• Maximum electric power (W): 240W
• Opening time (s): 5 Seconds for 6 Meter Boom Arm
• Working temperature (°C): Between -20° to +55°
• Duty cycle % - (max. cycles/hour): 80% - (200)

Control Panel

• Digital control unit programmable using three program buttons and display
• Plug-in adaptor for receiver
• ADI connector for APC Infinity WiFi module that allows control of the barrier with the Mobile APP

Dimensions

Universal Boom Gate (Pre-Configured Right Hand Side) Ultra High-Speed 24V DC, 6 Meter Barrier Made in Italy

Double Traffic Lights | Red&Green Trafic Light Flow Control

APOLLO traffic light series with two lights (Red and Green), 24 V AC/DC, vandal-resistant, and IP66.

Used in parking lots, logistic areas, and industrial plants.

Traffic Control Light, Twin, Red & Green

24v Apollo Trafik Light Made in Italy by Stagnoli

Red and Green Dual Traffic Light for Easy Traffic Flow Control to Use Car Parks, Commercial, Residential, Public Events and Organizations)

Technical Specification:

• Number of LEDs: 25
• Brightness: 50Lux
• Lens size: 120mm
• Power supply: 24v
• Protection: IP66 / Vandal-resistant

APC-RR-11 Retro Reflective Sensor

The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.

If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.

The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.


• Up to 11 Metres Infrared beam operating distance


• Only powers on when the command is given to close the gates


• Alignment & Misalignment led to assist in the installation process


• Resin filled for the ultimate weatherproofing

APC Automation Systems FOUR Button Keyring Remote Control

Four-button remote control transmitter used for operating the boom gate system for OPEN - STOP - CLOSE commands. The remote can be paired to other APC boom gates on the same site or diffrent sites using any of the vacant or unused buttons.

External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable. This is a perfect solution when running mains power to the gate is not viable due to costs, difficulty or simply to DIY.

Specifications

Type: Remote External Transformer

Input voltage: 240V AC

Output Voltage: Low Voltage 24v AC

Amperage: 10A

Input connection: Plug With 1m 240AC Pre-Connected Cable

Output connection: 20m Pre-Connected Cable (Extendable up to 80 metres)

Suitability: Outdoor use, 10amp Power-Point
