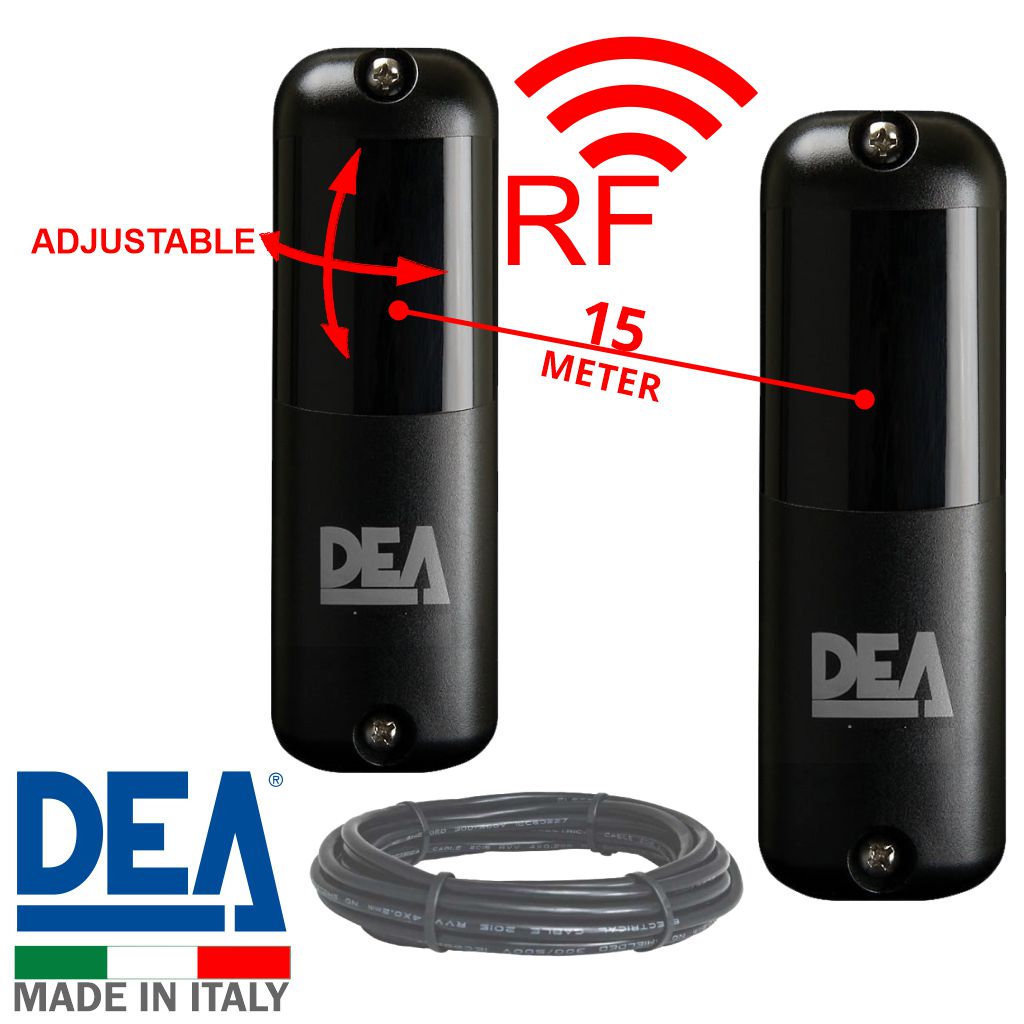

DEA LINEAR/B Photocell Wireless PE Safety Sensor up to 15m Range with 5m Cable Combo| Pair of adjustable photocells (210° Adjustable Rotating Optics) for Automatic Gate Opener System. Garage/Gate Safety Sensor LINEAR/B Safety Beam, Infrared Technology Wireless Gate Safety Sensor, Motion Detector, Wireless PE Gate Safety Beams

DEA LINEAR/B | Wireless PE Safety Sensor for Automatic Gate Opener Systems

Wireless PE Gate Safety Beams, DEA LINEAR/B Photocell | Wireless PE Safety Sensor Pair of adjustable photocells (210° Adjustable Optics) with TX supplied by a Lion battery. Wireless PE Sensor Range up to 15m.

Safety has never been so easy to install – with wireless technology and 210° Adjustable Rotating Optics design! Introducing DEA LINEAR/B Photocell infrared gate safety, PE beams with a wireless transmitter.

DEA LINEAR/B Photocell is easy to install with DIY work, ensuring a safe driveway gate automation system for all installations. With a wireless transmitter and adjustable rotating optics design, tunnelling under the driveway is unnecessary. Install and adjust the beam optics, and you’re away!

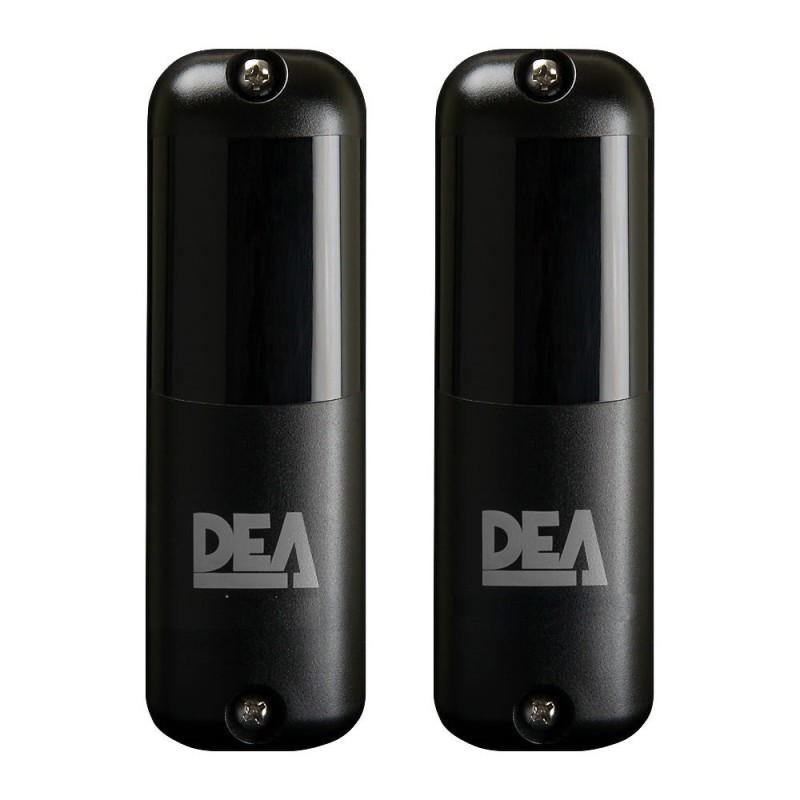

DEA LINEAR/B Photocell Wireless PE Safety Sensors are wall-mounted (LINEAR) external safety accessories that help to make gate automation even more reliable. The Wireless PE Safety Sensor comes in pairs in the box.

LINEAR/B Photocell Box Includes:
“TX” and “RX” Optics,
Lithium Battery(3,6V 7Ah, C Size) for TX Wireless Optik,
Assembly Parts,
and an Instructions Document.

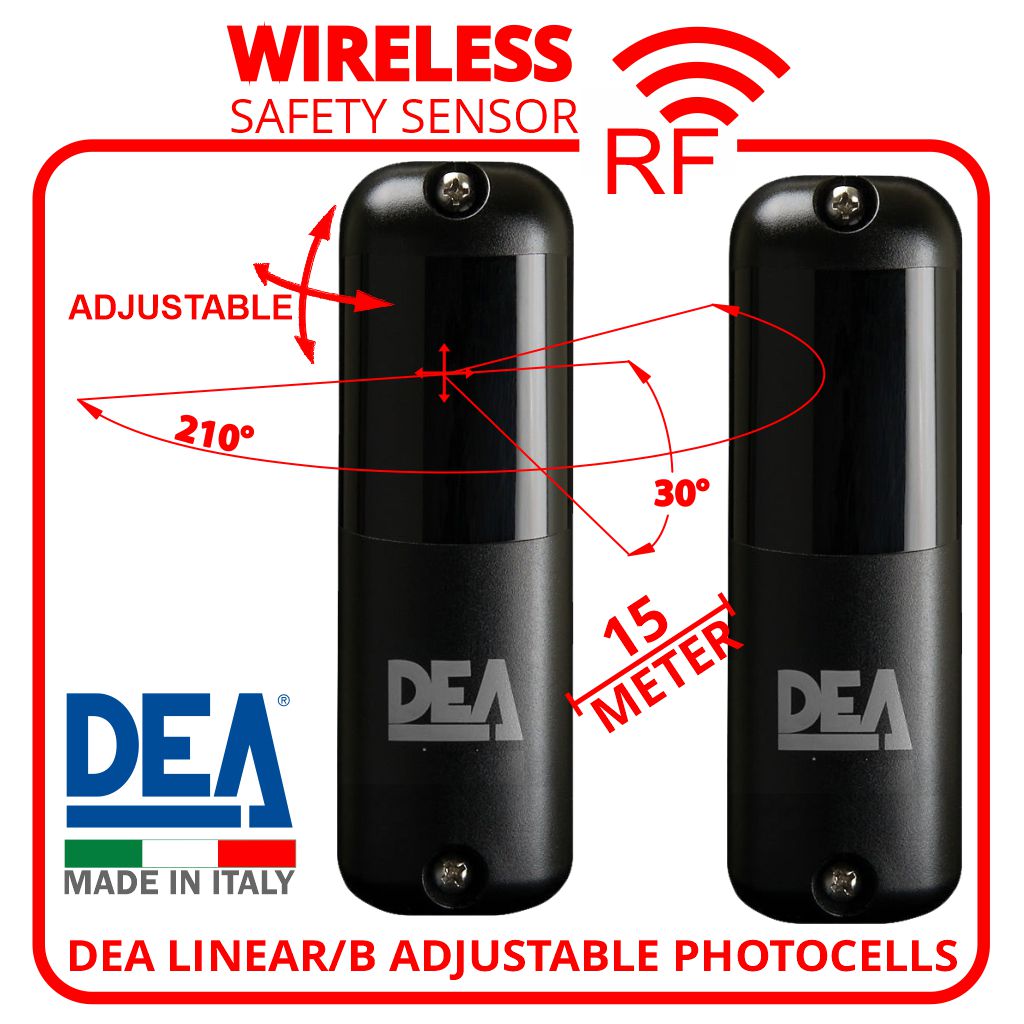

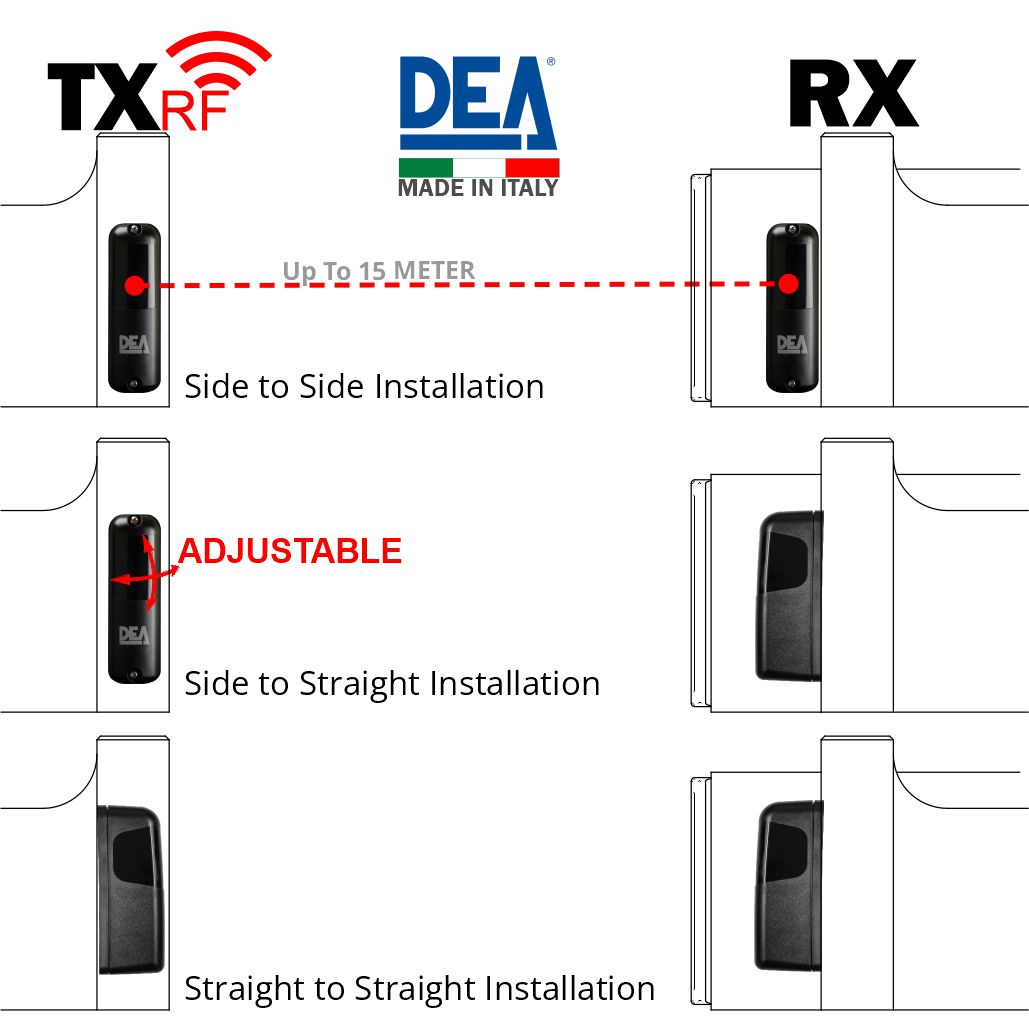

The LINEAR/B Wireless PE Safety Sensor is equipped with adjustable optics, which are practical when photocells are not perfectly aligned. The photocells allow rotation to 210° horizontally and 30° vertically. This sensor can be fixed to surfaces that typically prevent the correct alignment between “TX” and “RX.”

Wireless PE Safety Sensor DEA LINEAR/B is an infrared communication device used to avoid using connection cables for sensitive profiles applied on the gate mobile part. The battery-powered wireless transmitter device is installed on the mobile part and connected to the sensitive edge, whose condition is constantly monitored and communicated to the receiver (mounted on the fixed part). If you enable the edge, that communication is interrupted, and the receiver provides for opening the contact connected to the gate control board.

LINEAR/B has a motion sensor on the transmitter, allowing both to take action only at the beginning of each manoeuvre, allowing a considerable battery saving. When the gate is stationary, the transmitter will still work, noting any obstacles, however, with a greater delay time. For More Details, See “Installation instructions and wiring document of the DEA LINEAR/B Photocell.”

LINEAR/B may also be used (without a sensitive edge) as a simple presence detector, “D” type, as per Standard EN 12453. The photocells allow rotation to 210° horizontally and 30° vertically. This can be fixed to surfaces that generally prevent the correct alignment between “TX” and “RX.”

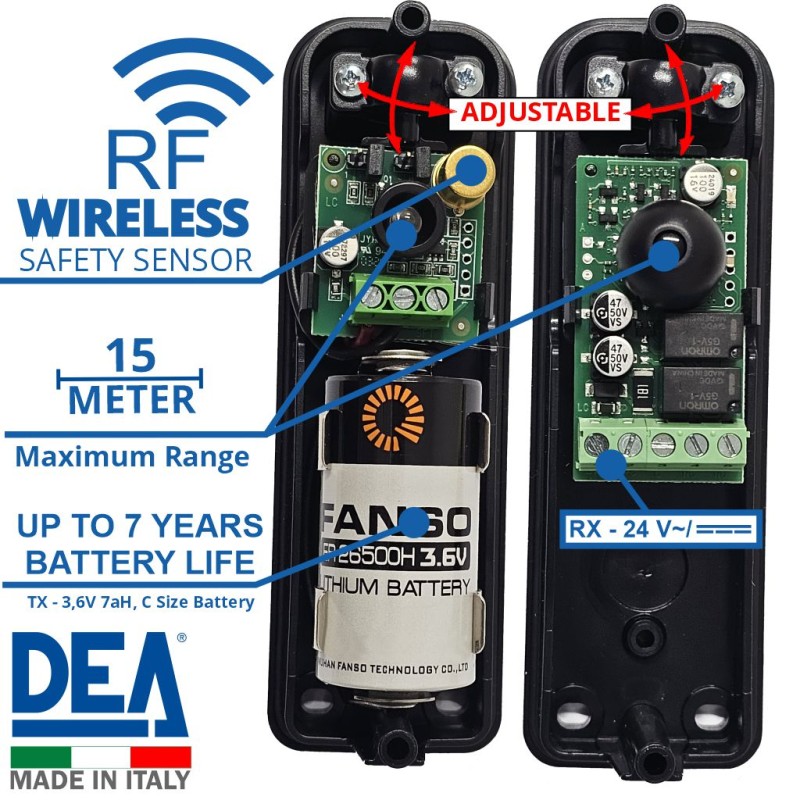

“TX” Optic: Works with Wireless Connection, Lithium Battery(3,6V 7Ah, C Size) (Included)

“RX” Optic: Works With Wire Connection, 24V Power

BATTERY POWER SUPPLY
Wireless PE Safety Sensor DEA LINEAR/B photocells are powered by a battery(3,6V 7Ah, C Size: included) and cover a maximum range of up to 15m.

WEATHERPROOF
DEA LINEAR/B Photocell Wireless Safety Sensor is designed to work in weather conditions such as morning dew, rain, fog, and direct sunlight. Protection Degree: IP54

Technical Specifications

Power supply:
TX - 3,6V 7Ah, C size battery (wireless connection)
RX - 24V (wire connection)

Battery life :
ASSEMBLY ON A MOBILE PART (JP1 closed)
Residential use(20 manoeuvres/day) | Gate up to 7m (JP2 opened) | 7 years
Intensive use (100 manoeuvres/day) | Gate up to 15m (JP2 closed) | 3 years
ASSEMBLY ON A FIX PART (JP1 open)
Gate up to 7m (JP2 opened) | 2 years
Gate up to 15m (JP2 closed) | 1 year

“RX” Absorption: 40 mA

Contacts Capacity: 500 mA max 24V

Assured Distance:
7 m (with JP2 opened on “TX”)
15 m (with JP2 closed on “TX”)

Maximum Length of Connection Cables: 50 m cable 2 x 0,5mm

Protection Degree: IP54

Operating Temperature: -20÷55 °C

Dimensions / Weight: 125 x 40 x 44 mm /150 g

Certificates

LINEAR/B is a CE-marked product. The DEA System assures the conformity of the product to the European Directives 2014/30/CE “electromagnetic compatibility” (EN 61000-6-2 :2005; EN 61000-6-3 :2007 + A1:2011).
DEA System also grants quality and conformity to rule 2002/95/CE (RoHS) of materials used for the product assembly.
