Wireless Vehicle Detection Systems | Commercial Inground eLoop - Exit Mode

Introducing a new concept in wireless vehicle detection. The inground eLoop replaces traditional wired inductive loops, saving time and money while increasing reliability.

Commercial Wireless Weicle Loop Detection Sensor

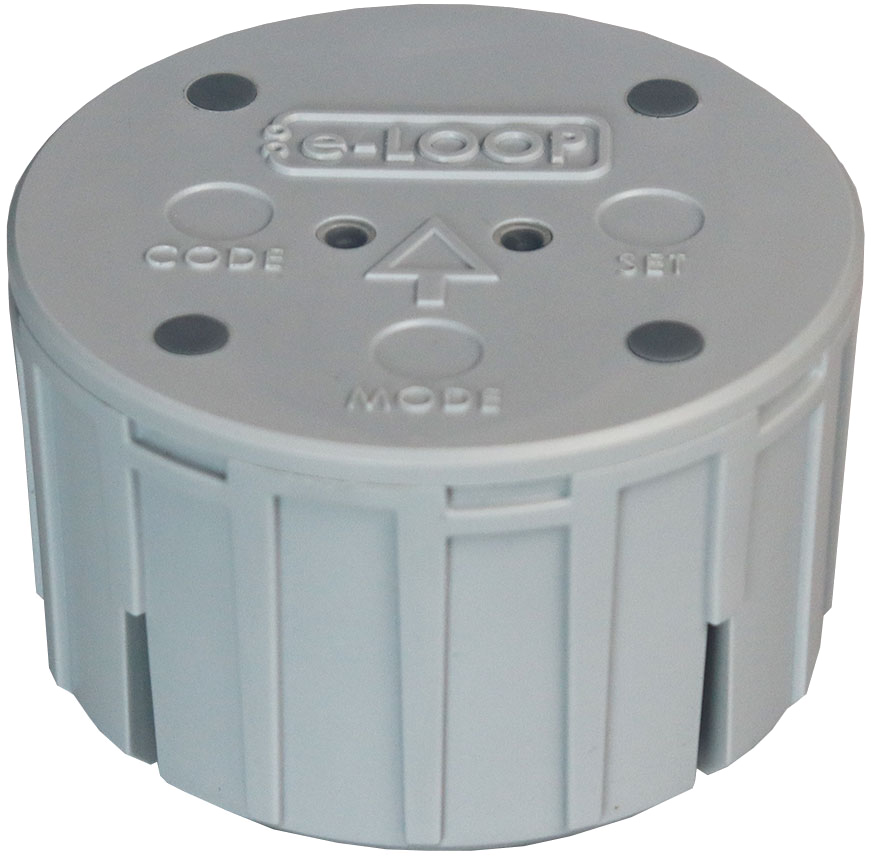

Inground eLoop Exit Mode

The Commercial eLoop Inground Wireless Vehicle Detection Sensor System uses magnetometer sensors to detect the presence of oncoming vehicles. These detections are transmitted to a nearby transceiver for gate activation. The sensors are installed in the ground(89-92mm hole, 65-70mm deep) of entry or exit passages, contain four replaceable lithium batteries, and can withstand almost any vehicle.

Installation in 3 simple steps (in less than 30 minutes.)

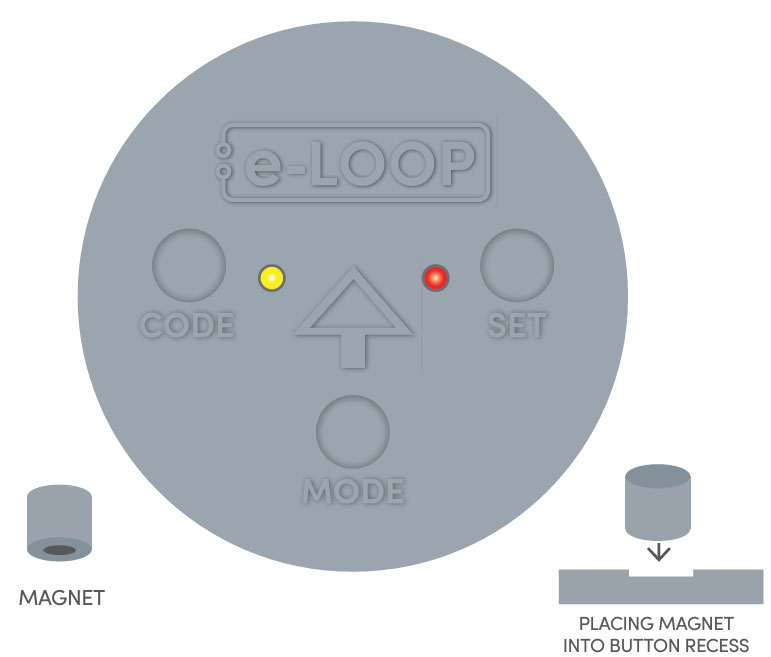

1. Coding e-LOOP into e-Trans 50
2. Fitting e-LOOP
3. Calibrate e-LOOP

Functions | Commercial Wireless Vehicle Sensor | inground e-Loop Detector

Lower power consumption

3-axis magnetometer for vehicle detection

• 8 Hz sampling rate
• Auto-calibration
• Exit/Entry detection mode
• Range up to 30 meters

Fast and simple installation

• Quick non-permanent installation

Up to 10-year battery life

• Compact design
• Compatible with various gates

Reliable radio communications with transceiver

• Reliable radio communication
• High-security 128-bit AES Encryption

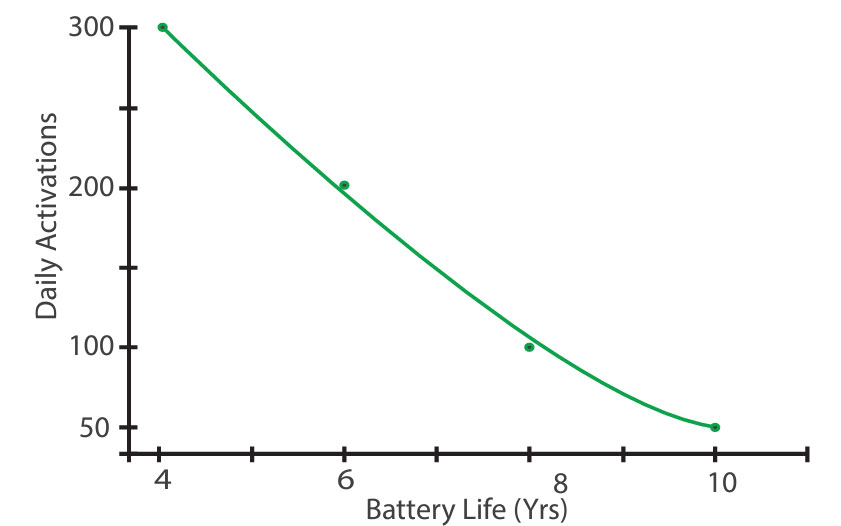

Battery Life vs Daily Activation

Note: Battery life depends on many factors, including daily activations, time used per activation, radar range and external conditions.

Inground e-Loop Wireless Vehicle Detection Systems

The Inground e-Loop commercial is the epitome of perfection regarding wireless vehicle detection systems designed specifically for commercial settings.

With its wireless nature, installation becomes a breeze, eliminating the need for complex wiring systems and minimizing disruption to the existing infrastructure. Moreover, the system's efficient energy consumption and low maintenance needs make it a cost-effective solution that ensures long-term reliability.

Additionally, the inground e-Loop commercial is available with a convenient presence mode, which intelligently keeps gates and barriers open for an extended duration when longer vehicles are in motion over the detection area. This advanced functionality enhances safety and efficiency by minimizing interruptions and reducing the risk of collisions, further solidifying its suitability for commercial environments.

Features | New Generation Wireless Vehicle Loop Detector (Inground eLoop Exit Mode)

• Quick and easy installation.
• Exit mode - loop sensor.
• 14500 mA battery provides up to 6-10 years of battery life (depending on usage and mode).
• Made of high-impact plastic (10-tonne static load capacity).
• Small compact design – Dimensions 88*88*55mm (IP68 ingress protection).
• High-security 128-bit encryption.
• Range up to 30 metres.

Power, Physical and Environment

Power: 1 * 3.6 V 14500ma

Dimensions: 88*88*55mm

Weight: 300g

Environment: designed for inground mounting

Protection: IP68 ingress

Operating Temp : -20° to 80° C

Standby Power: 14µA

Activation Power: 50mA

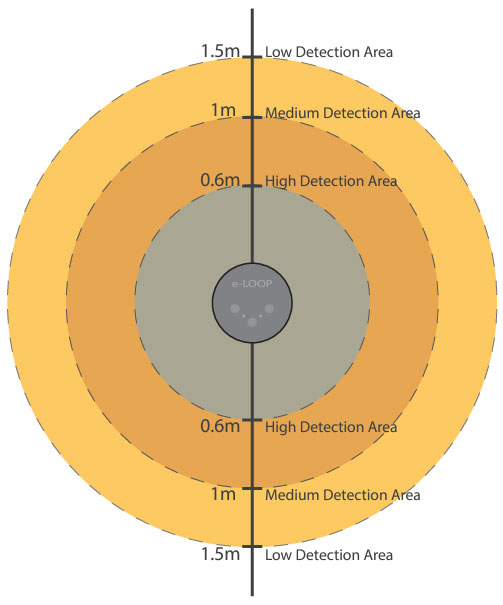

Magnetometer Detection Area

E-Trans-50 Single Channel Transceiver

Wireless access control system for gate and door applications.

Featuring a compact design with exceptional range, the e-Trans-50 is designed to manage access control for home and commercial systems.

A long-range wireless transceiver that can work with both gates or automatic doors. The small design allows it to be easily installed without compromising on the exceptional range.

Specifications

Voltage: 10-36V DC

Current draw standby: 4.5 m/a

Current draw active: 30 m/a

Frequency: 433.39 MHz

Remote storage: 50 remotes, 4 x e-Loops, 4 x keypads, 4 x entry buttons

Relay: 1-amp contact rating, COM and N/O connections x 1 relay

Modes: Pulse, Latch and Hold

FEATURES

• Compact design with an exceptional range

• SMA connector standard for external long-range antenna connection

• Wide Voltage Range: 10-36V DC

• Exceptionally low Current draw: standby 4.5 m/a, active 30 m/a

• Frequency: 433.39 MHz

• Remote storage: 50 remotes, 2 x Keypads, 2 x Entry Buttons

• Relay: 1-amp contact rating, COM and N/O connections x 1 relay

• Multiple Modes: Pulse, Latch and Hold
