Extra Heavy Duty 900kg Sliding Gate Opener Kit | Italian Made by DEA. Automatic Gate Opener System with All-Metal Gear Strong Sliding Gate Automation Motor and Magnetic Limits. Suitable sliding gate on sloped driveways.

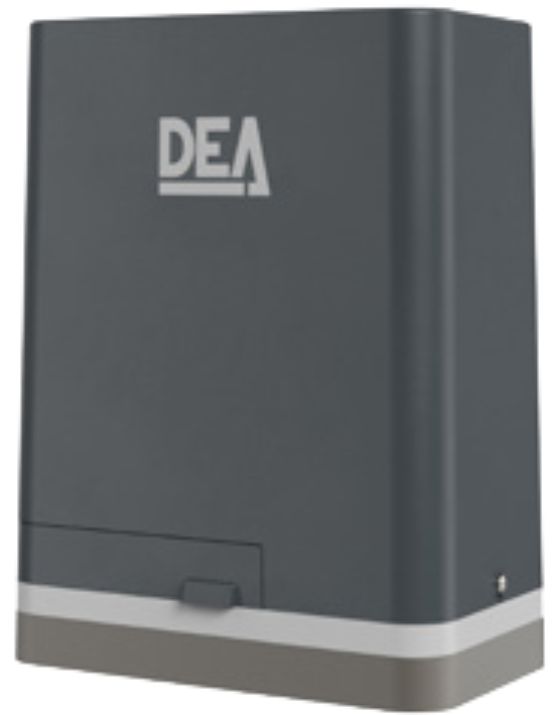

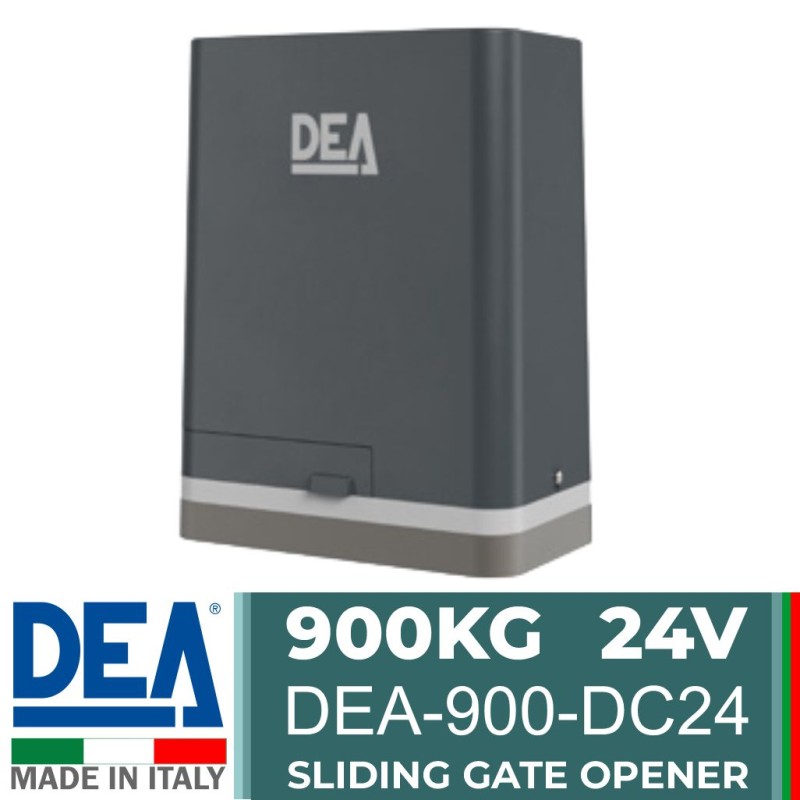

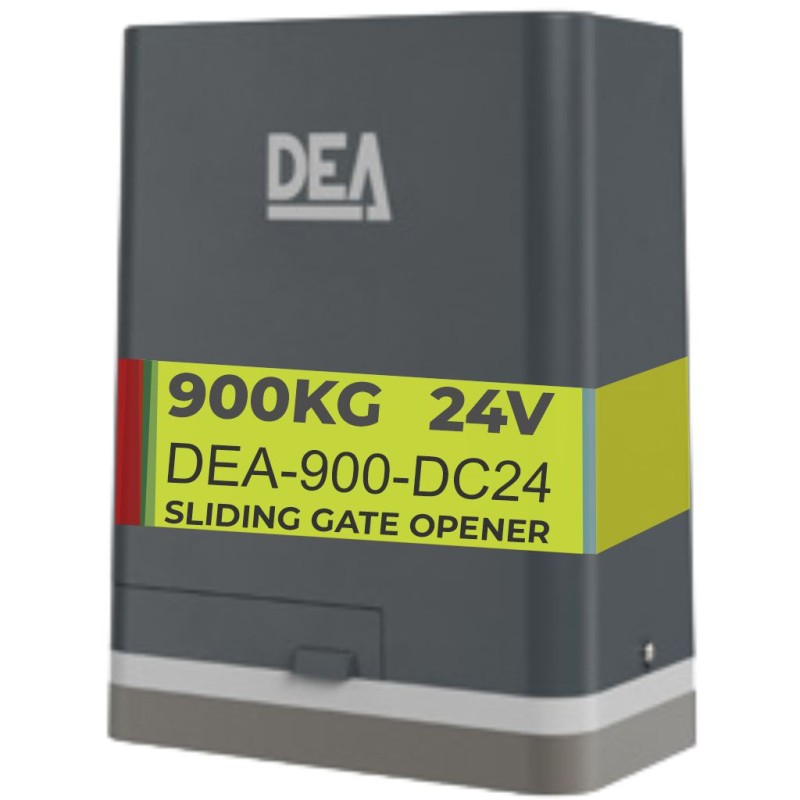

900 KG Sliding Gate Opener DEA-900-DC24, Extra Heavy Duty 24V Italian Made Sliding Gate Motor Overview

At a glance | The Sliding Gate Opener/Closer

The sliding gate opener DEA-900 is an extra heavy-duty all-metal gear that has full programmability using the onboard control board with an LCD interface. It has a capacity of 10m and 900 kg, and is suitable for residential usage with simple setups and commercial sites and a suitable sliding gate on sloped driveways. See the full details below.

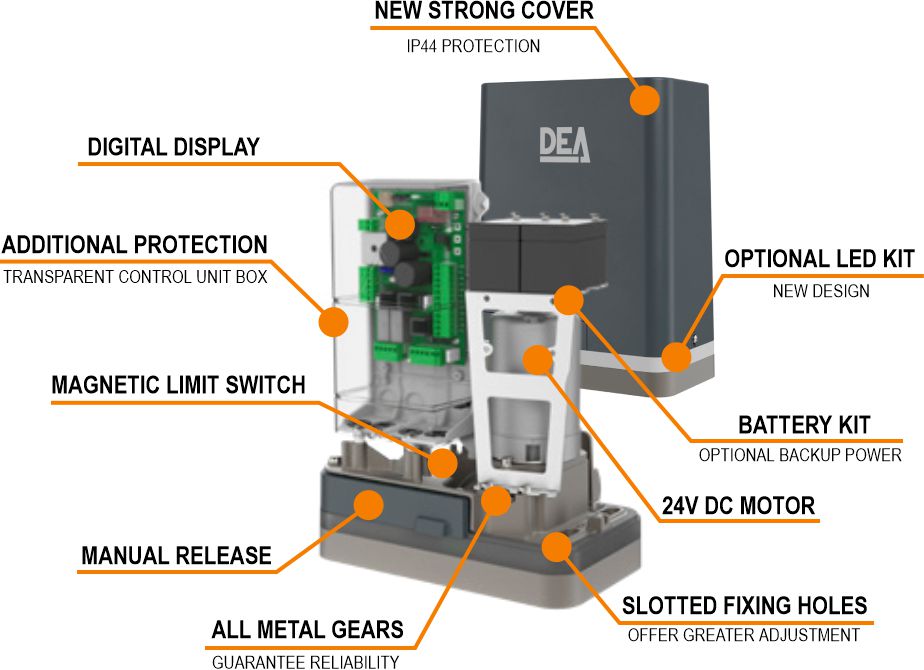

Electric Gate Automation System Features

• 900KG Capacity
• Suitable sliding gate on sloped driveways

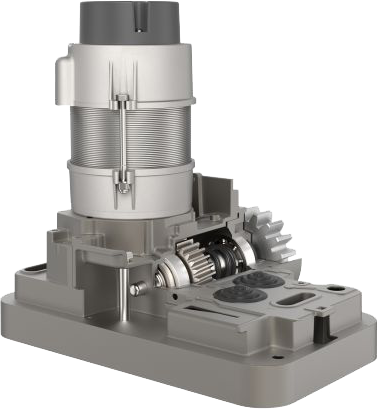

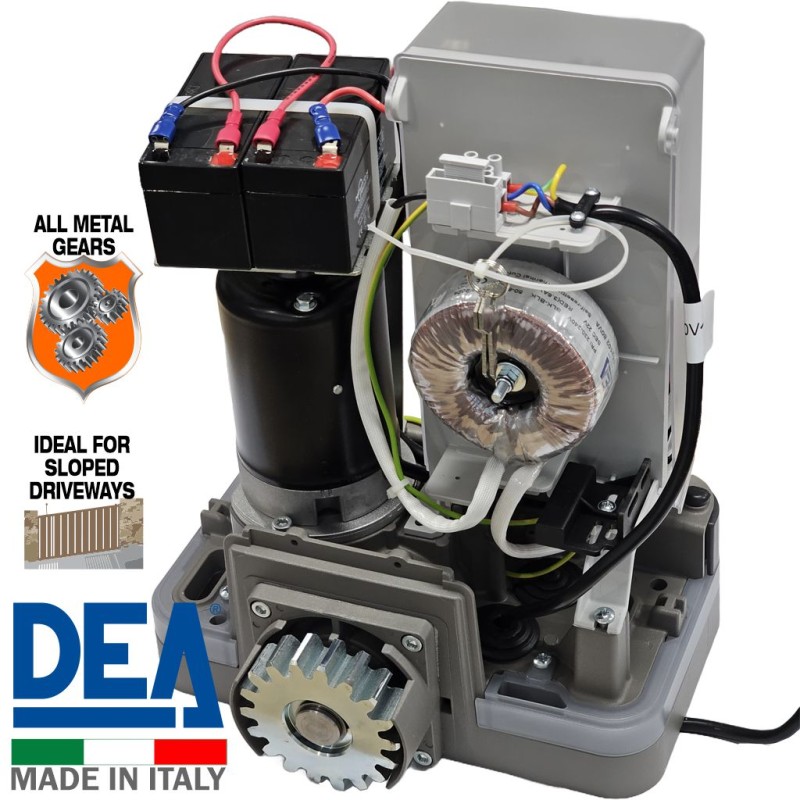

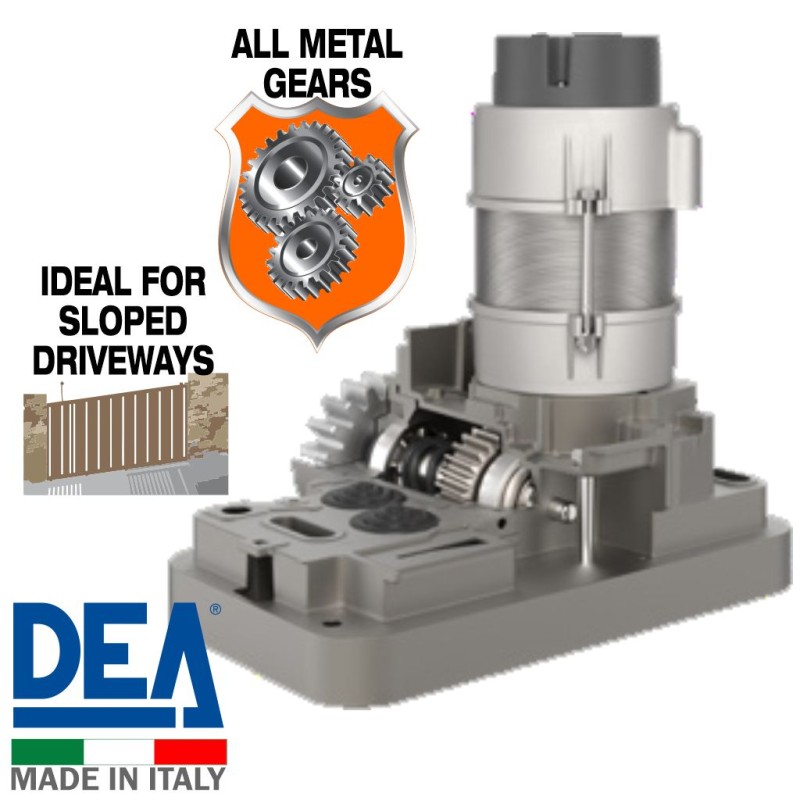

• Extra heavy-duty all-metal gear is strong and durable for long-lasting use.
• 10m Ultra-long sliding gate capacity
• The release system is now protected for increased reliability.
• A new transparent control unit box with an easy-open system is also available.
• LCD Display (No DIP Switches or Dials)
• New design with the possibility of installing an LED strip (optional LED kit)
• New slotted fixing holes offer more significant adjustment during installation, ensuring backward compatibility.
• New ABS crankcase for better weather resistance.
• Increased degree of protection (IP44)
• The DEA-900 has a new magnetic limit switch system, consisting of a new technology sensor and a set of magnets attached to the multi-adjustable rack.
• DEA-900 Automatic Sliding Gate Motors are made with high-quality materials, such as steel and bronze, guaranteeing long-term reliability.
• Self-locking with magnetic limit switch
• Speed adjustment and slow down in opening and closing
• Anti-crashing safety device

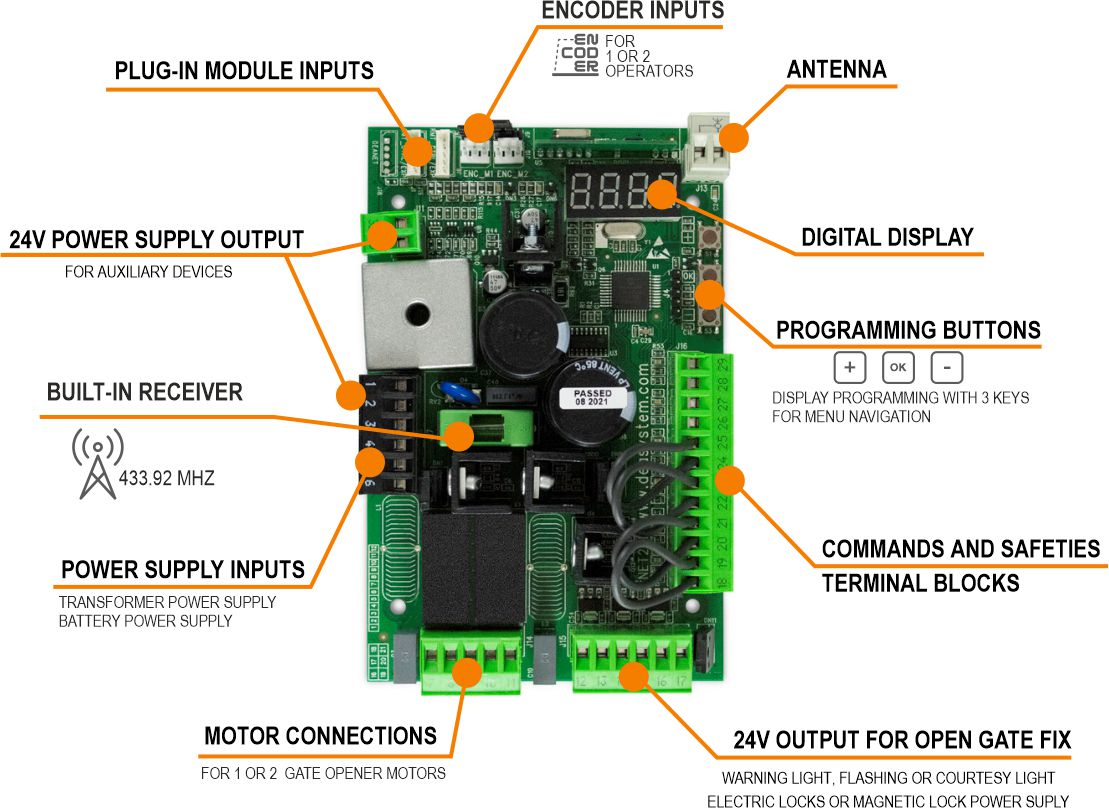

Control Board Overview

• Universal control board for managing 1 or 2 motors in 24v.
• 6 inputs | 5 Outputs
• Up to 100 Remote Controls
• 433.92 MHz Receiver

• Display programming with three keys for menu navigation
• A wizard for learning the motor stroke
• List of parameters with direct access
• Encoder input for 1 or 2 operators
• Programmable inputs with input diagnostics visible on the display
• Built-in 433.92 MHz receiver
• Standard speed run and slowdown management
• Reset the control board to be able to reuse it with another automation
• Removable terminal blocks
• Programmable outputs for:
  • safety self-test
  • operation of the electric lock
  • monostable, bistable or timed
• Possibility to set the type of automation to have a specific list of parameters (sliding, swinging, tilting, sectional, barriers, bollards)

Accessories Compatibility and Controlling Options | DEA-900 Sliding Gate Automation

• Constant DC Accessories Output
• Automatic Sliding Gate Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
• Remote controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and
• Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (APP-Based Control)
• GSM Control Systems (Mobile Call/SMS-based Control)

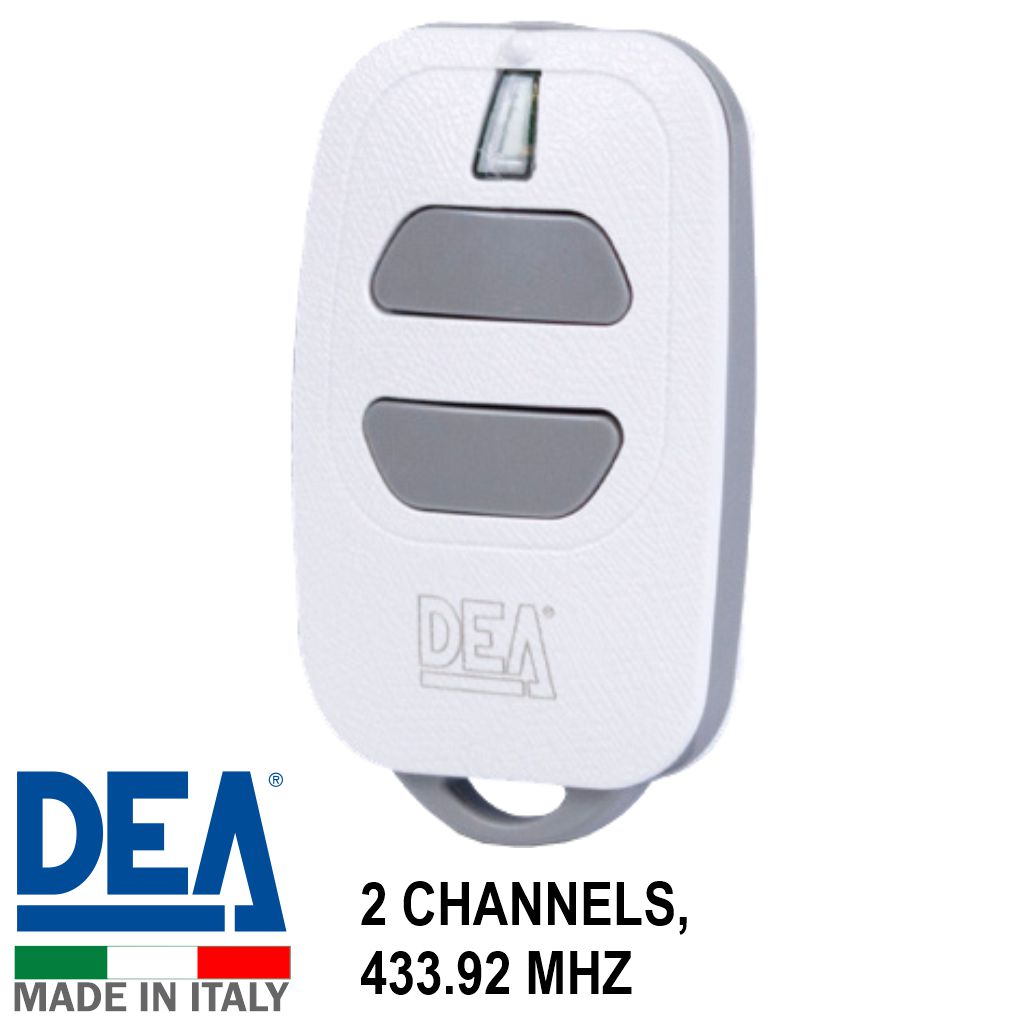

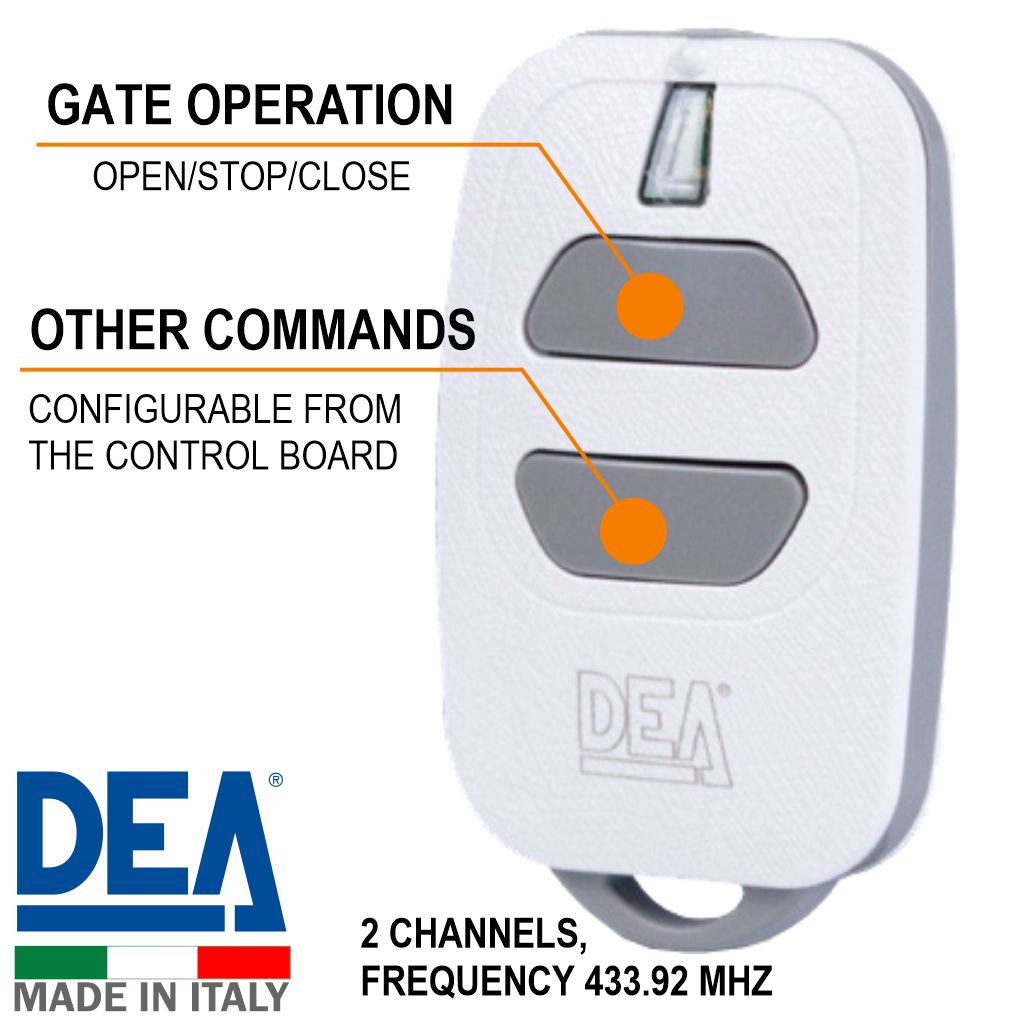

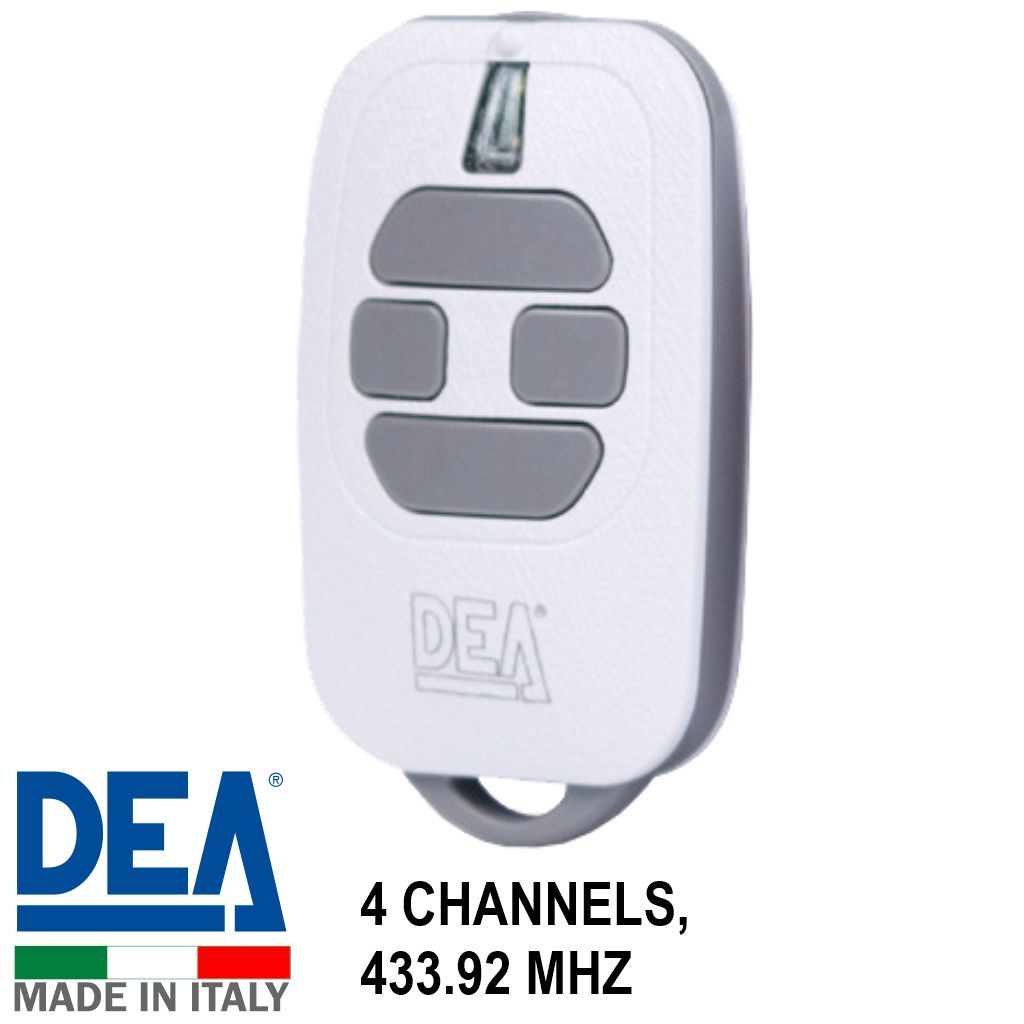

Remote Control Features

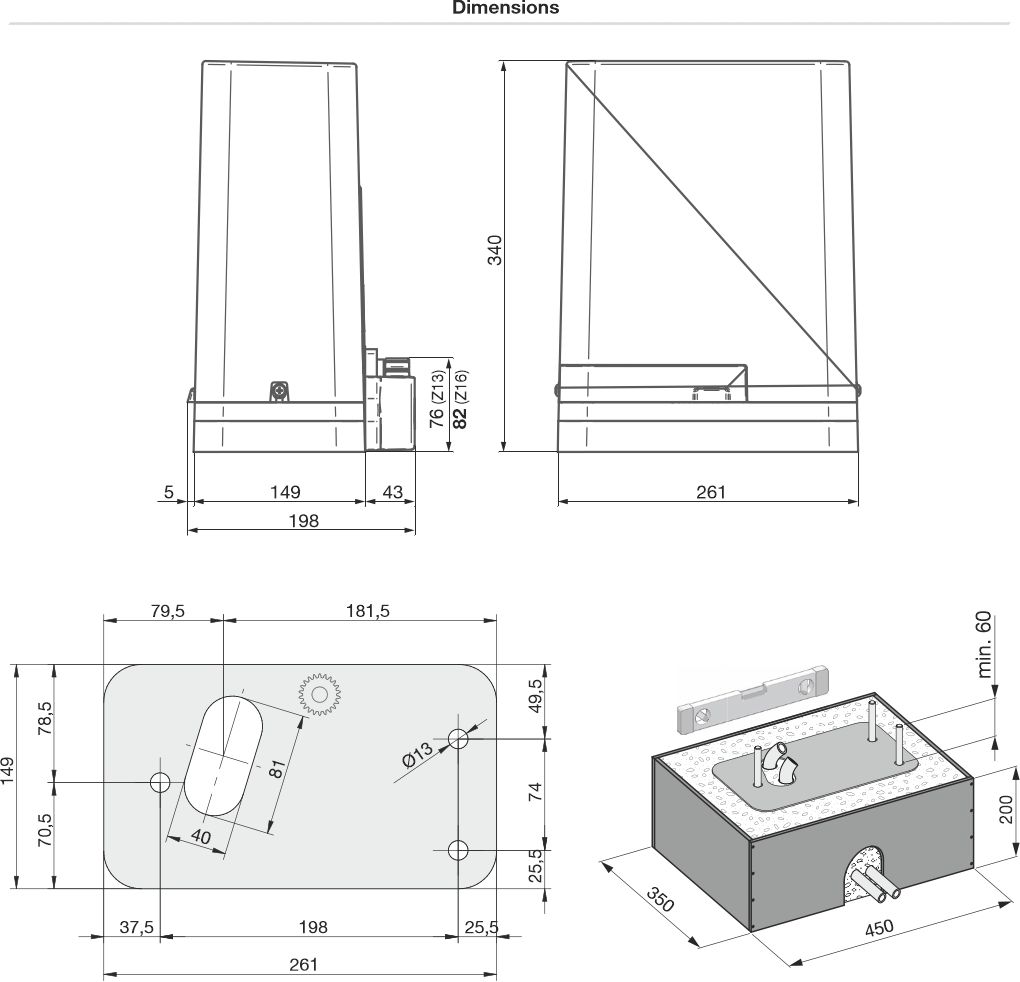

Dimensions | Italian Made DEA-900 Electric Sliding Gate Motor

Specifications

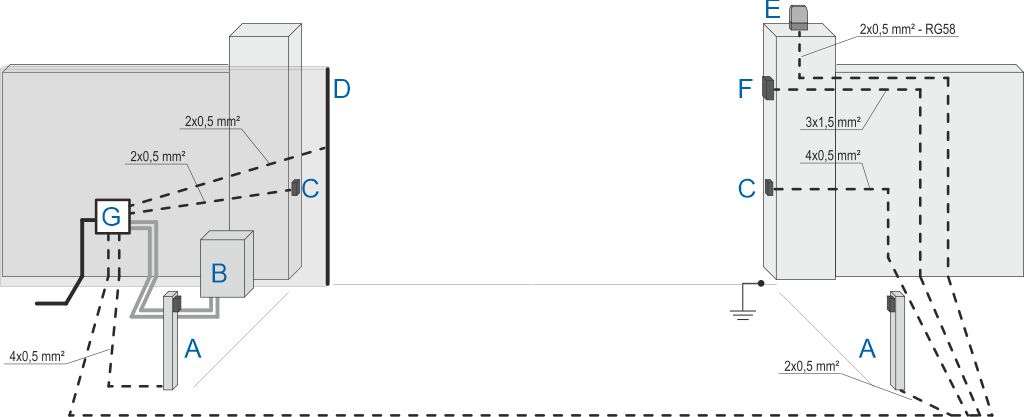

Wiring Example

(2 x 50 CM) Nylon Gear Racks 1 Meter Pack | Made in Italy by Stagnoli

Interlocking Gear Racks Made in Italy by Stagnoli

The Keyed Interlocking Modular Nylon Gear Rack is Compatible with All Sliding Gate Automation

Stagnoli, Italy invented the nylon racks and has been manufacturing nylon racks since 1981. The advantage of nylon racks is no lubrication, rust-free and silent. Furthermore, with the nylon rack, there is no need to carry out any welding, which is instead required for iron racks and which involves more machining in the assembly process. GR50 is a quality product and is completely Made in Italy.

Dimensions of Modular Nylon Gear Racks | Sliding Gate Hardware

This gear rack nylon coated with steel core, strong and quiet, is compatible with all sliding gate automation, and is easy DIY install.

Modular gear racks kit includes;

A box with 2 nylon gear racks measuring 50 cm, 4 self-tapping and self-piercing screws, and 4 washers in galvanized steel. (Made in Italy by Stagnoli)

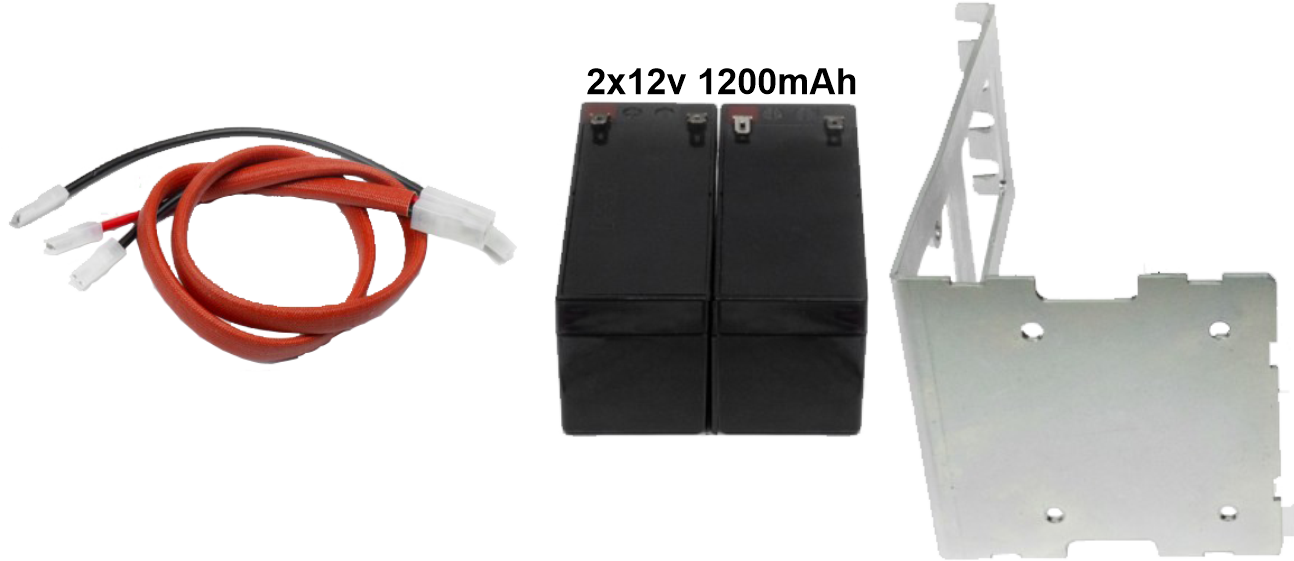

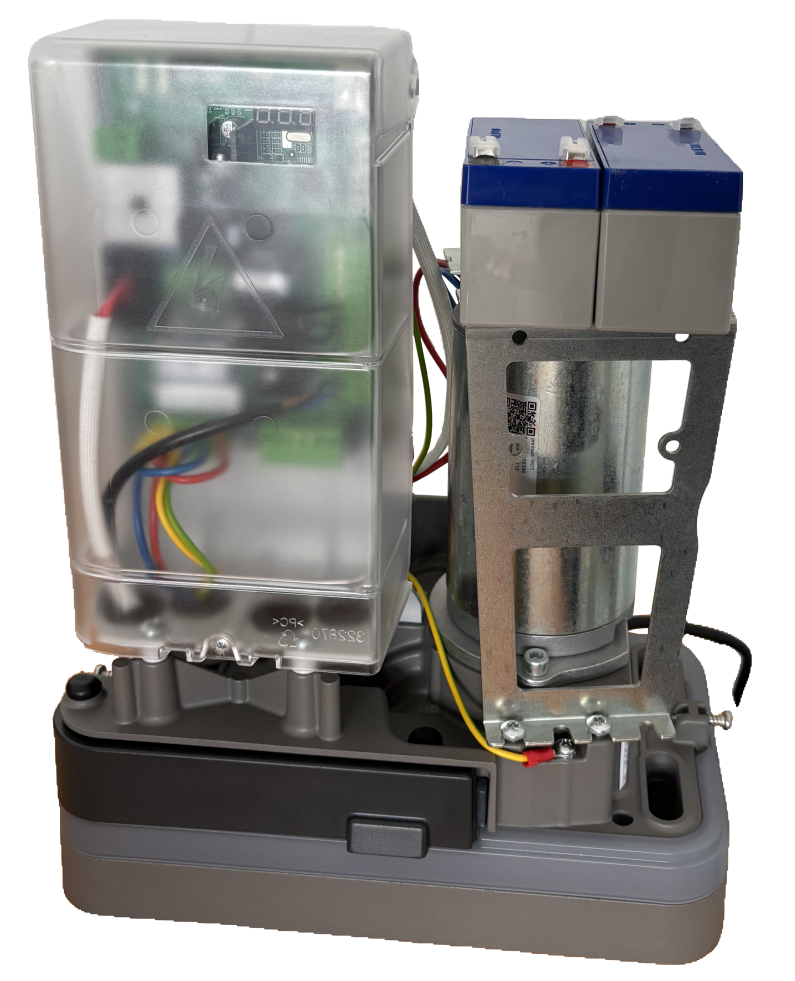

Battery Backup Kit For
DEA 600kg / 900kg / 1400kg Sliding Gate Kit

24v - 2x12v 1.2Ah rechargeable battery kit, complete with cables and mounting bracket

(Pre-installed when purchased with the Gate Opener Kits)

Technical Features | Battery charger for DEA Sliding Gate Automation.
