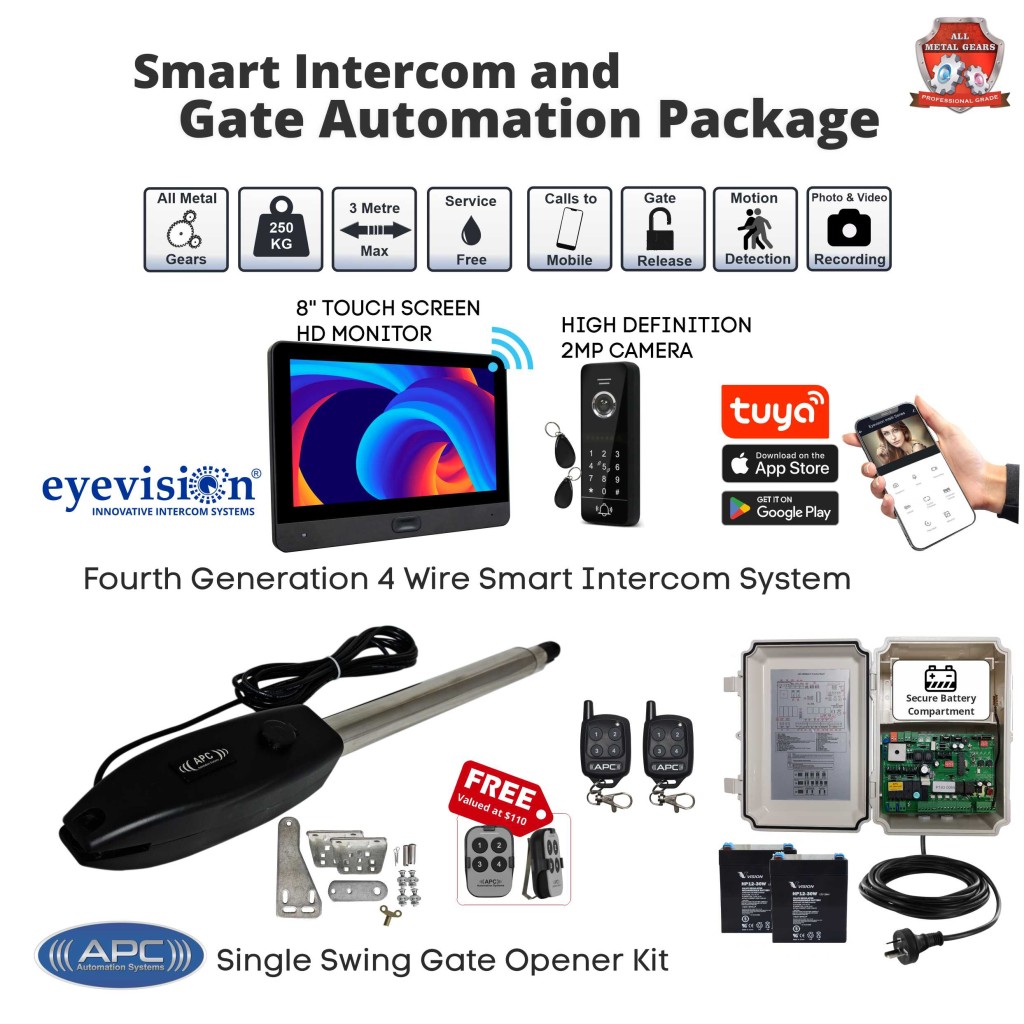

Heavy Duty Slimline Stainless Steel Single Swing Gate Opener with T575 Linear Actuator and HD Series WiFi Intercom Combo Smart Gate Automation System

A heavy-duty 24V motor with powerful and quiet operation is comprised of cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance. In an emergency situation, manual override using the supplied butterfly key is easy. The system can handle light and heavy gates up to 250kg maximum weight or up to 3m maximum length.

Emergency Clutch Override

Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.

All Metal Gears

Powerful and whisper-quiet 24V motor and all metal gears

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point

System Features

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes


Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output

Supplied with the automation kit the back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.

The Eyevision® Intelli HD Series four-wire intercom is a feature-rich state-of-the-art intercom system boasting every feature requested from an intercom system (and much more...).

Any visitor calls can be received by the APP on your smartphone or tablet along with the monitor simultaneously with a large feature set from the APP and the indoor monitor. No extra modules are required to connect to the internet as the indoor monitor has built-in Wi-Fi and is able to connect directly to your home's 2.4GHZ Wi-Fi connection.

Two outdoor stations can be connected for the front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home, allowing for the visitor's call to be answered from any station and transferred to a different station if required.

The Intelli series can have a common release connected directly to the monitor, allowing for simultaneous front gate - front door release, making it easier to let a guest in without switching between menus or running to the door.

• Supports up to TWO Outdoor Stations, each with its own electric striker/gate release feature
• Supports up to SIX indoor Monitors
• Common independent electric striker/automatic gate release feature
• Supports Motion Detection for Outdoor Stations (uses its own built-in sensor)

• Built-in WiFi To Connect To Your Home Internet Connection
• Tempered Glass With Touch Sensitive Buttons
• Simple Easy To Use User Interface
• Free To Use Tuya Smart App For All Modern Mobile Phones And Tablets
• 11 Languages To Choose From
• Ultra Slim 18mm Depth
• 8" TFT LCD Color Touchscreen Monitor 1024x600 HD Resolution
• Built-in Mute Switch
• Intercom Calls Directly To Smartphone(APP) And Monitor Simultaneously
• Intercom Internal Call And Call Transfer
• Calendar Screen (Time And Date) Option Before Entering The Main Menu
• Set Scheduled Ring Volumes For Morning, Afternoon, Evening And Night
• Can Enable/disable Ringtone At The Outdoor Station

Special Features (Micro SD Required)

• Automatic Recording For Motion Detection and Alarm Events
• Digital Photo Frame on Standby
• MP3 Player
• Away Voice Message (Voicemail System)
• Custom Ringtones

• 120° 2MP HD Camera
• Speaker and Microphone (Real Time Two-Way Communication via Smartphone(APP) and/or Indoor Monitor)
• Keypad (Secure Access with PIN Code)
• Call Button (Visitor calls can be received by the APP on your smartphone or tablet along with the indoor monitor simultaneously)
• Night Vision (The camera can capture high-quality images and video in low-light or completely dark environments With built-in IR LEDs)
• Motion Detection (Built-in motion detection allows the outdoor station camera to detect and capture motion within their field of view.)
• IC Tag Reader (Secure IC Tag Access Management)
• Weatherproof (IP65 Waterproof Durable Metal Case Outdoor Smart Intercom Camera)
• 4 Wire Video Keypad Outdoor Station

(IC Tags & Power Adapter Supplied)

A fourth-generation HD intercom system is an advanced communication system that utilizes high-definition video and audio communication technology. These systems can be used in residential, commercial, and industrial settings to enhance security, manage access control, and enable seamless communication with visitors on-premises. With This intercom system, you will get the latest advancements in intercom technology, including improved video quality, enhanced connectivity, and additional features such as mobile app integration and remote secure access management capabilities.

* Suitable with Eyevision® Intelli HD Series Indoor HD Monitor Options
   (EV-HD-WF8, V-HD-WF8-WH, V-HD-WF10)

* Click here to see Eyevision® Intelli HD Series Indoor HD Monitor Options and Packages

Outdoor Station Features

• Ultra-narrow 45mm Width Fits Onto any Post, Pier or Fence
• 2MP HD Camera (Full HD 1080P High Definition)
• 120° Lense (Ultra Vide Angle)
• 45° Wedge Bracket for best mounting direction
• Built-in Keypad with common PIN CODE system
• Built-in IC Tag/Card Reader
• Up to 100 Users when using IC Tags (allows for individual User ID's and PIN Codes)
• Lockout feature after too many incorrect PIN/IC tag uses
• Supports Exit Buttons
• Supports Fail Secure and Fail Safe Electric Strikers
• Supports Automatic Gate Release

45° Angle Wedge



The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing, and the guest may be standing to its left or right side.

The wedge is a universal mount allowing for both left-facing and right-facing setups.
