Product SKU: BH23-HS-5M-DC-SFK
Italian-Made Roger Technology Brushless Ultra High-Speed Swing Gate Motor
| Max. 2.5M or 250KG Each Leaf (5m Opening for Double Swing Gates) |
| Super Intensive Use |
Ultra High-Speed 100% Duty Cycle Brushless Electric Gate Opener With Mechanical Stopper in Opening and Closing Limits

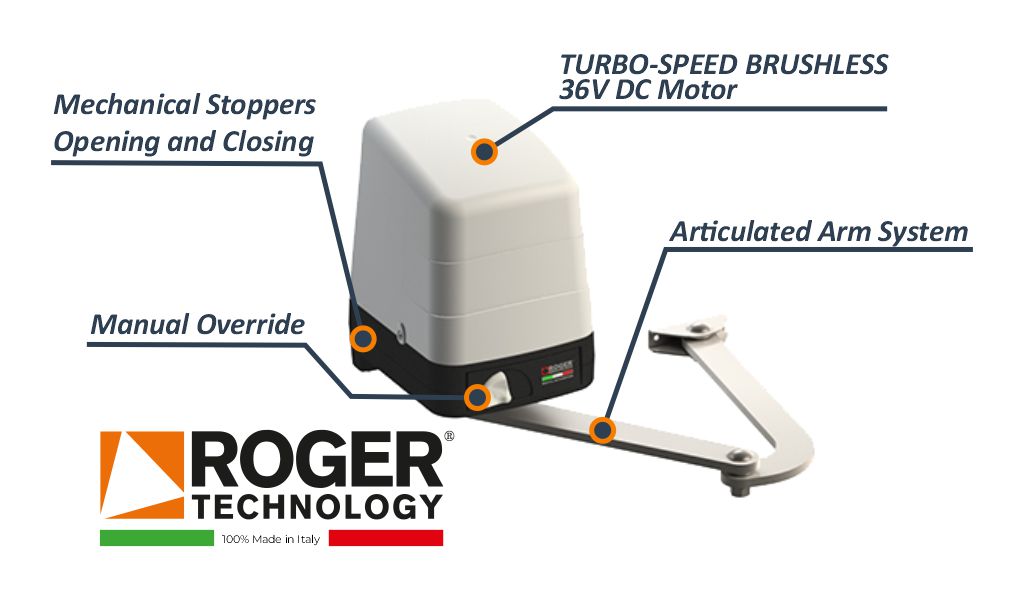

Electromechanical actuator TURBO-SPEED BRUSHLESS, 36V low voltage, super intensive use, with native encoder onboard, irreversible, swing gate opener with mechanical stopper in opening and closing.
It's simple to adjust the mechanical stopper when opening and closing.

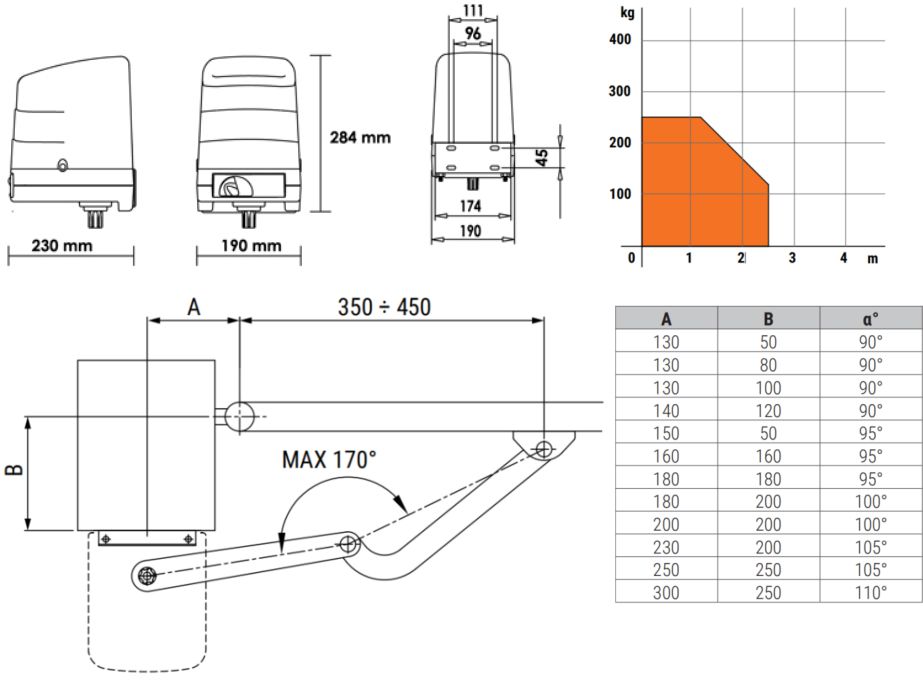

BH23/252/HS is an electromechanical articulated motor designed for swing gates. It features a brushless high-speed motor, low voltage operation, super intensive use capability, a native encoder, and irreversible operation, making it ideal for heavy-duty applications.
The BH23/252/HS has a maneuver speed of 1.5-4 RPM and an opening time of 10-18 seconds at 90 degrees. It is an irreversible motor, meaning it cannot be manually opened.
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 36V |
| Power rating: | 160W |
| Frequency of use: | Intensive use |
| Torque: | 50 - 230 Nm |
| Operating temperature: | -20 C° +55 C° |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 1.5 - 4 Rpm |
| Opening time: | 10 - 18 s |
| Limit switch: | Mechanical stopper in opening and closing |
| Encoder: | Digital native encoder SENSORLESS 48 PPR |
| Operating cycles per day (opening/closing - 24 hours, no stop): |
1200 |
The Roger Technology 36V EDGE1/BOX Swing Gate Digital Control Board for BRUSHLESS Motor with Weatherproof Plastic Control Box.
| 100% Italian Made |
The 36 V EDGE1 control unit controls 1 or 2 ROGER brushless motors in the sensorless mode for applications on large-sized or heavy gate wings.
The control board is protected with a cover to avoid insect damage (the most significant cause of control board failure in Australia).
| Power line supply: | 230V AC - 50 Hz |
| Operating temperature: | -10+55 C° |
| Protection level: | IP54 |
| N. motors activated: | 2 Brushless Motor |
| Max power per motor: | 250W |
| Max courtesy light charge: | 100W 230V AC - 40W 24V AC/DC |
| Max power gate open light: | 3W (24V DC) |
| Max voltage accessories output: | 20W (24V DC) |
| Electrical-Lock max power: | 15W (12V DC) |
| Flashlight voltage: | 24V DC |
| Max flashing light charge: | 25W |
| Battery: | Optional |
| Maximum dimension product in mm (L x W x H): | 330 x 230 x 115 |
| Product weight packed (Kg): | 5,8 |

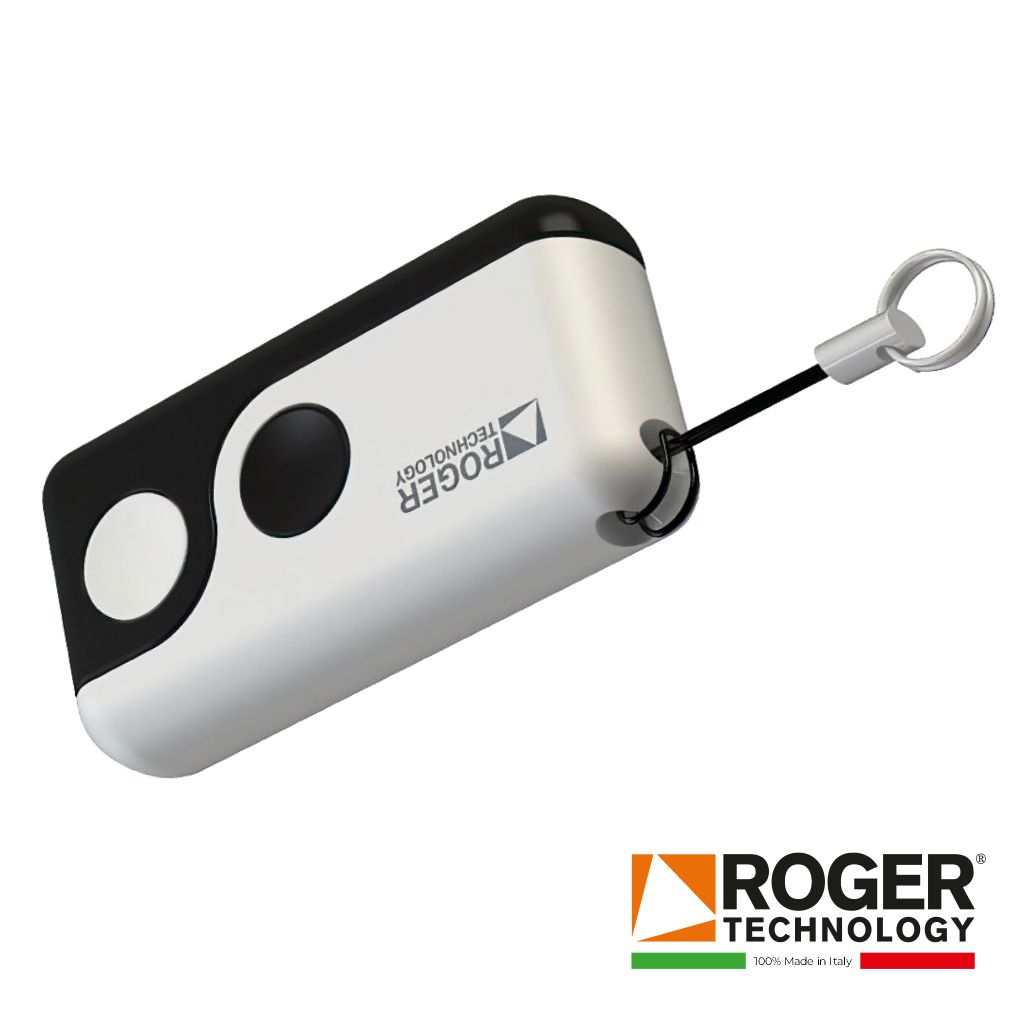

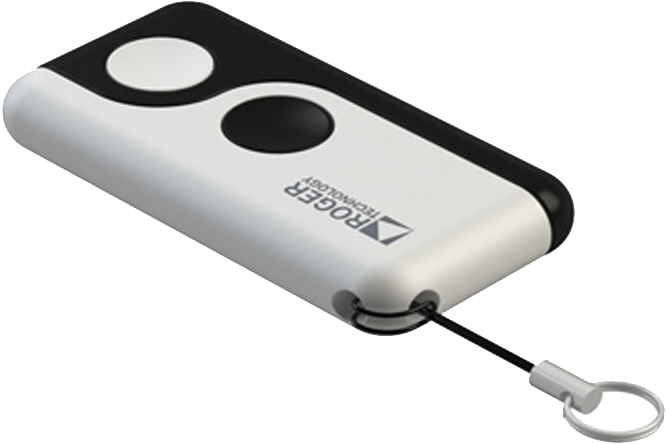

Dual code transmitter (modality fixed code or rolling code), 433,92 Mhz. 2 channels, with radio for copy.
Technical features
| Standard power: | 3V DC |
| Absorption: | 8mA |
| Operating temperature: | -10+55 °C |
| Number of channels: | 2 |
| Codification: |
Fix code or Rolling Code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92MHz |
| Number of combinations: | 65.536 (Fix code) - 4.294.967.296 (Rolling code) |
| Types of fixed codes clonable: | MANCHESTER,PCM, Max.64bit |
| Number of bits of the identification code: | 16 (Fix code) - 32 (Rolling code) |
| Number of bits transmitted: | 28 (Fix code) - 144 (Rolling code) |
| Radio for copy: | Yes |
| Maximum distance in open field: | 150m |
| Battery: | Mod "CR2032" 3V |
| Maximum dimension product in mm (L x W x H): |
34 x 66 x 10.4 |
