Product SKU: APC-P450-DC-EV-WF8-KP23

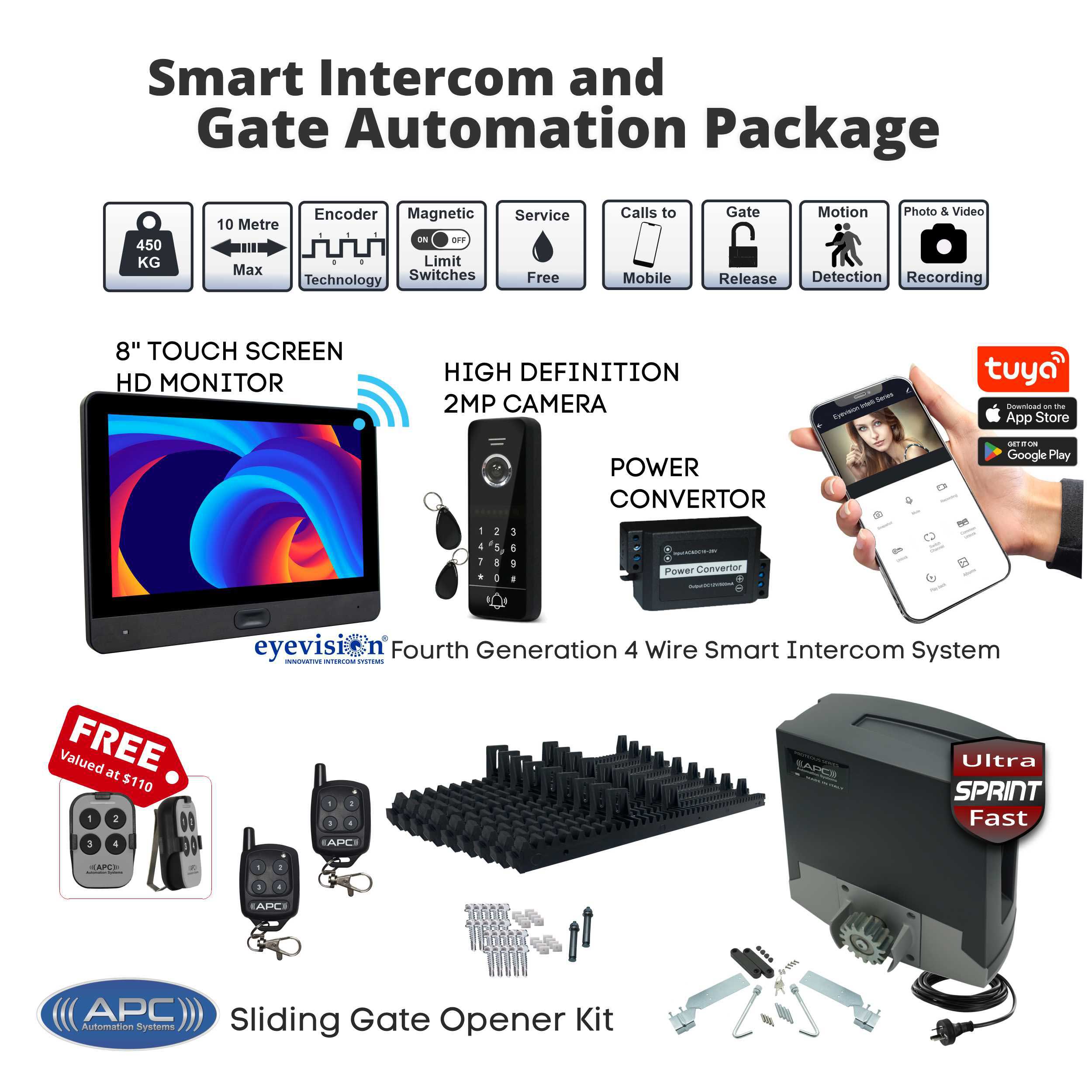

The Proteous 450 Sliding Gate Opener provides the ultimate in operational speed whilst supported by a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.
Ultra Fast 36 CM per Second Speed
70% Duty Cycle (Can operate for up to 42 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
450KG Capacity
Ultra long 10 metre gate capacity
Only 150mm Narrow Depth
Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
| Transformer | 24V AC |
| Rectification | In Housing Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 250 Watts |
| Maximum Gate Length | 10 Metres |
| Maximum Gate Weight | 450 KG |
| Speed | 36 cm/s |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Motor Duty Cycle | 70% |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 34V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
An optional battery backup system is available for the automation kit. The backup battery system will allow for continued use of the gate system and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up and ready for use. The system is supplied with the charger module along with the 1.3aH battery pack and is installed within the empty compartment of the Proteous system.
120° 2MP HD Intercom Camera Keypad (Swipe Tag Reader) Outdoor Station with 8" HD Monitor With Built-In WiFi For Smartphone APP
The Eyevision® Intelli HD Series four-wire intercom is a feature-rich state-of-the-art intercom system boasting every feature requested from an intercom system (and much more...).
Any visitor calls can be received by the APP on your smartphone or tablet along with the monitor simultaneously with a large feature set from the APP and the indoor monitor. No extra modules are required to connect to the internet as the indoor monitor has built-in Wi-Fi and is able to connect directly to your home's 2.4GHZ Wi-Fi connection.
Two outdoor stations can be connected for the front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home, allowing for the visitor's call to be answered from any station and transferred to a different station if required.
The Intelli series can have a common release connected directly to the monitor, allowing for simultaneous front gate - front door release, making it easier to let a guest in without switching between menus or running to the door.
System Capacity & Capabilities
Indoor Monitor Base Features
Special Features (Micro SD Required)
Resolution: 8'' (1024*600)
Power Consumption: Maximum 1200 mA
Power supply: External power supply DC 12-15V
Operating Temp: 0~+50°C
SD Card Requirement: 2GB~128GB Class 10 micro SD Read/Write 10MB/S Min.
System Capacity: 6 indoor monitors and 2 outdoor stations
For more details and multi-device advanced system cabling topology, Please check the installation manual.
(IC Tags & Power Adapter Supplied)
A fourth-generation HD intercom system is an advanced communication system that utilizes high-definition video and audio communication technology. These systems can be used in residential, commercial, and industrial settings to enhance security, manage access control, and enable seamless communication with visitors on-premises. With This intercom system, you will get the latest advancements in intercom technology, including improved video quality, enhanced connectivity, and additional features such as mobile app integration and remote secure access management capabilities.
* Suitable with Eyevision® Intelli HD Series Indoor HD Monitor Options
(EV-HD-WF8, V-HD-WF8-WH, V-HD-WF10)
* Click here to see Eyevision® Intelli HD Series Indoor HD Monitor Options and Packages
| 120° Vide Angle View | 2MP HD Camera | Speaker and Microphone | Keypad | Call Button | Night Vision | Motion Detection | IC Tag Reader | Weatherproof |
The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing, and the guest may be standing to its left or right side.
The wedge is a universal mount allowing for both left-facing and right-facing setups.
Camera Sensor: 1/3" CMOS Camera
Viewing Angle: 120°
Resolution: 2 MP / HD
Night Viewing: IR LED
Operating Temperature: -0°C to +50°C
Operating Voltage: 12-15V DC
Operating Current: 30mA Standby 70mA Operational
Card Type: IC Card/Tag (KP 23-HD Only)
IP Rating: IP65
